Rave Off Road

2022+ Tundra Complete TRD Pro Grille Kit

2022+ Tundra Complete TRD Pro Grille Kit

Regular price $720.00
Regular price Sale price $720.00
Sale Sold out
Shipping calculated at checkout.

Not sure which options to purchase? Check out our TRD Pro Grille Buying Guide Here.

With over 75 combos available for the 2022+ Tundra, we offer Tundra enthusiasts a unique and complete kit that is sure to take your truck to the next level of style and functionality. This all-in-one bundle equips your Tundra with everything you need to enhance its appearance and performance. From the distinctive Heritage TOYOTA lettering to the iconic 3 grille-mounted marker lights and integrated light bar, this kit is sure to add a new aggressive personality to your truck.

We've included wiring components, a convenient Light Bar Dash Switch, and a Front Camera Transfer Bracket for a hassle-free installation. This kit is compatible with all 2022+ Tundra models and trims, ensuring a perfect fit for SR, SR5, Limited, Platinum, 1794, Capstone, TRD Pro, TRD Off Road, TRD Sport. This kit fits all 2022+ Tundras regardless of what configuration you've come home with.

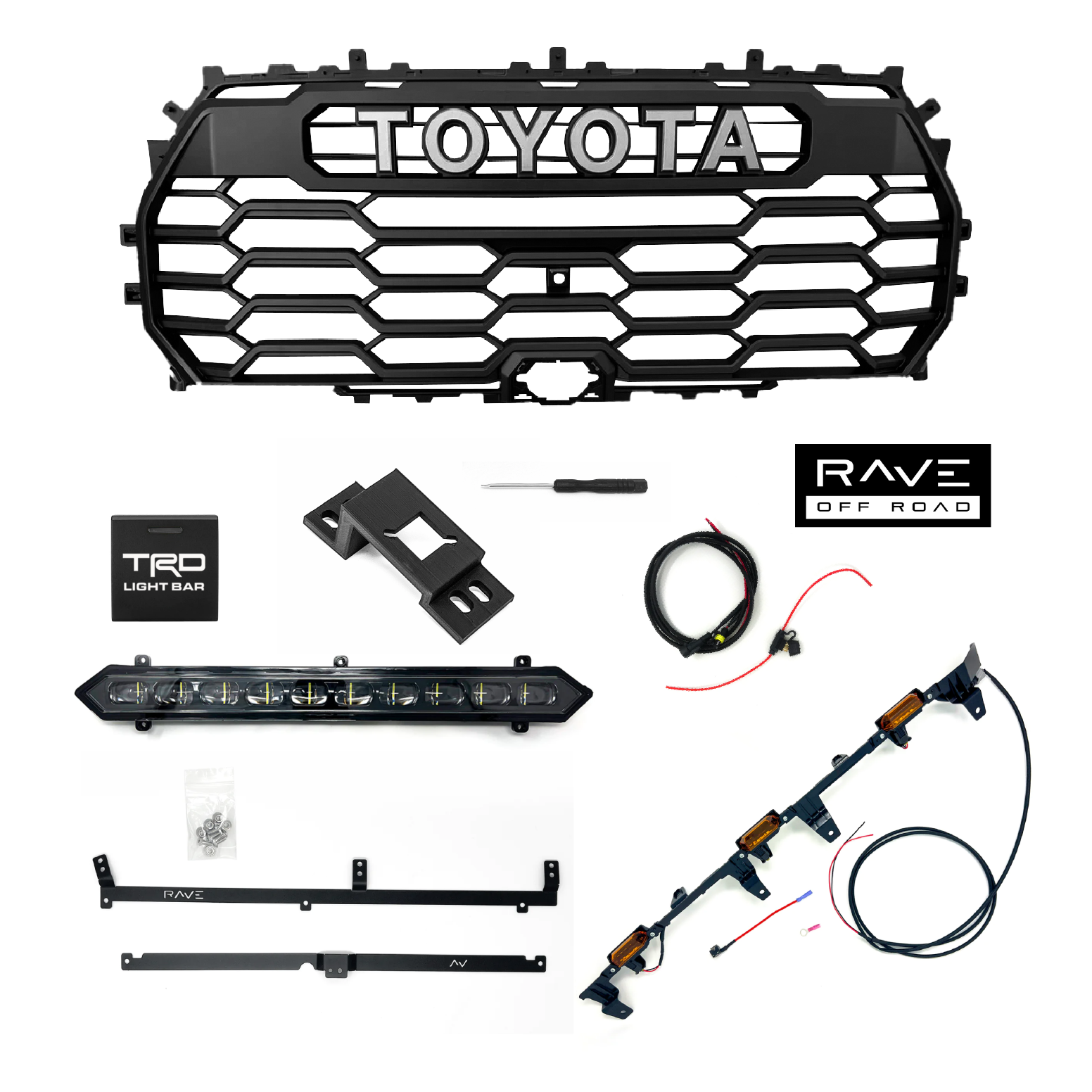

Package Includes:

  1. Heritage / TRD Pro Style Grille Insert: Elevate your Tundra's appearance with a grille insert that embodies the iconic TRD Pro and Heritage style.
  2. LED Marker Lights: Enhance safety, style and visibility with LED Marker Lights, adding an unmistakable look to your front grille.
  3. Grille-Mounted Light Bar: Illuminate your path with a grille-integrated light bar, perfect for off-road adventures and nighttime driving.
  4. Light Bar Dash Switch: Control the integrated light bar effortlessly with the included premium dash switch, adding an OEM look and convenience to your driving experience.
  5. Front Camera Transfer Bracket: Maintain the functionality of your front camera with the transfer bracket included in the kit.
  6. Wire Harnesses: We've included wire harnesses for each accessory to provide an easier installation.

Compatibility:

  • Compatible with all 2022+ Toyota Tundra models and trims, including SR5, Limited, Platinum, 1794, Capstone, TRD Pro, TRD Off Road, TRD Sport, and more.

Package Includes:

  • Heritage / TRD Pro Style Grille Insert
  • LED Marker Lights
  • Grille-Mounted Light Bar
  • Wiring Harnesses
  • Light Bar Dash Switch
  • Front Camera Transfer Bracket

What is the difference between OEM Tundra TRD Pro Grille and the RAVE TRD Pro Grille?


OEM Grille

RAVE Grille
Finish Satin Black w/ Subtle Texture Flat Black

Marker Lights

RAVE Lights

or

OEM Lights


RAVE Lights
Camera Bracket

TRD PRO bracket

Bracket from TRD Off Road trim equipped with a front facing camera.

Light Bar Options

Rave

Diode Dynamics

Heretic Studio

Baja Designs

Rave Light Bar (direct fit)

Diode Dynamics


OEM Grille on SR5 (no front camera) Install By Mark Brenner

Aftermarket Rave Grille on Limited (with front camera) Install by Trails and Trucks

2022+ Tundra TRD Pro Grille Insert

  • TSS Compatible
  • Front Camera Compatible
  • Matte Black Finish
  • Letters Included

LED Marker Lights

  • 3 DOT / Marker Lights at the top of the Grille Insert
  • Pre-installed on the RAVE grille, OEM kit requires very simple mounting. Then Just plug into 12v power.
  • Protected by 2A fuse-tap (included)
  • Available in amber or white. Also available in stealth blackout lens.
  • 12V
  • OEM TRD Pro style



RAVE 20" TRD Pro Style Grille-Mounted Light Bar

  • 12V
  • 24W
  • 2A
  • Light Pattern: Projection
  • Lumens: 4100 (clear lens)
  • Color Temperature: 5700 Cool White or 3000 Yellow
  • 2yr Warranty

DIODE DYNAMICS 18" Grille-Mounted Light Bar (OEM Kit Only)

  • 12V
  • 79.8W
  • 5.7A
  • Light Pattern: Combo or Driving
  • RAW Lumens: 6,840
  • Measured Lumens: 4,200
  • Color Temperature: 6000 Cool White
  • 8yr Warranty
  • Made in Missouri, USA
  • Wiring Diagram

HERETIC STUDIO 20" Grille-Mounted Light Bar (OEM Kit Only)

  • 12V
  • 120W at peak 13.8V
  • 11.3A peak at 13.8V
  • Light Pattern: Combo
  • Lumens: 14,520
  • Colors: White or Amber
  • Lifetime Warranty
  • Made in Utah, USA

BAJA DESIGNS S8 20" Grille-Mounted Light Bar (OEM Kit Only)

  • 12V
  • 120W at peak 13.8V
  • 11.3A peak at 13.8V
  • Light Pattern: Combo
  • Lumens: 12,700
  • Colors: White or Amber
  • Lifetime Warranty
  • DRL Feature

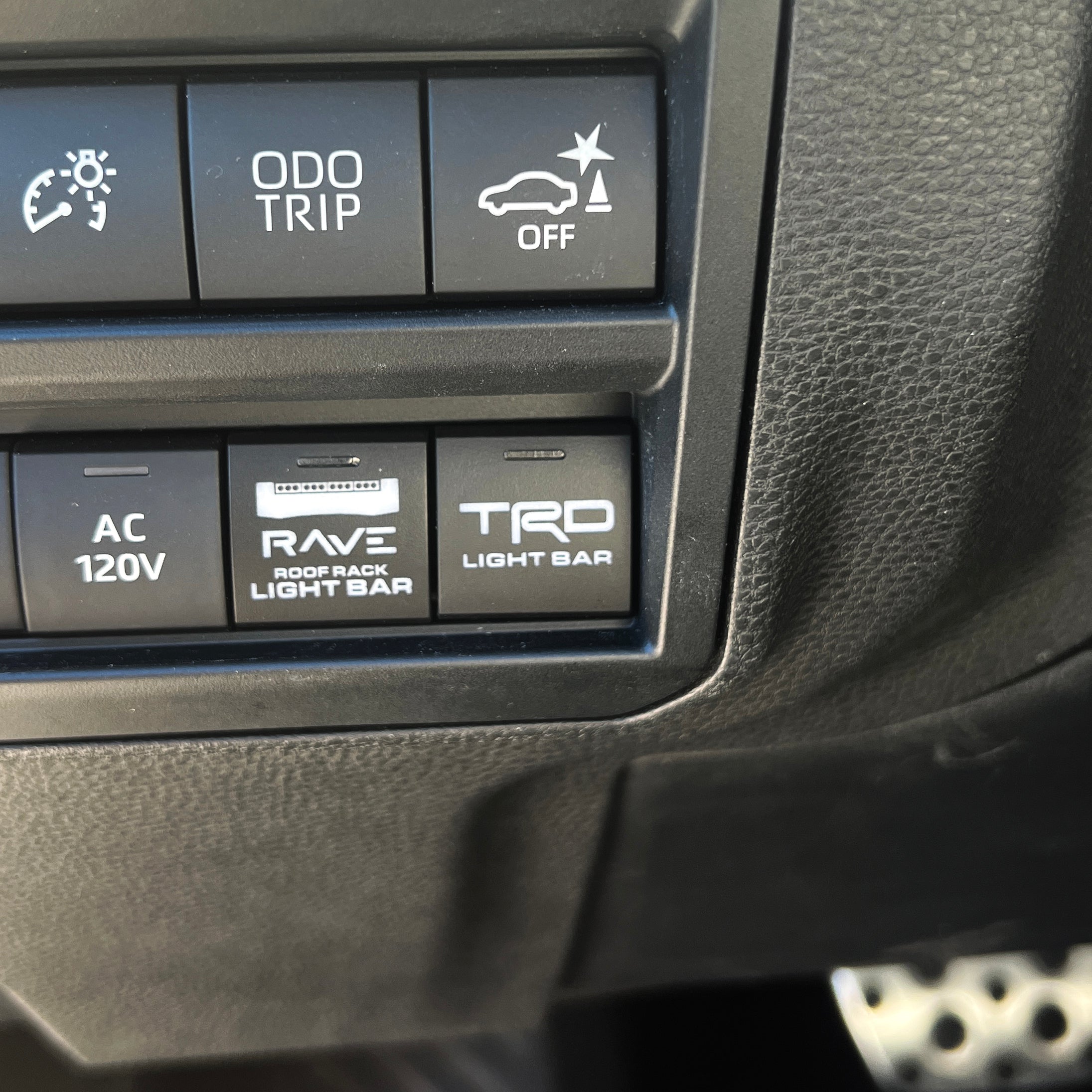

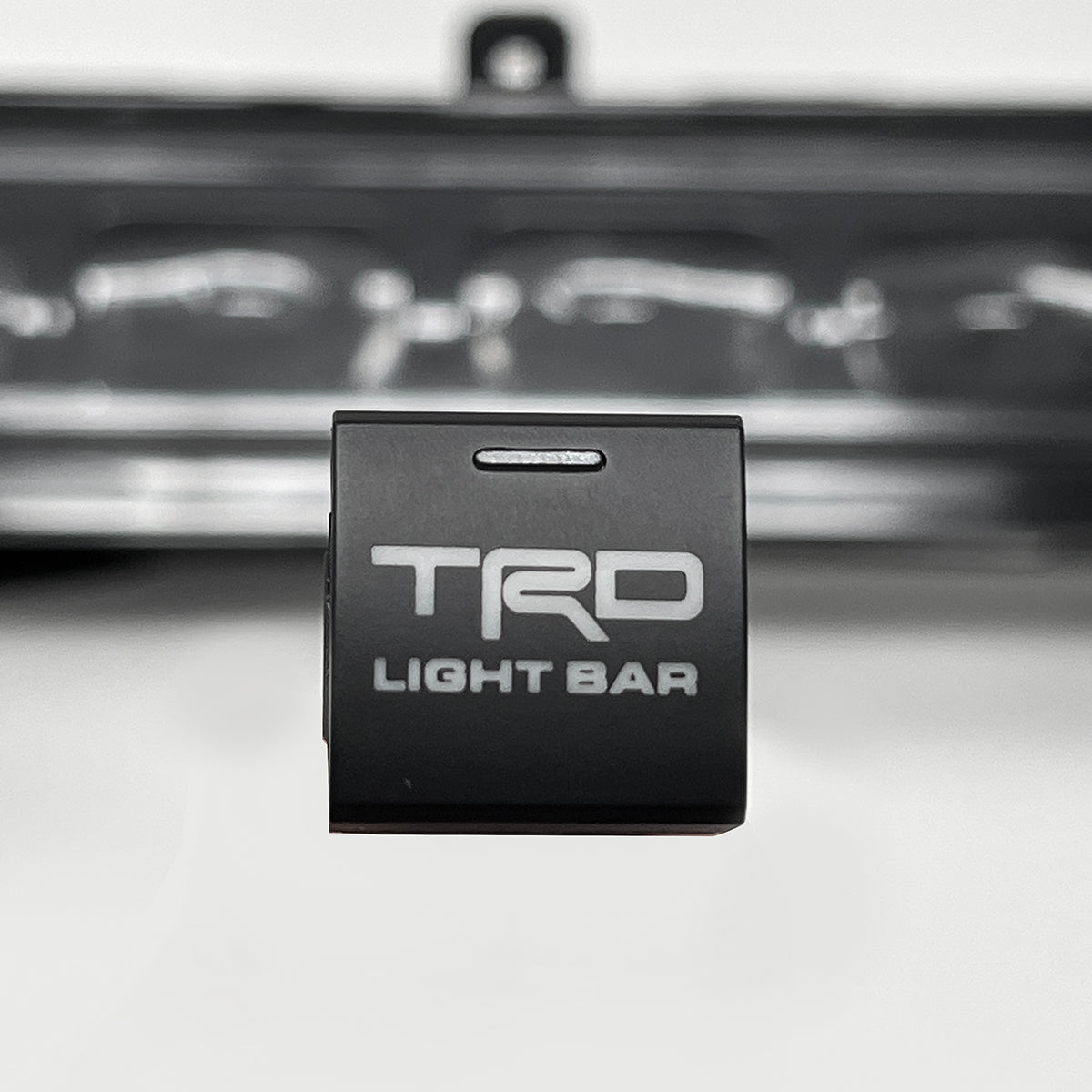

TRD Light Bar Dash Switch

  • Direct fit in blank slot in the switch console to the left of the steering wheel.
  • Blue or White backlight engages with dash lights at night. Please specify in order notes at checkout if you have a preference on color of dash switch.

Current Lead Times

RAVE Grilles:  In Stock

OEM Grilles: In Stock

Heretic Options: Varies 0-6 weeks

Diode Dynamics Options: Typically in Stock

Baja Designs: Varies 0-4 weeks

Rave White Light Bar: In Stock

Rave Amber Light Bar: 6-8 weeks

Amber Marker Lights: 4-6 weeks

All other Marker Lights: In stock

Instructions

OEM Bracket Instructions

Rave Light Bar Wire Diagram

Marker Lights Wire Diagram

Grille Removal Instructions

Diode Dynamics Wiring Diagram

T6 Driver included for front camera bracket swap

Please note that 3rd party aftermarket parts, lighting, and accessories designed for the OEM Toyota grille may not fit on the RAVE grille as they have different mounting points.

The photos included in this product listing may or may not represent items included in the combo or variant you purchase. Items included in your package may look or function different according to the selection made at checkout.
