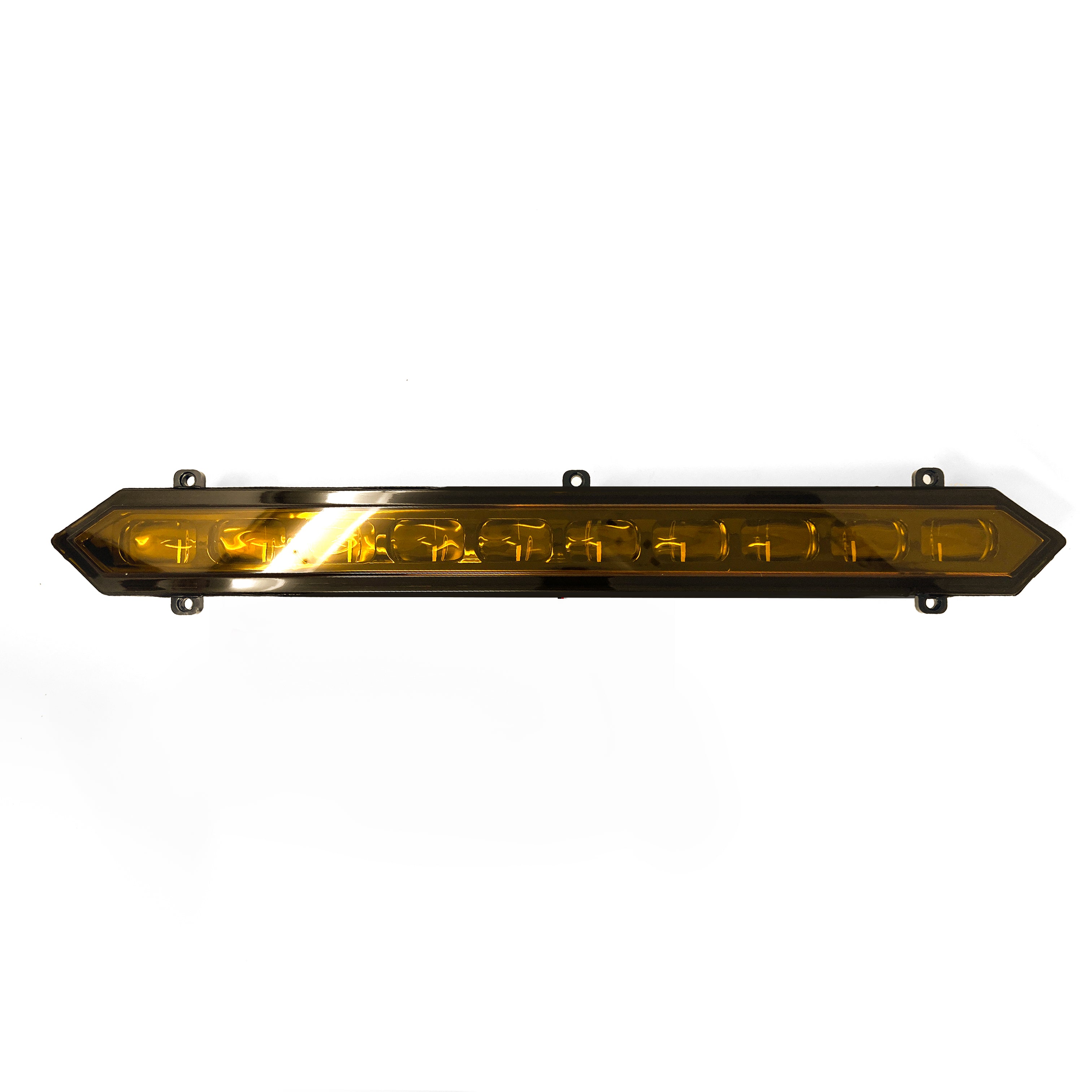

TRD Pro Grille Light Bar for 2023+ Sequoia

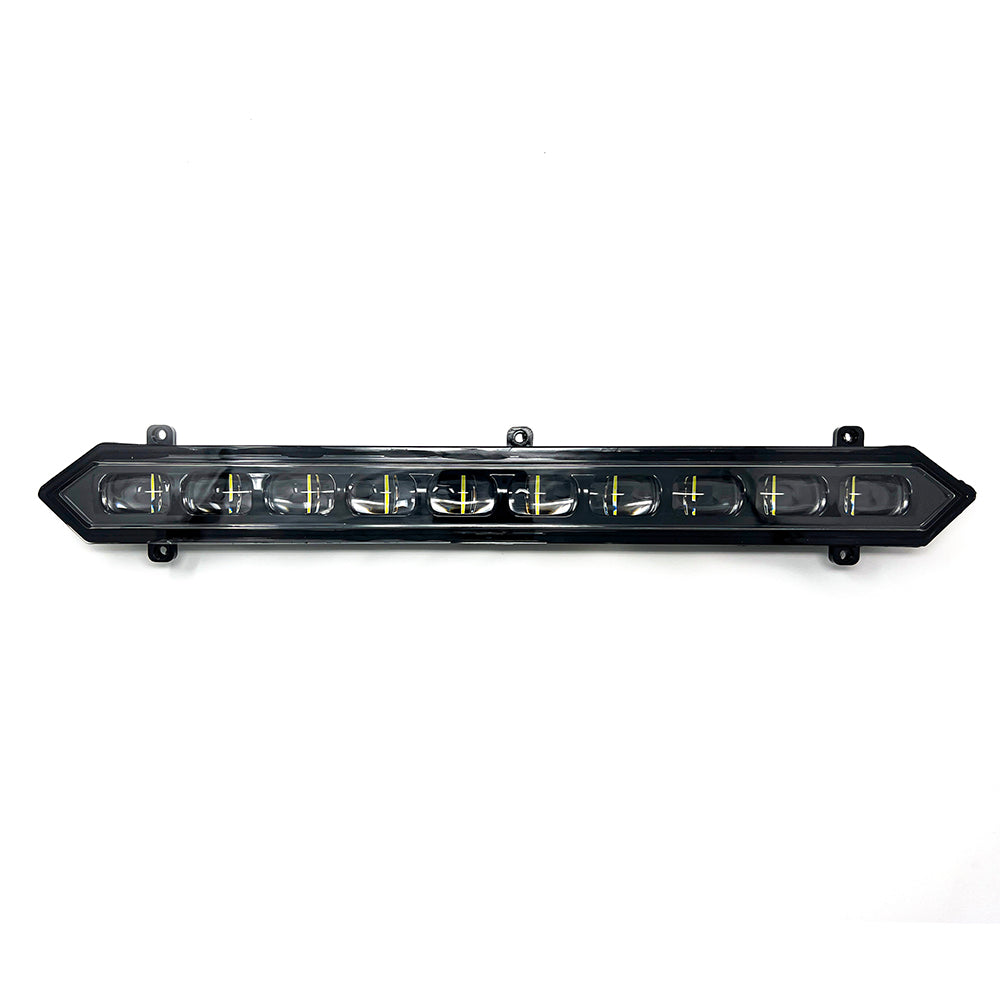

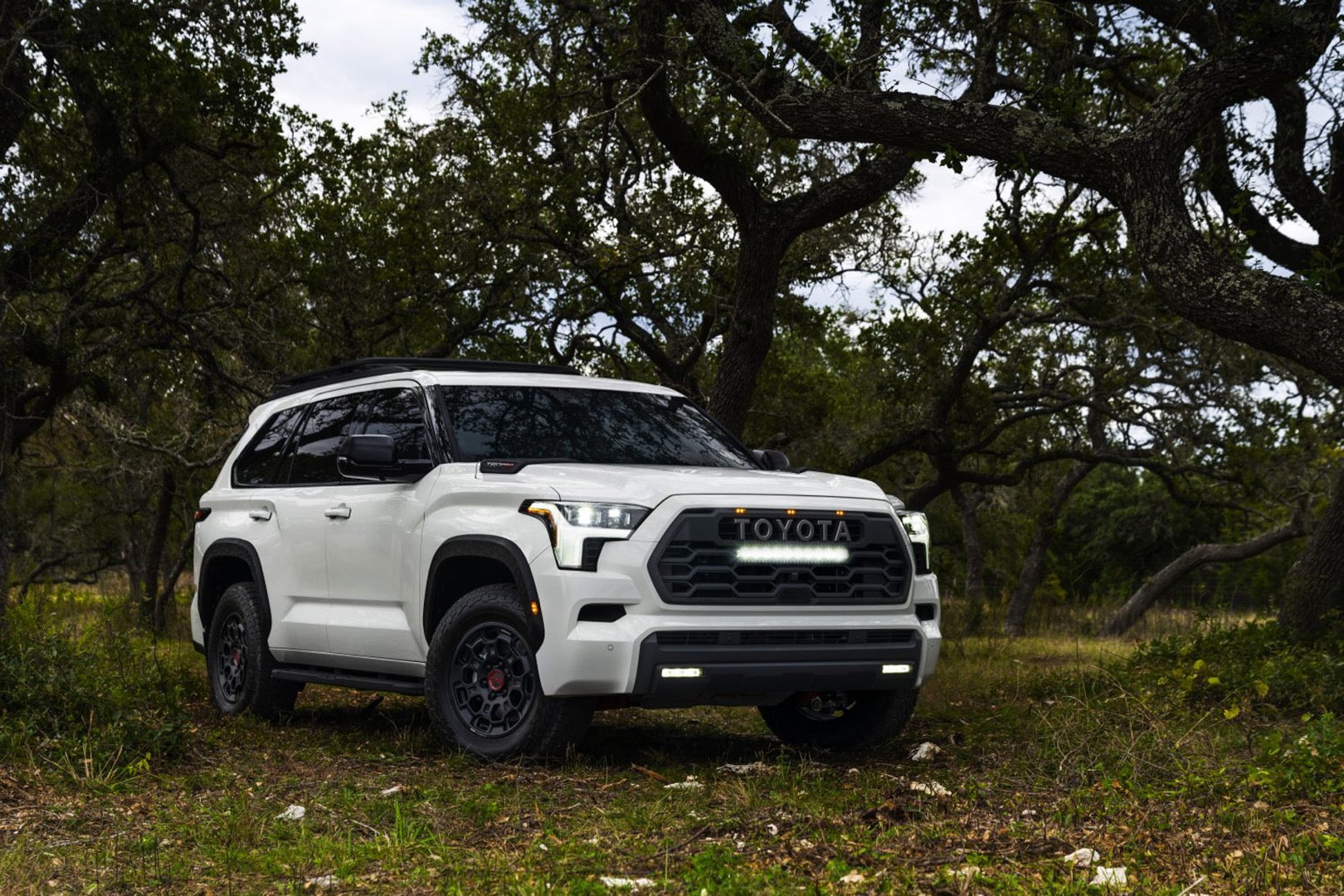

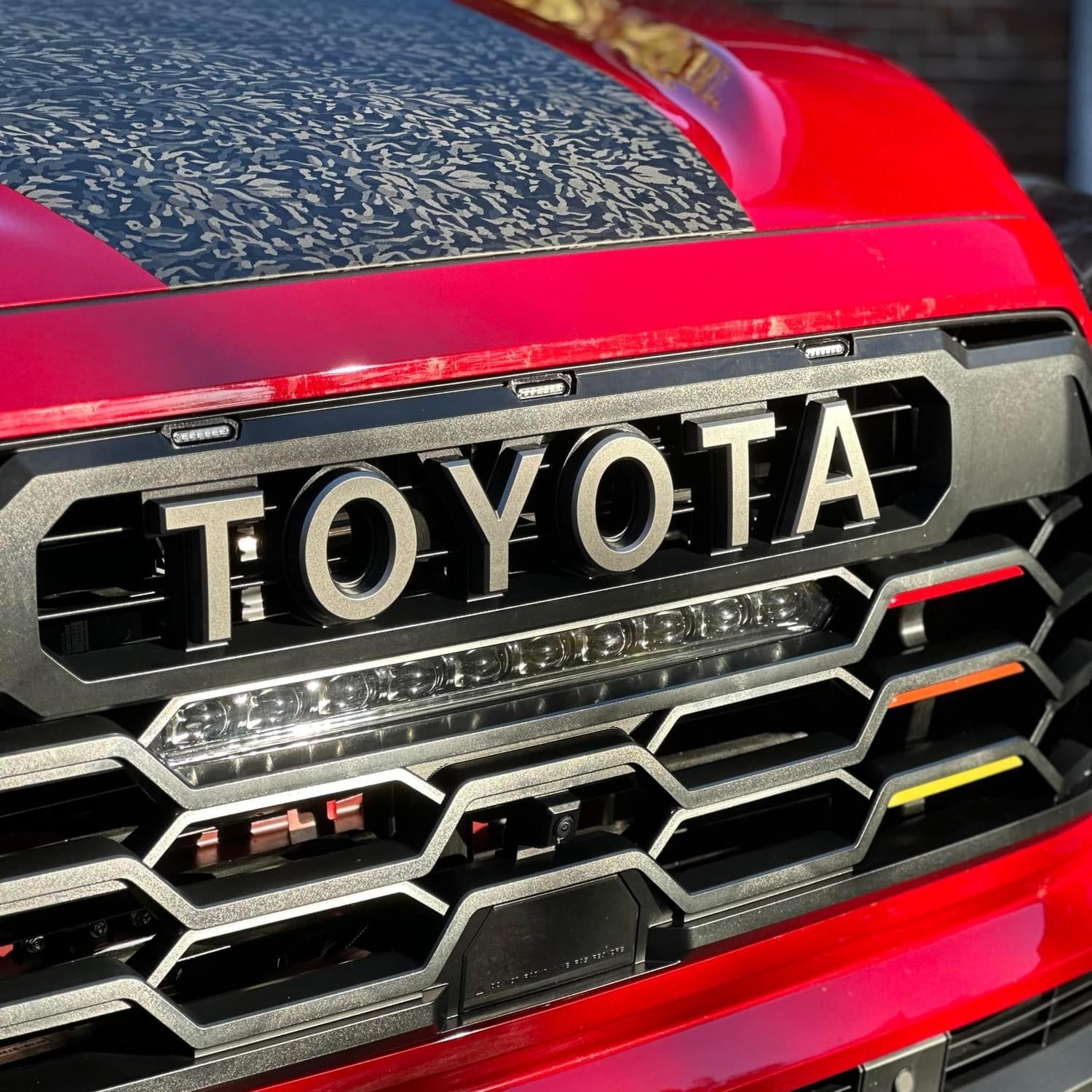

Our 20" Projection-Beam Grille Light Bar out performs the OEM light bar by hecka lumens. It's weather-proof sealed and easily mounts to light bar void found in the front of the TRD Heritage Pro Grille.

Fits: 2023+ Sequoia and 2022+ Tundra

Install: Bolt-on for aftermarket grille. Got an OEM grille? We have an OEM grille bracket available for pre-order here.

Voltage: 12V

Beam / Pattern: Projection, Low-Flood

Color: Cool White - 5700k

Wire Diagram below

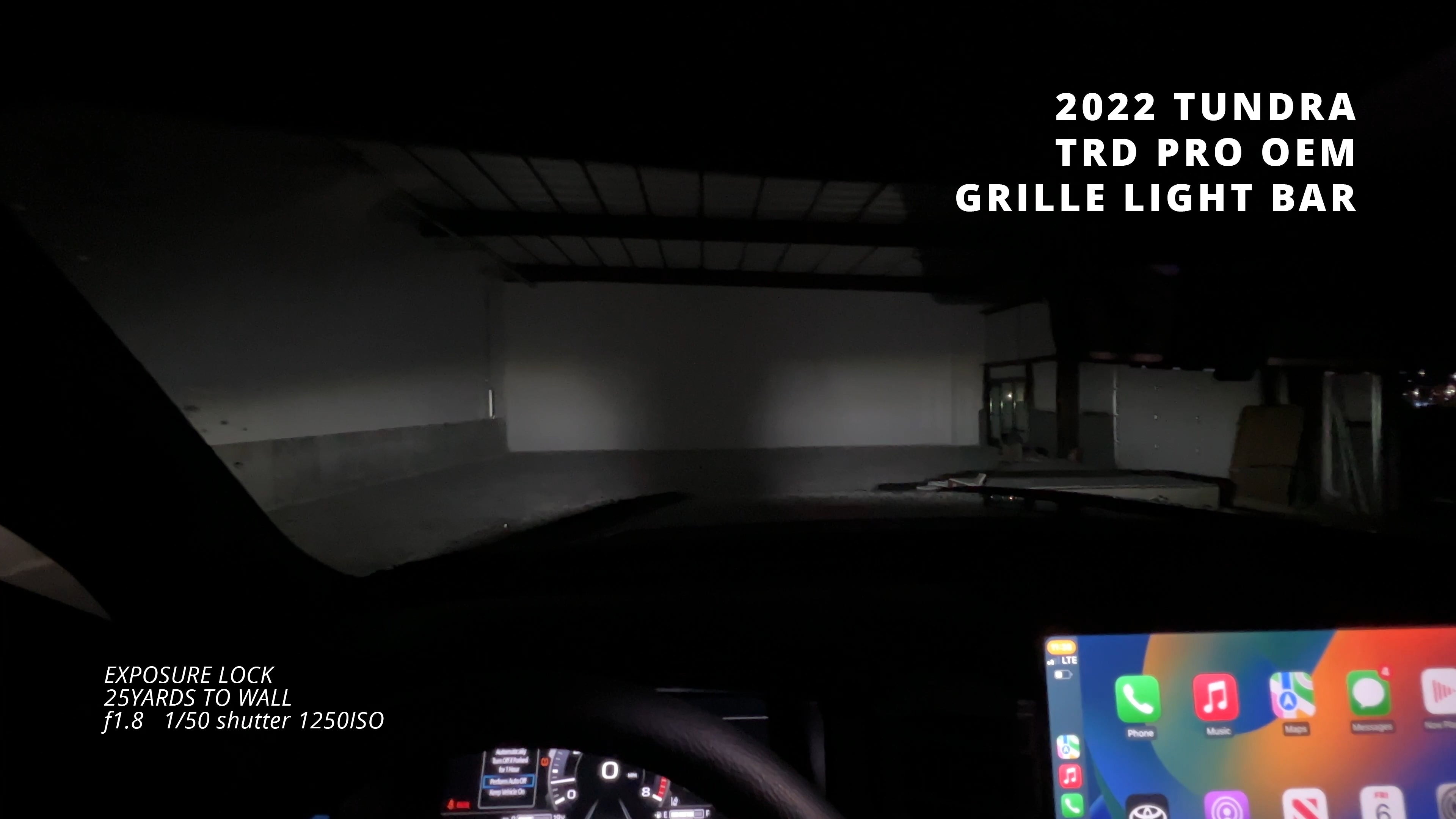

See our light output comparison photos for the 2022+ Sequoia here.

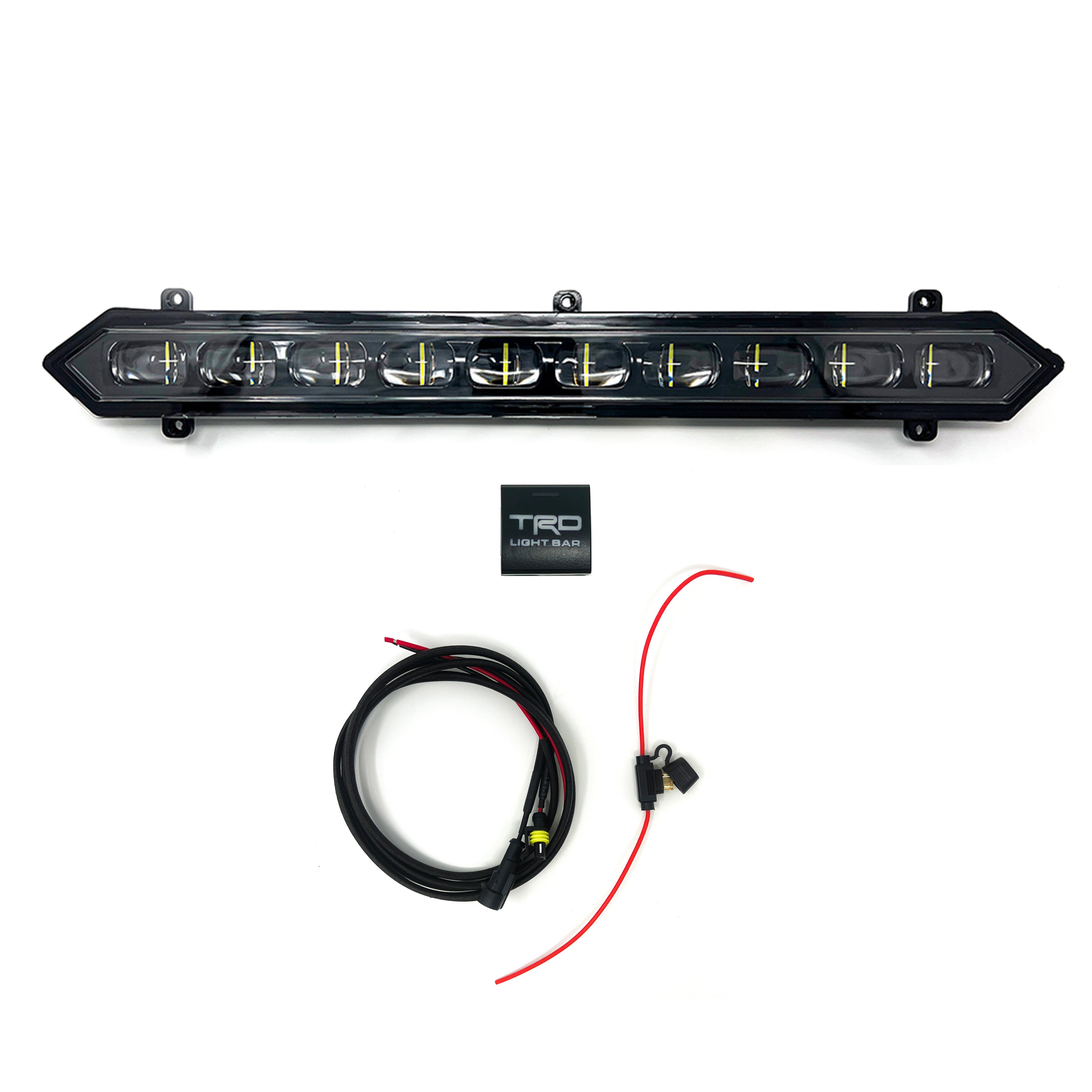

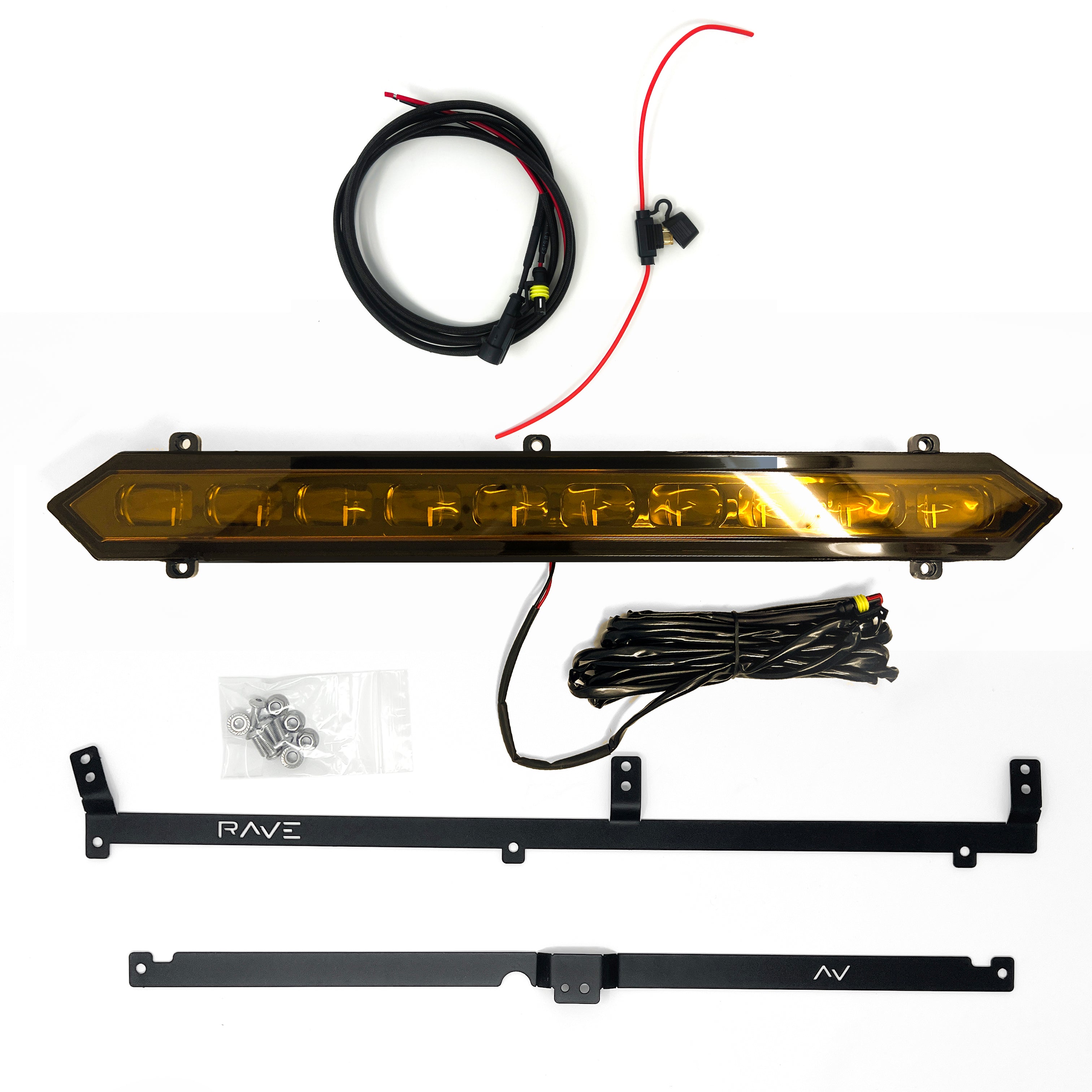

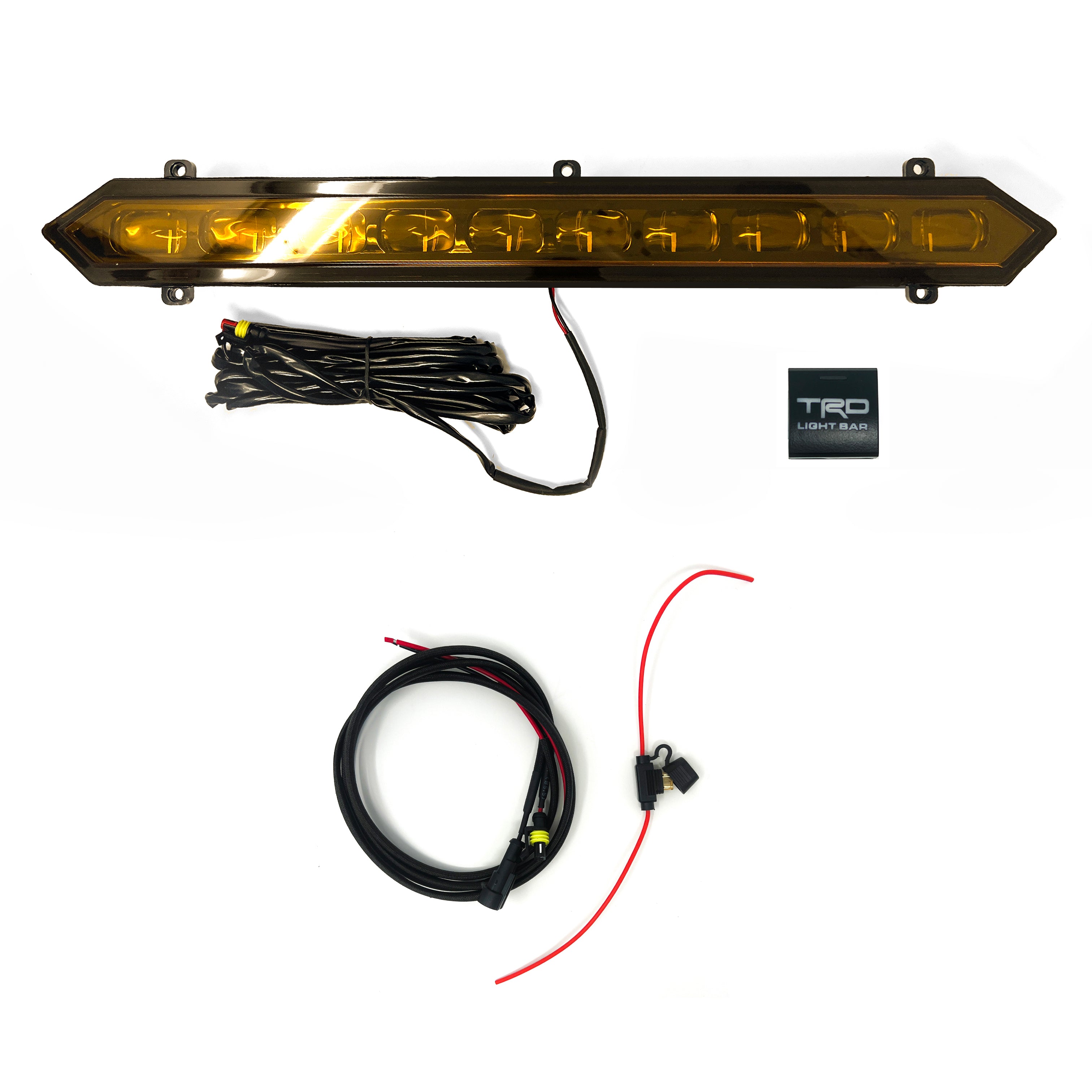

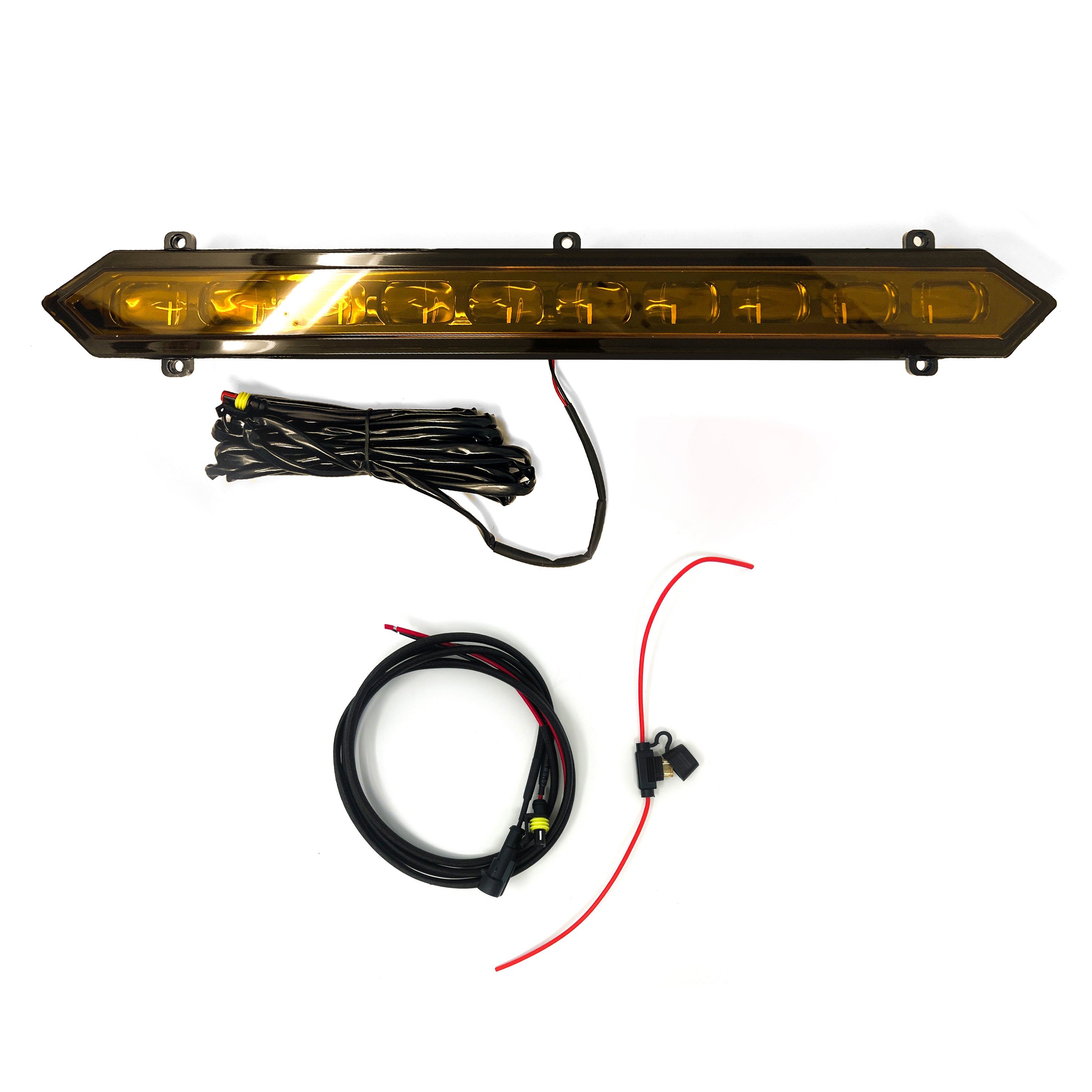

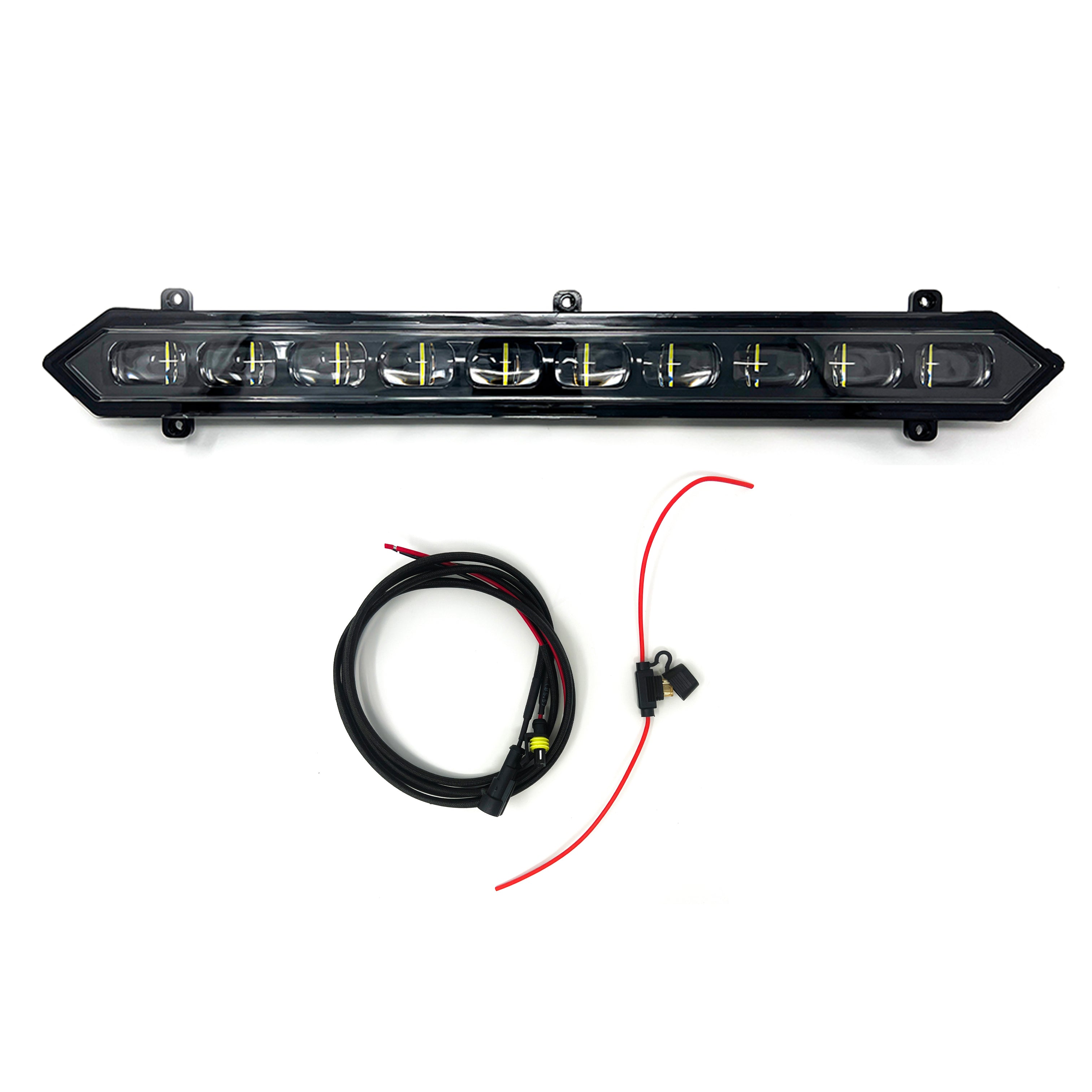

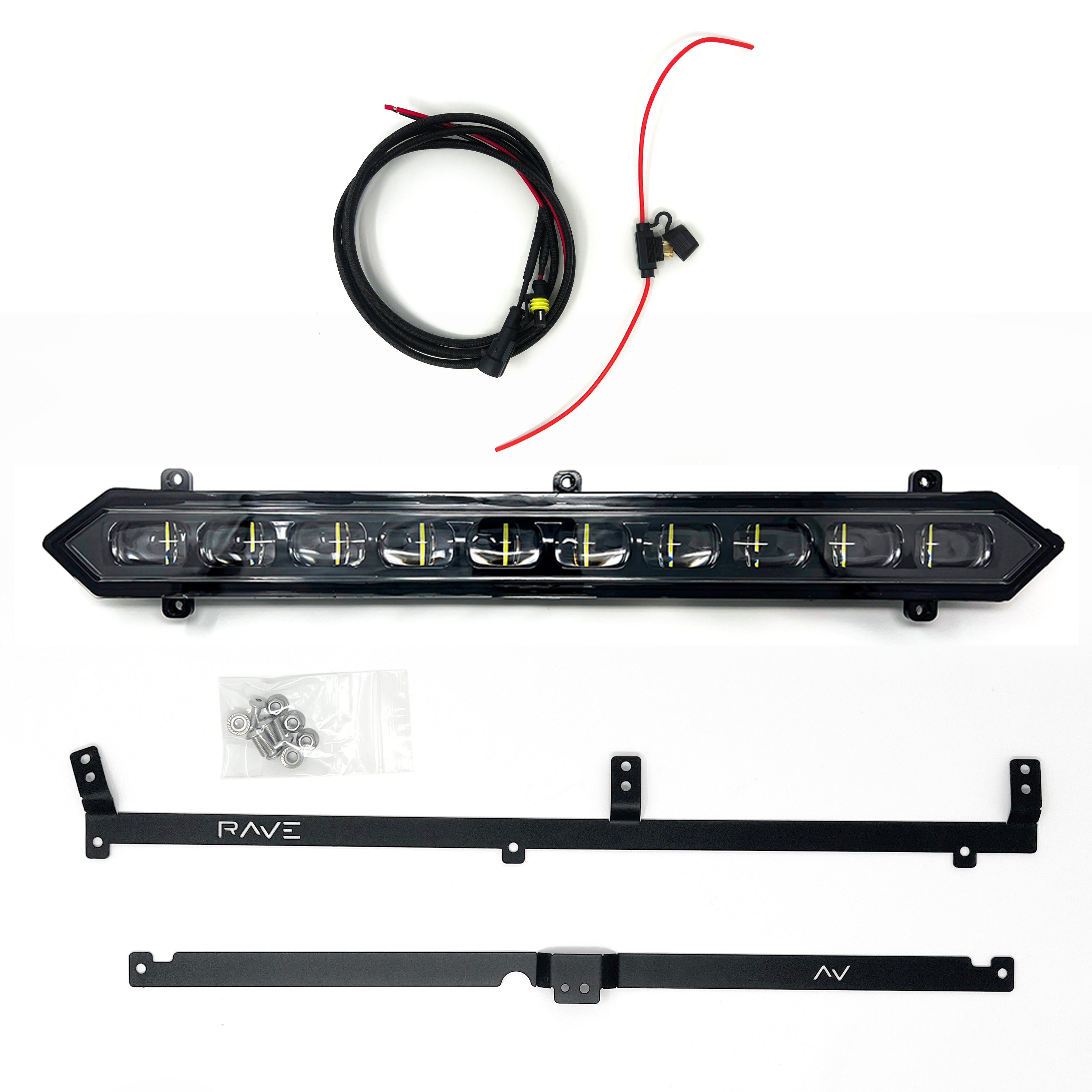

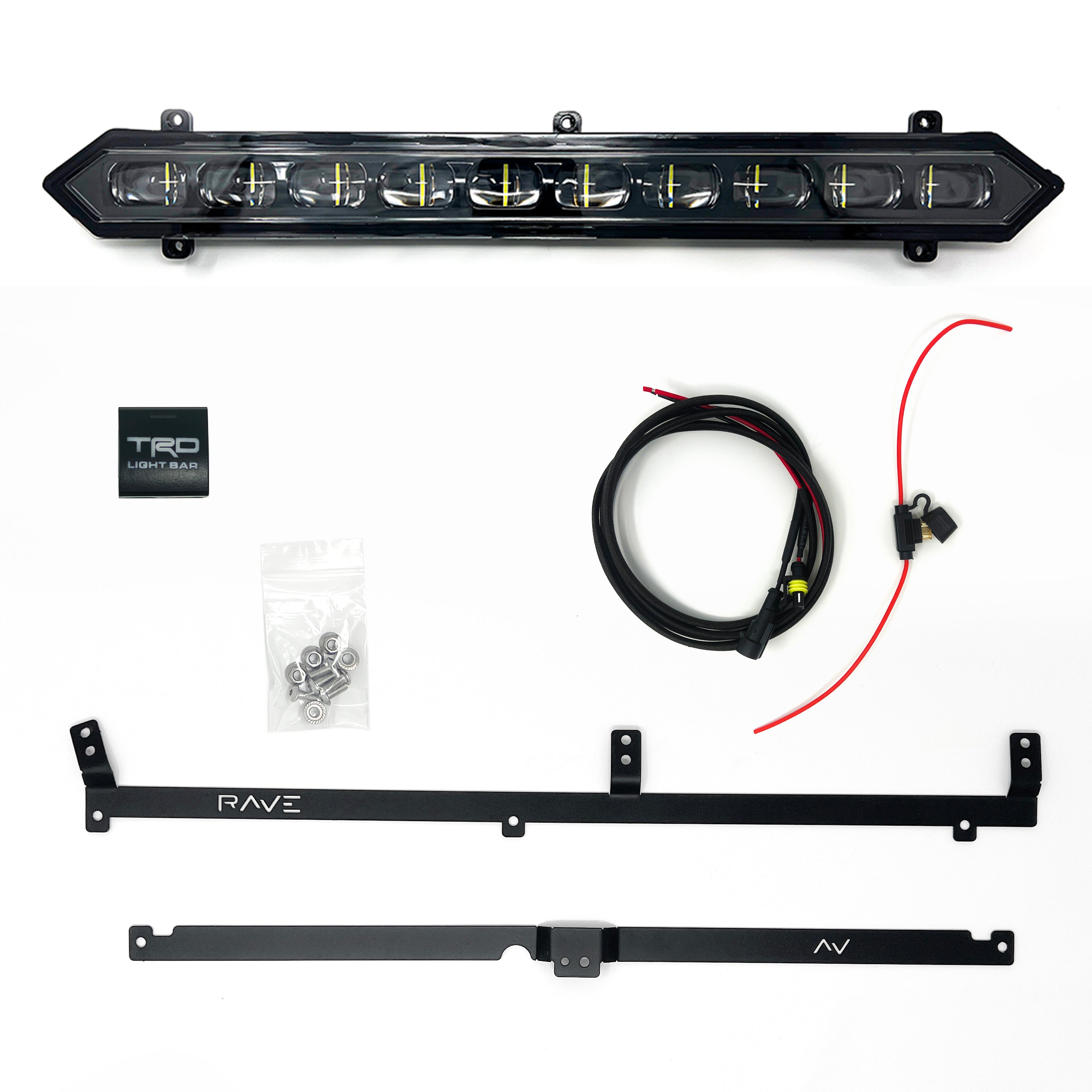

Wire harness Included: convenient waterproof connectors for easy future grille removal, extends the wire so that it can reach through the firewall and into the dash button cluster, and adds an in-line fuse to protect the circuit when not using an auxiliary fuse box, relay, or other fuse-protected circuit product.

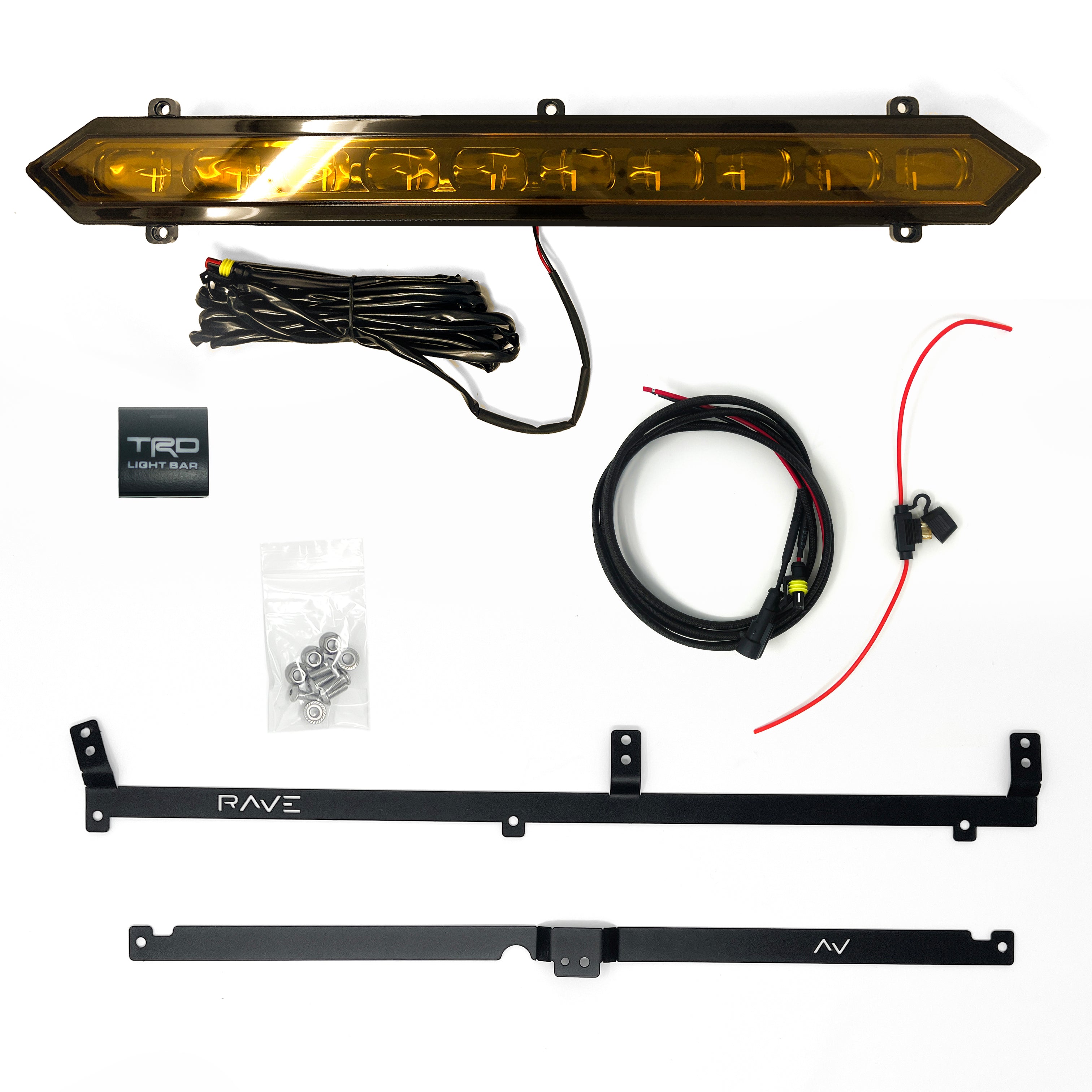

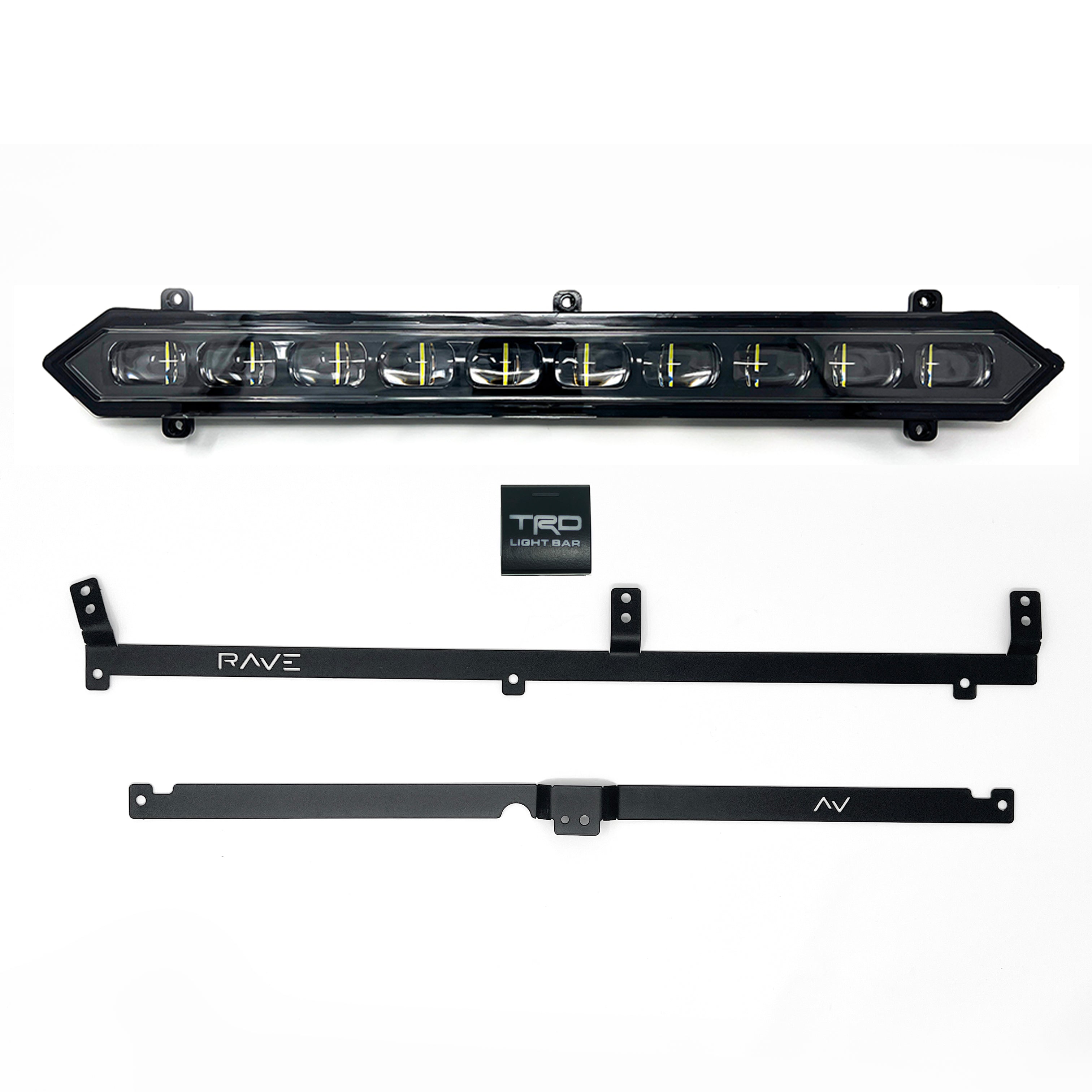

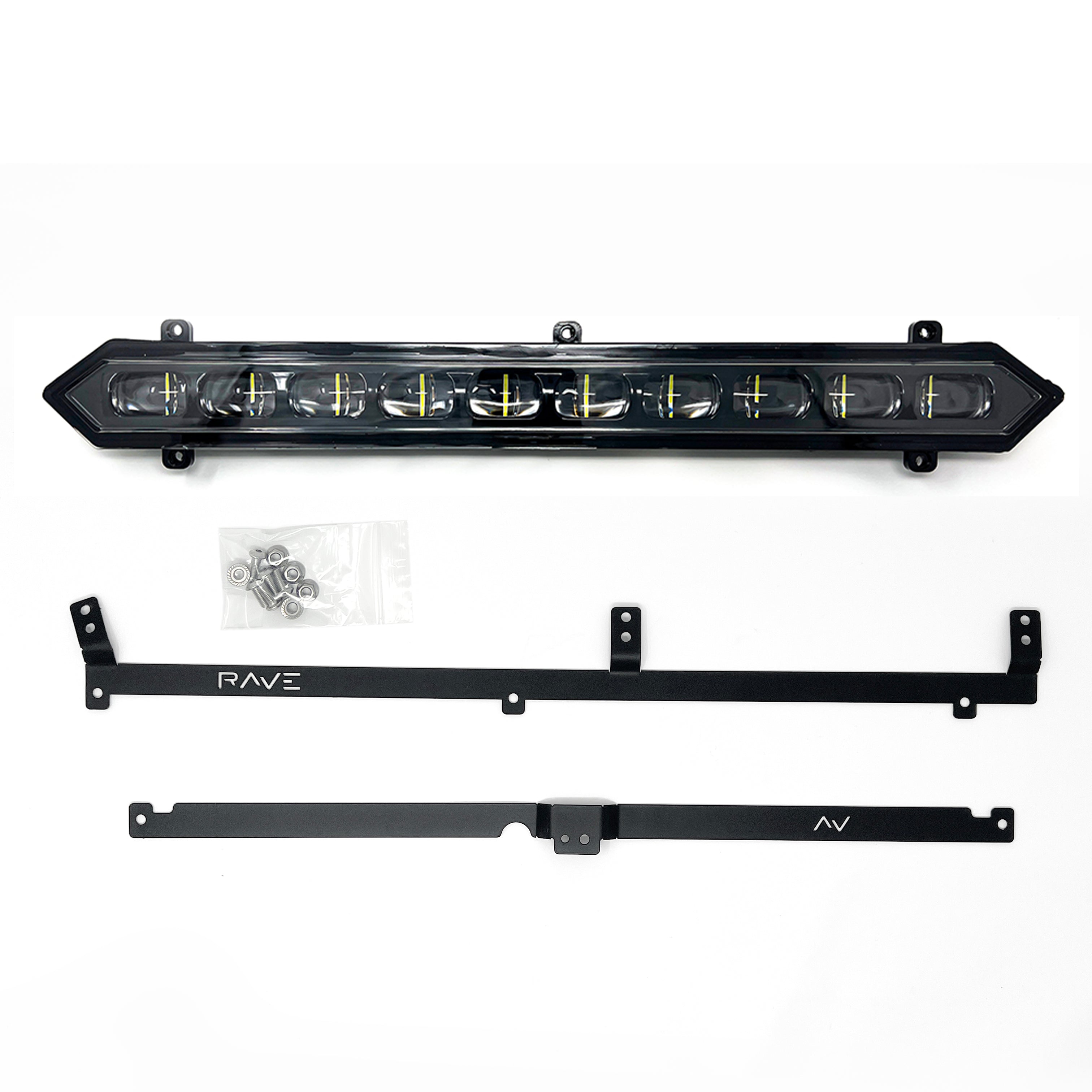

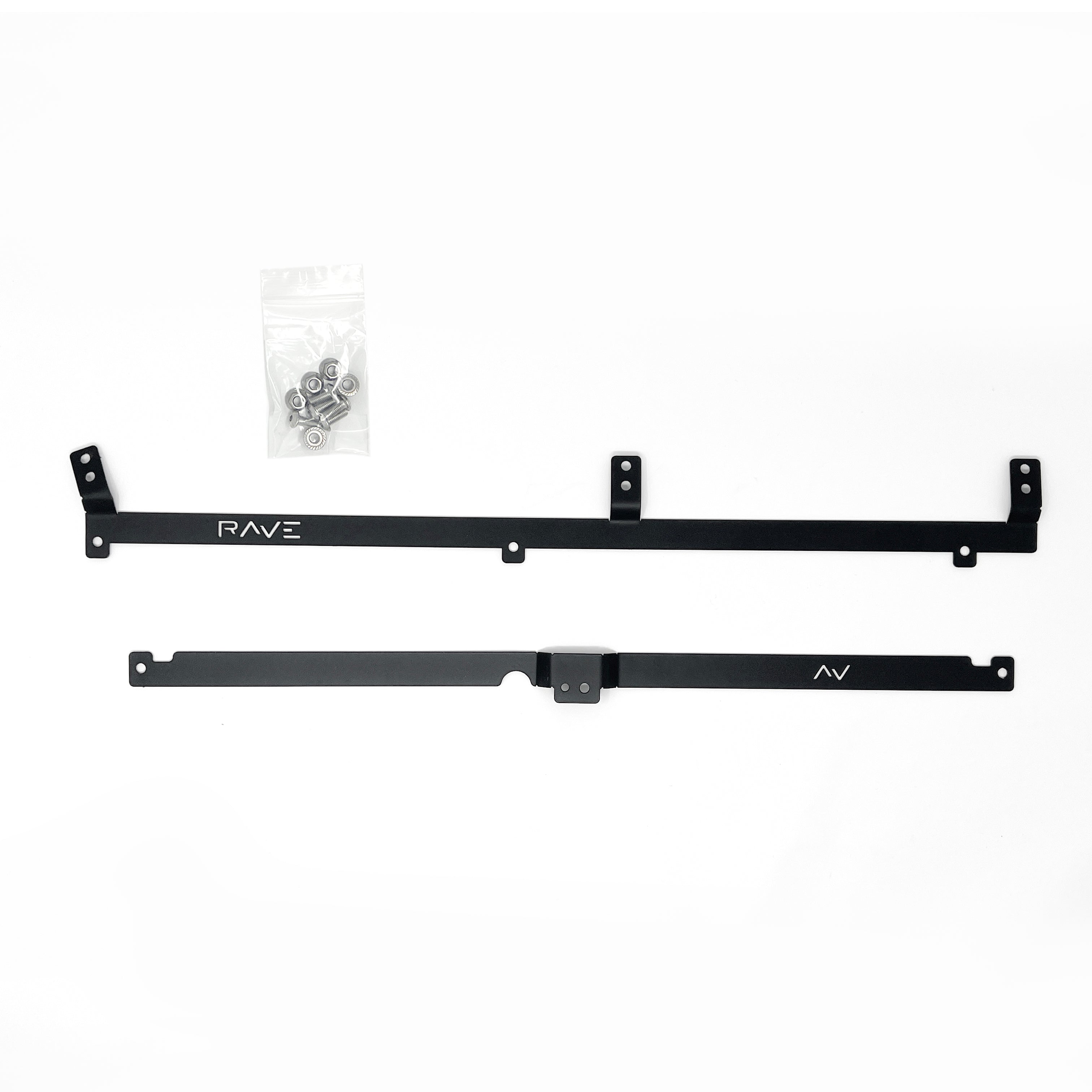

Bracket Instructions

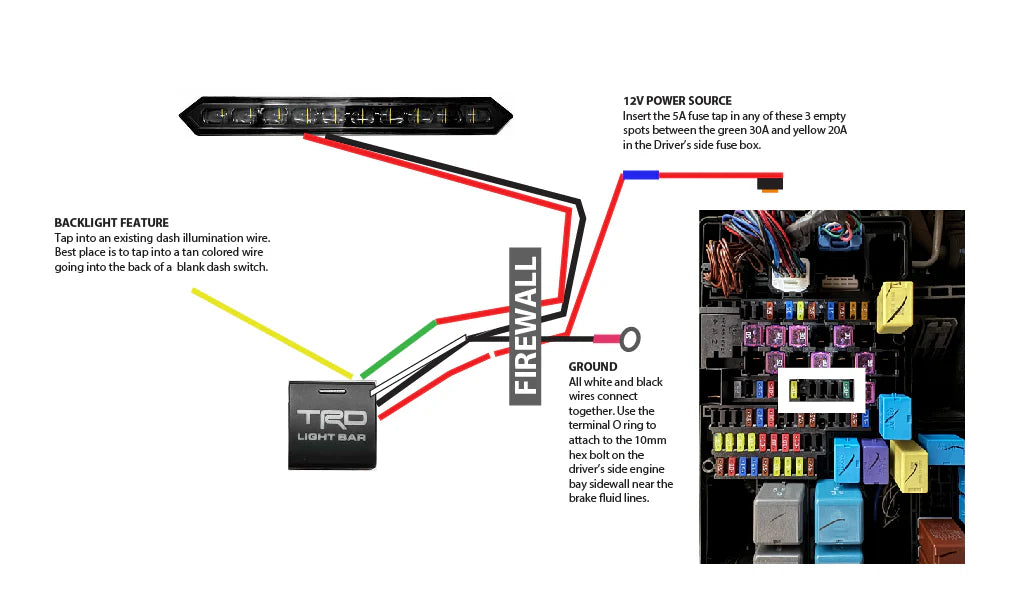

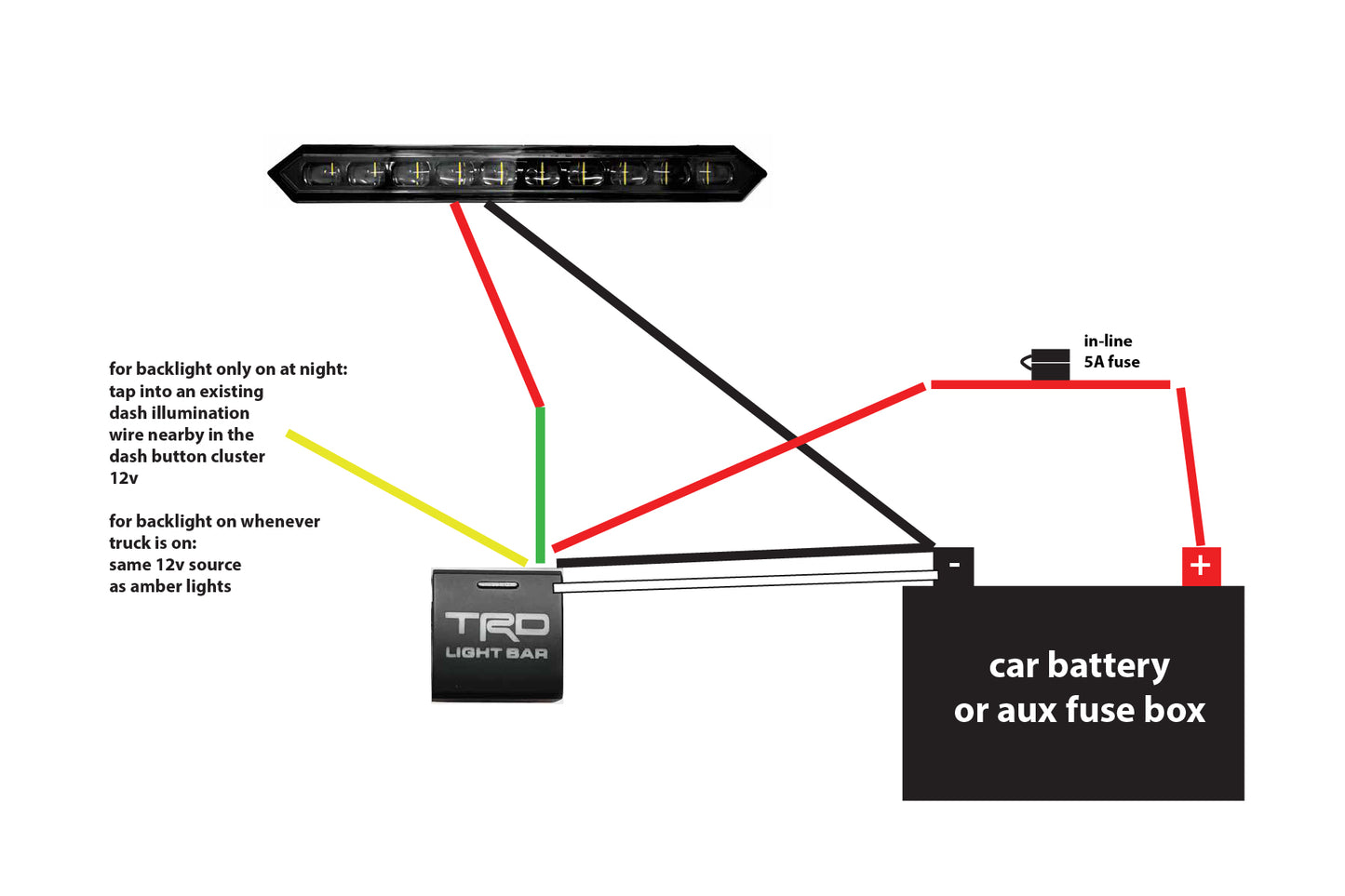

Wire Diagram
