Diode Dynamics TRD Pro Grille Light Bar 2022+ Tundra

Features

• Direct fitment on 2022+ Toyota Tundra.
• Allows you to mount one 18" light bar in the TRD Pro grille.
• Compatible with TRD Pro Grille conversions.
• CAD-designed for perfect fitment and OEM-like appearance.
• Utilizes existing mounting points for easy installation - no cutting or drilling required.
• Highly durable powder coated steel construction.

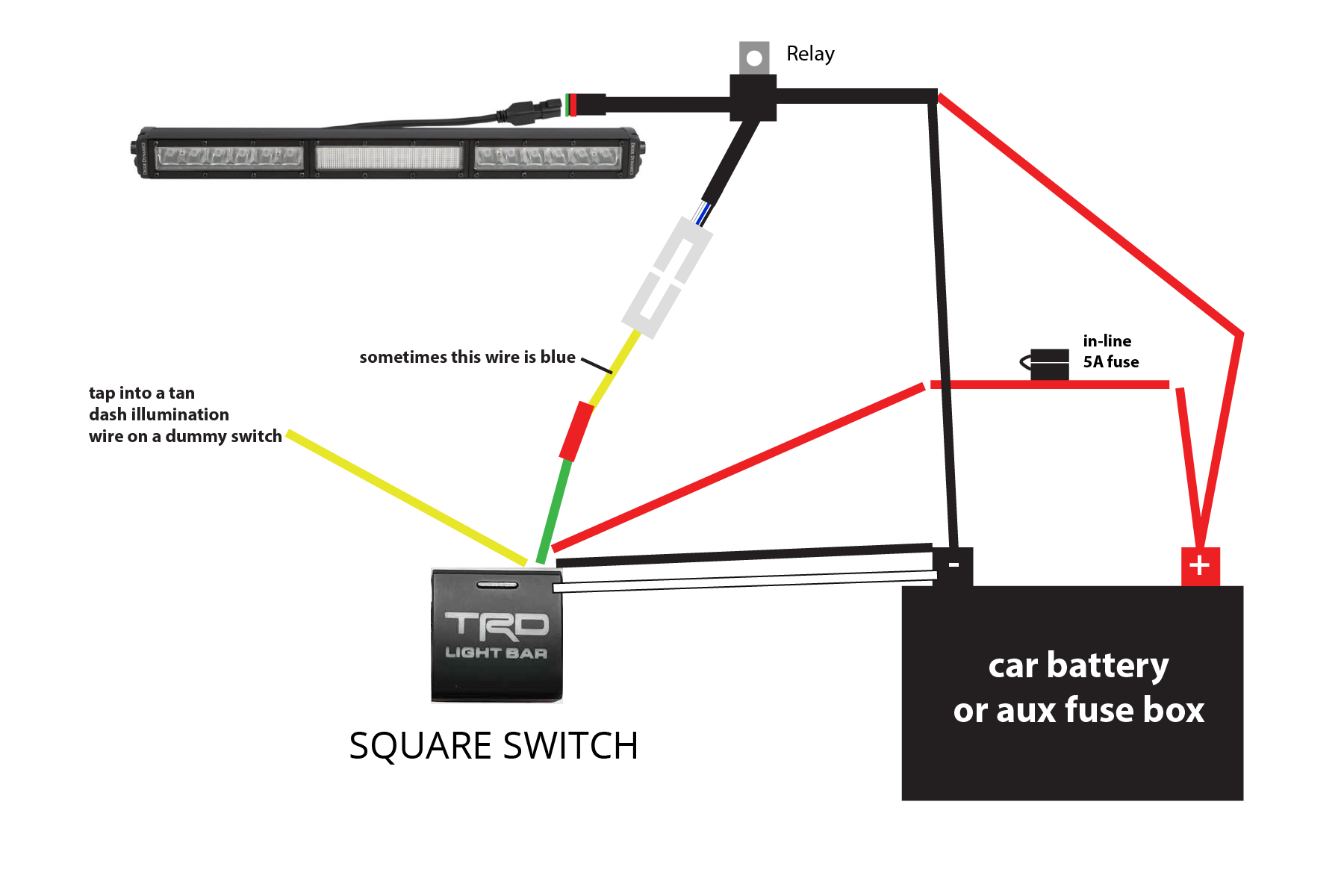

• Plug-and-play wiring harness included to power light bars.

Overview

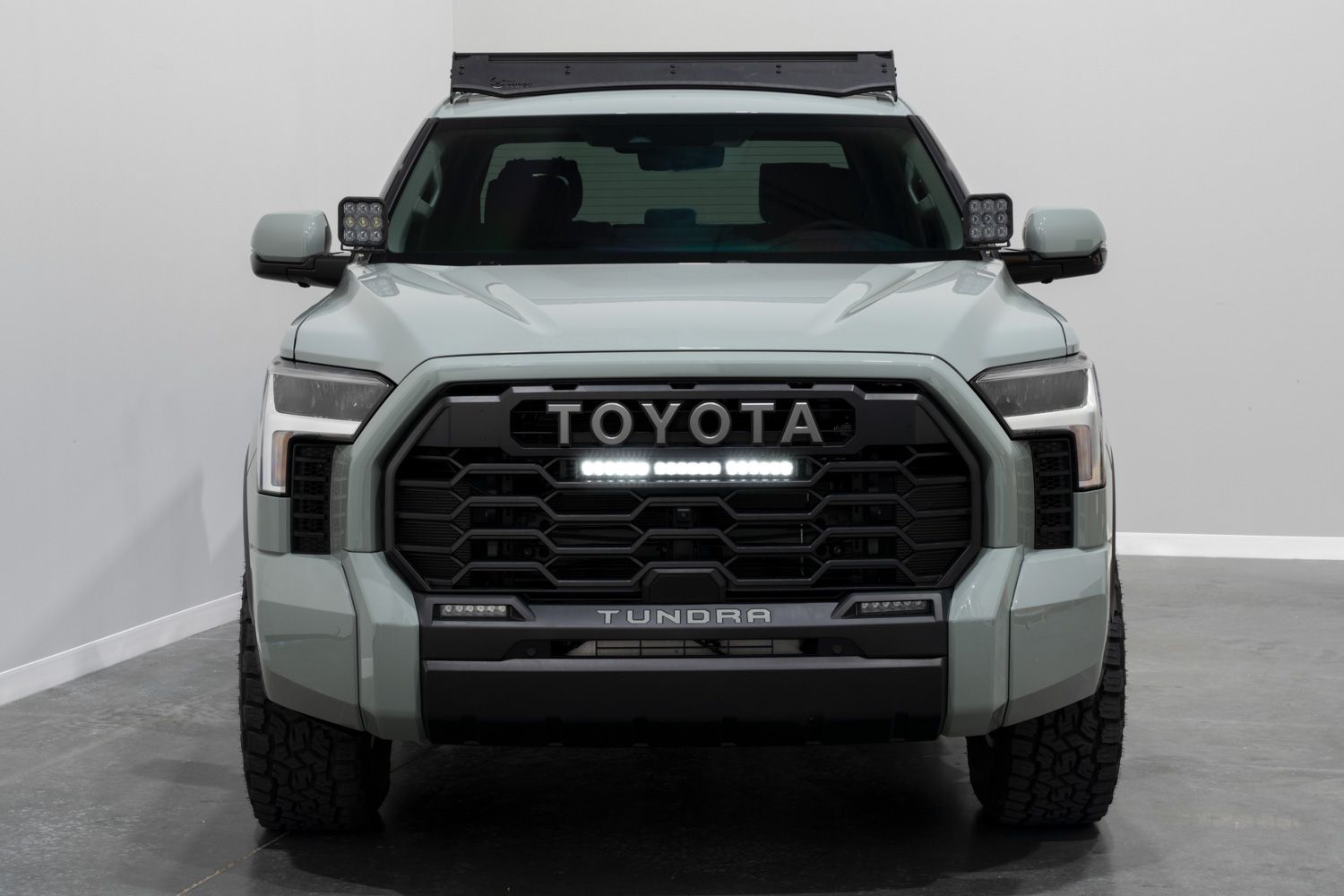

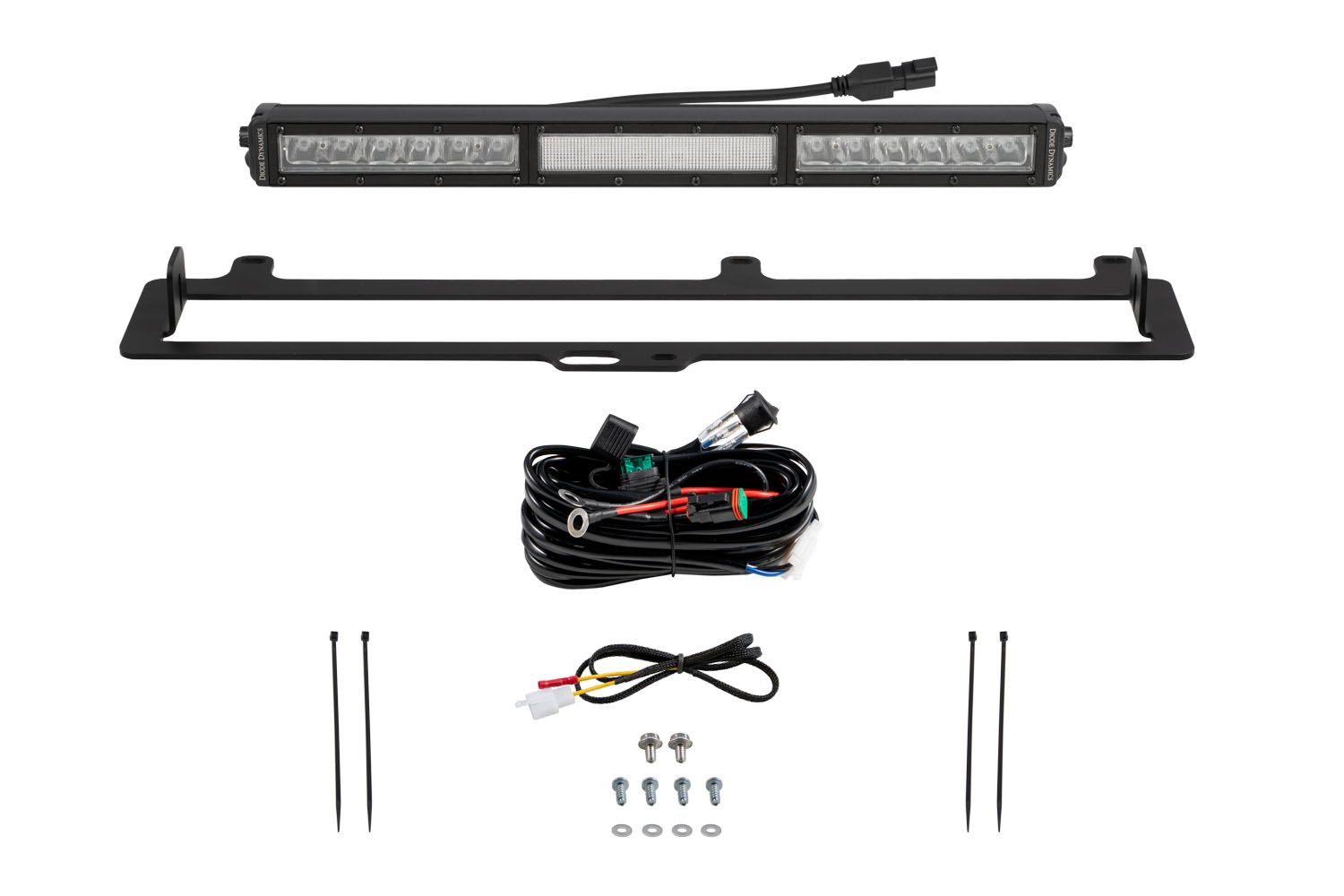

Perfect Fitment. The TRD Pro Grille Light Bar Kit for the 2022+ Toyota Tundra from Diode Dynamics allows you to mount a single Stage Series 18" LED Light Bar in the TRD Pro grille. If you are looking to swap out the light bar on your TRD Pro grille or are converting your grille over to the TRD Pro grille, this kit is perfect for you. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required!

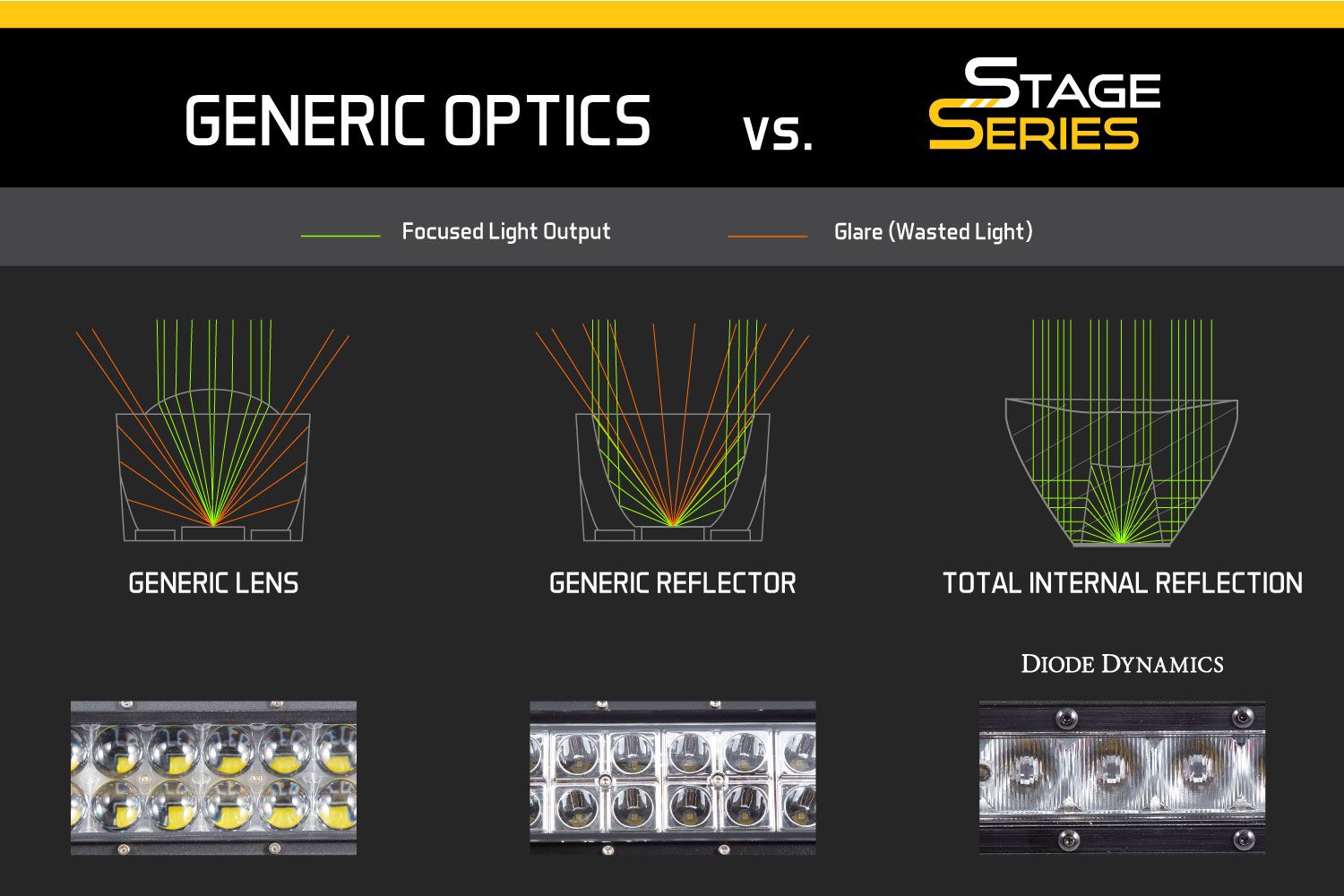

Designed For Performance. Using optical simulation modeling, Diode Dynamics Stage Series LED light bars have been designed for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package. Our light bars shine light in a highly-functional and useful beam pattern, much more focused than older LEDs on the market. Click here to learn more: Total Internal Reflection (TIR) Optics | Stage Series Video.

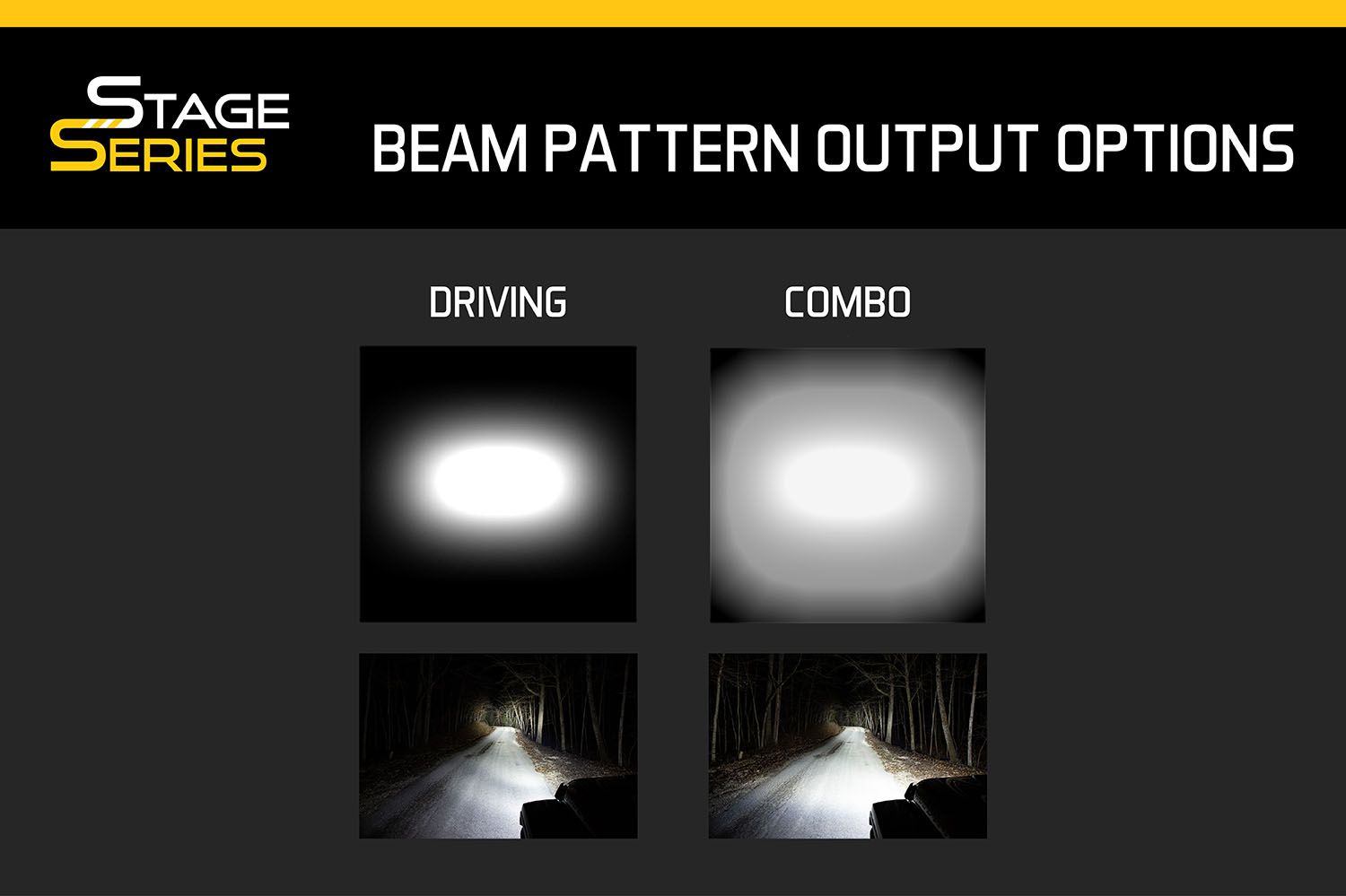

Functional Patterns. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!

The Driving pattern was designed to supplement your high beams. Rather than a simple "spot" pattern, the Stage Series Driving pattern has a rectangular 20Wx8H degree pattern that is far more useful for directing light downrange at high speeds.

The Combo pattern combines both the Driving and Flood optics. It shines light downrange in a focused, rectangular 20Wx8H degree pattern while also illuminating area around it in a full 80Wx50H degree spread. The Stage Series 18" Combo Light Bar features a single flood lens in the middle with two driving lenses on the outer edges.

Proven Reliability. Stage Series lighting has been tested for long-term operation from -40 to 185 degrees F, vibration, moisture intrusion, and corrosion. All of these tests are completed to SAE/DOT standards, just like factory components. They've also been put to the test on-road, and are in-use by dozens of rally and endurance racing teams for nighttime stages and laps.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer our own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!

Installation PDF
