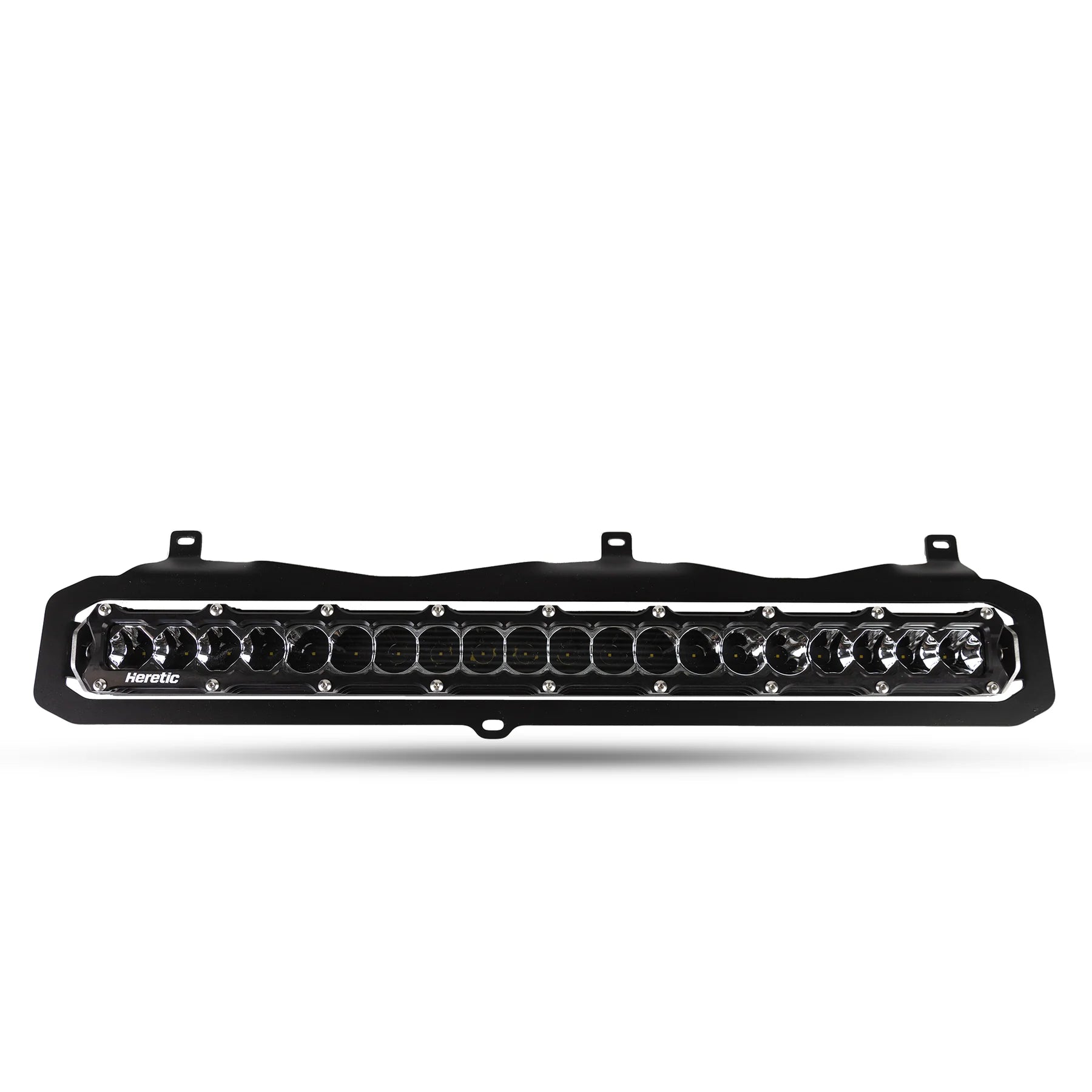

Heretic 2022+ Tundra 20" Behind the Grille LED Light Bar Kit

Ships in 3-8 weeks.

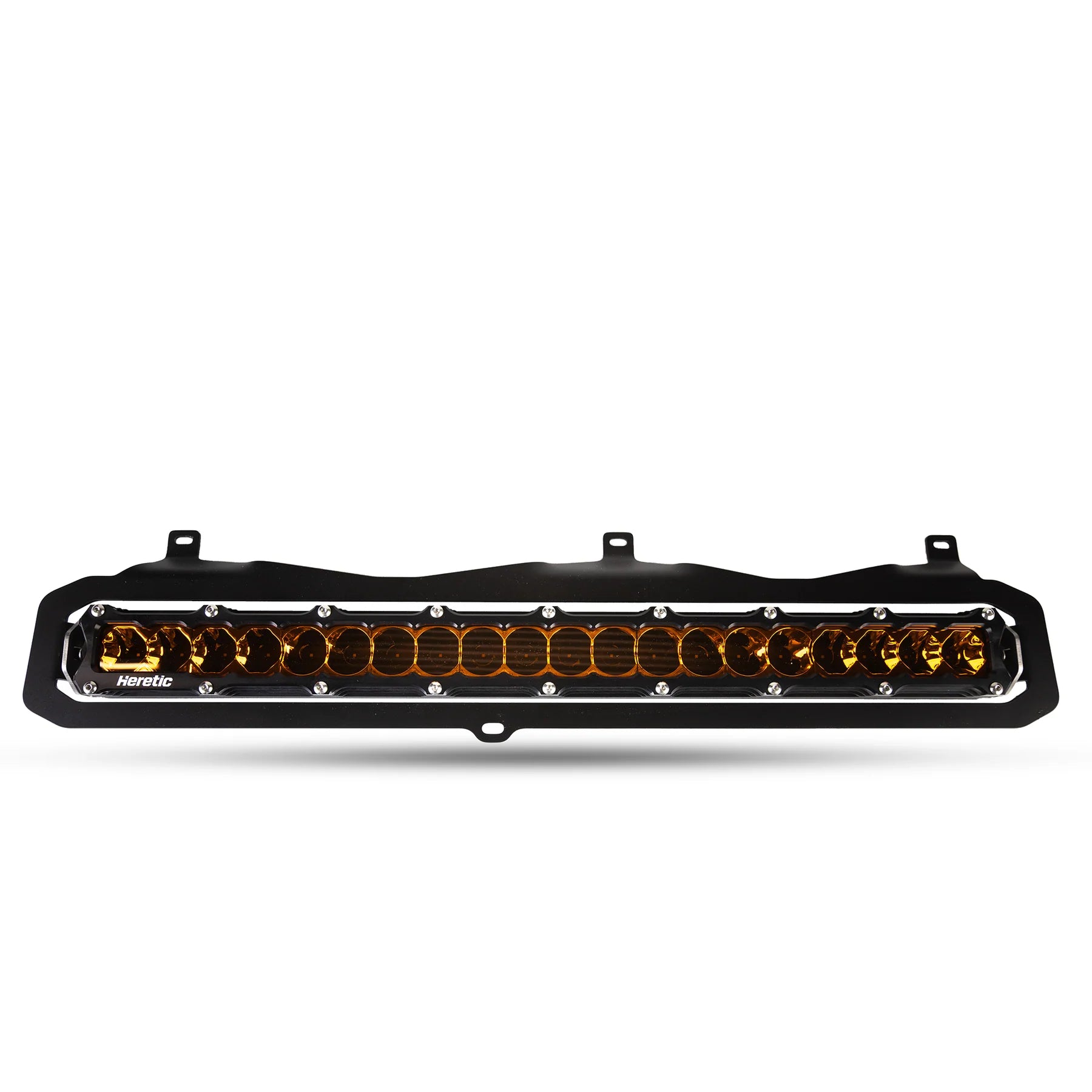

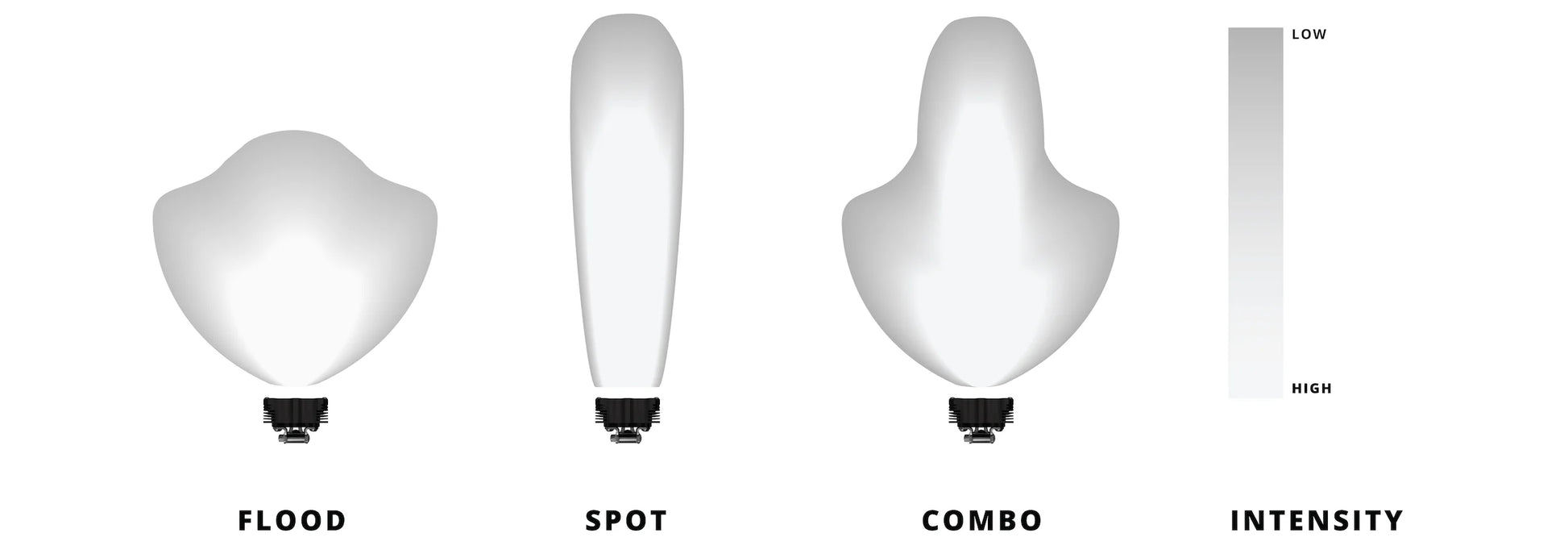

The 6 series LED 20-inch light bar is one of the most rugged and reliable lights on the market. Typically this light bar is used in forward-facing applications in the bumpers of trucks, jeeps, SUVs, and UTVs. It is sized just right to fit most aftermarket bumper openings. The housing is a CNC machined aircraft-grade aluminum that makes it the most durable and high-quality housing on the market. We use the highest-grade LEDs and circuit boards that allow this light to be as bright as possible while still controlling heat. Internal reflectors have been designed and optimized to shape and put out the best light possible. Make this light yours. Customize the reflector beam configuration to spot, flood, or combo. Choose between a trusty clear lens or an amber lens for dusty and foggy conditions. Color the bezel to match your rig. Designed, manufactured, and assembled in the USA!

Kit contains:

20" Light Bar

Grille Mounting Bracket & Hardware

Front Camera Relocation Bracket

Complete Wiring Harness

Specs:

• (20) 6-watt CREE LED
• Full 120 watts driven at 100%
• 14520 lumen
• 6061 billet housing
• 22 x 2 x 1.5
• I-P68 rated stainless steel mounts
• Weight 3 lbs
• Amp draw 11.3 Peak at 13.8V
• LUX at 10m: 4125
• Candela: 412500

Constructed from a Single Block of Aluminum

Single block construction for a seamless design that keeps the elements out and lasts longer than typical aftermarket plastic lights.

BEYOND LUMENS

Heretic uses the highest quality circuit boards, reflectors, and LED bulbs to not only produce industry best lumen counts, but the best light shape on the market.

Heat Management

Heretic's self regulating circuit boards paired with aircraft grade aluminum housings with cooling fins create a more efficient heat transfer, allowing lights to function at full capacity.

American Owned an Operated

Heretic takes pride in manufacturing the majority of our parts in-house. If not in-house, Heretic keeps it as close to home as possible.
