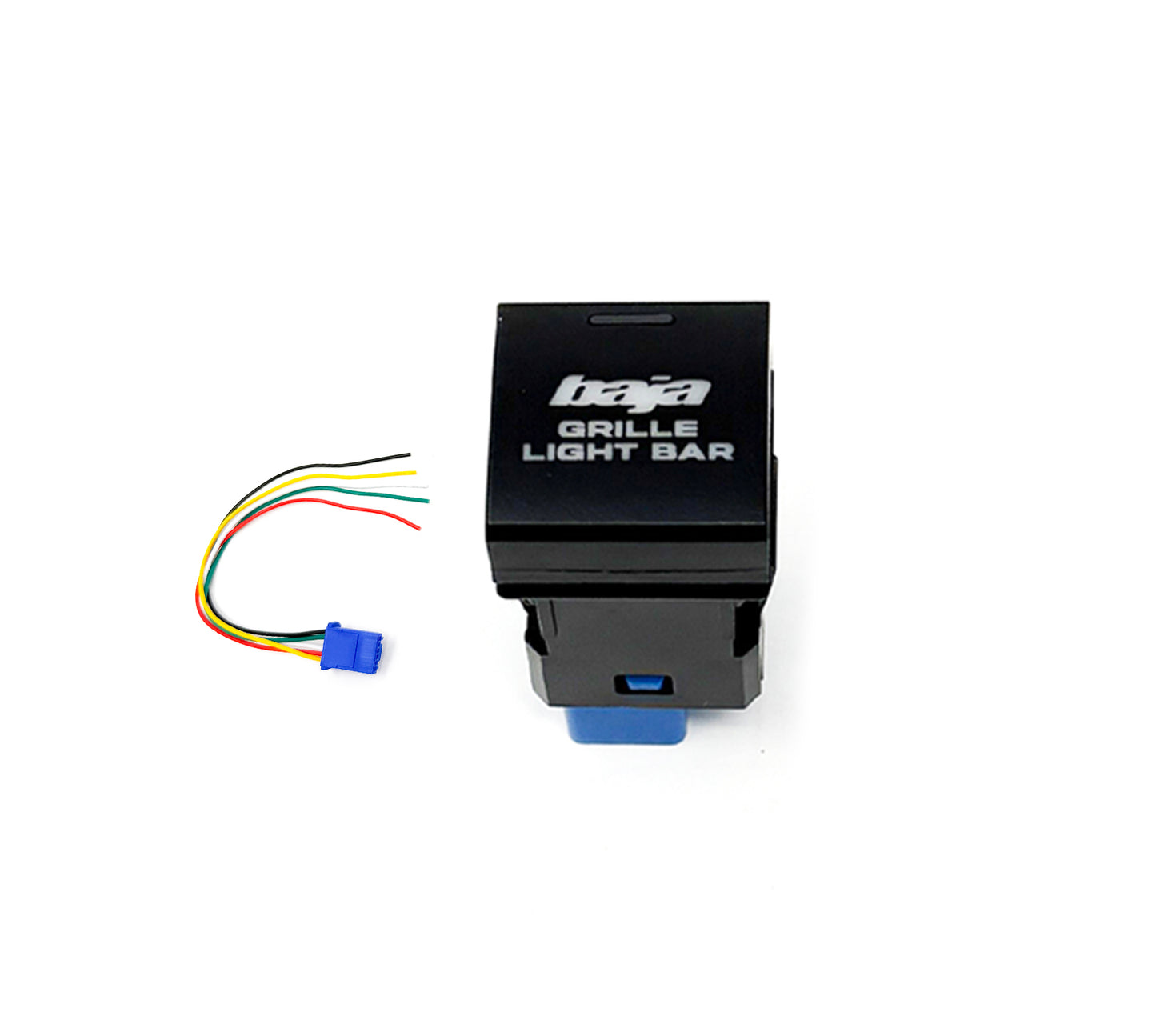

Baja Grille Light Bar Dash Switch

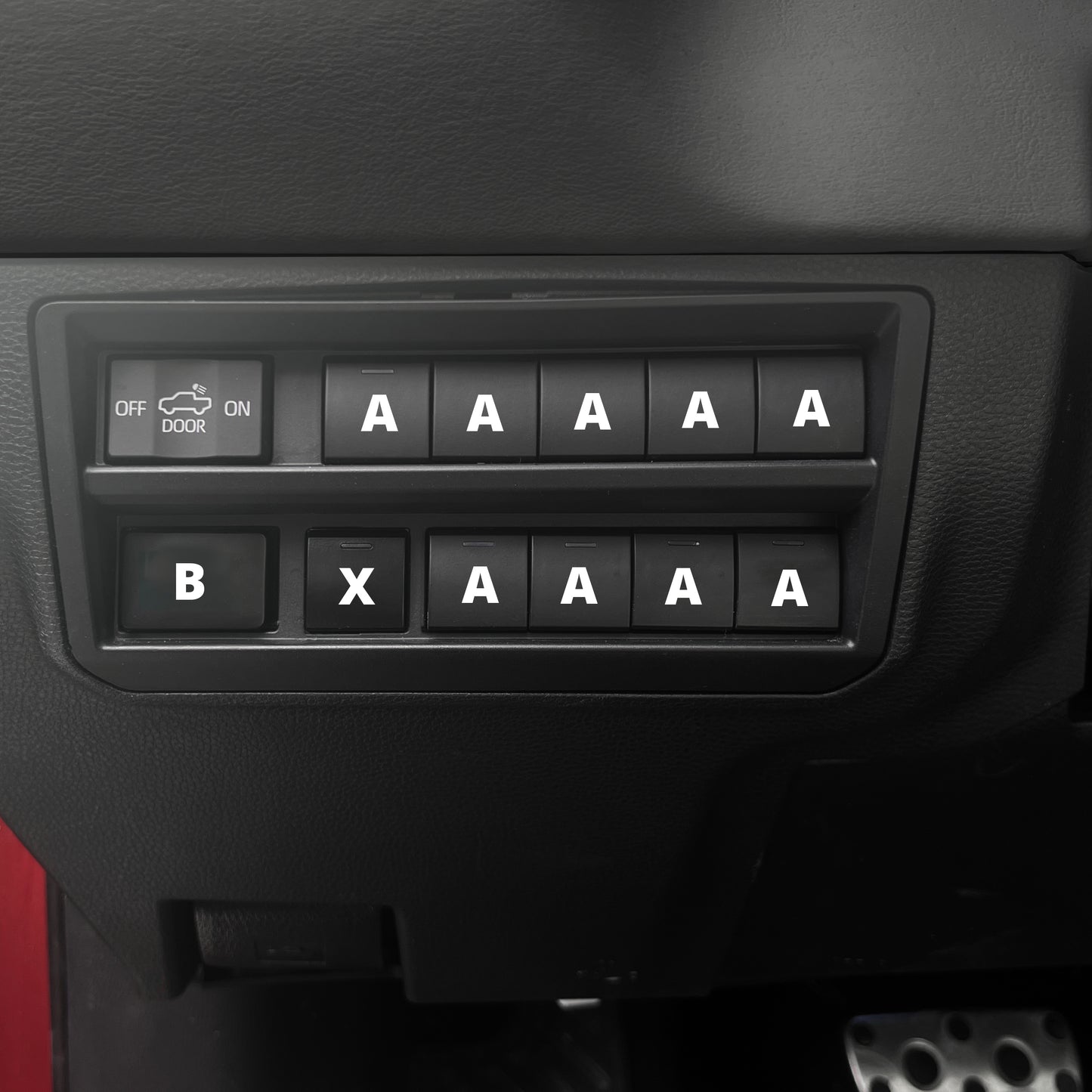

Fits the Toyota mini 20mm square dash switches. See dash cluster picture, fits all "A" spots found in the 2022+ Tundra left of the steering wheel.

Pigtail Wire Guide:

Green: 12V OUT - to Accessory or Relay,

Yellow: 12V IN - Backlight

Red: 12V IN - Illuminates the status light when engaged and provides power to accessory

Black and White - Negative
