Rave Off Road
TRD "Grille Light" Dash Switch
TRD "Grille Light" Dash Switch
Regular price
$45.00
Regular price
Sale price
$45.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Fits the Toyota mini 20mm square dash switches. See dash cluster picture, fits all "A" spots.
Found in the 2022+ Tundra left of the steering wheel.

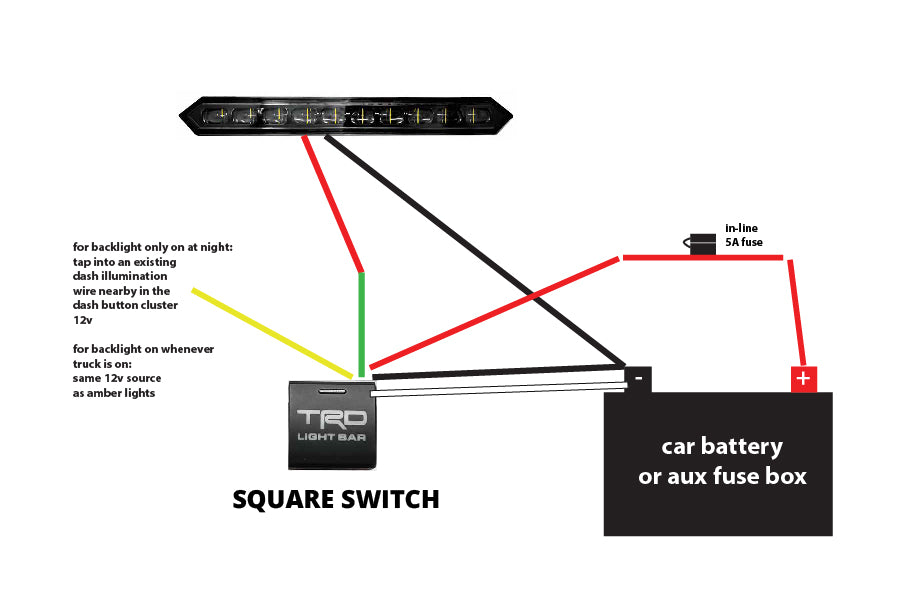

Pigtail Wire Guide:
Green: 12V OUT - to Accessory or Relay,
Yellow: 12V IN - Backlight
Red: 12V IN - Illuminates the status light when engaged and provides power to accessory
Black and White - Negative
