Diode Dynamics Stealth Bumper Light Bar Kit for 2022+ Tundra

Diode Dynamics Stealth Bumper Light Bar Kit for 2022+ Tundra

Regular price $360.00
Regular price Sale price $360.00
Sale Sold out
Shipping calculated at checkout.


  • Direct fitment on 2022+ Toyota Tundra.
  • Allows you to mount one 18" light bar in the lower bumper opening.
  • CAD-designed for perfect fitment and OEM-like appearance.
  • Utilizes existing mounting points for easy installation - no cutting or drilling required.
  • Highly durable powder coated steel construction.
  • Plug-and-play wiring harness included to power light bars.

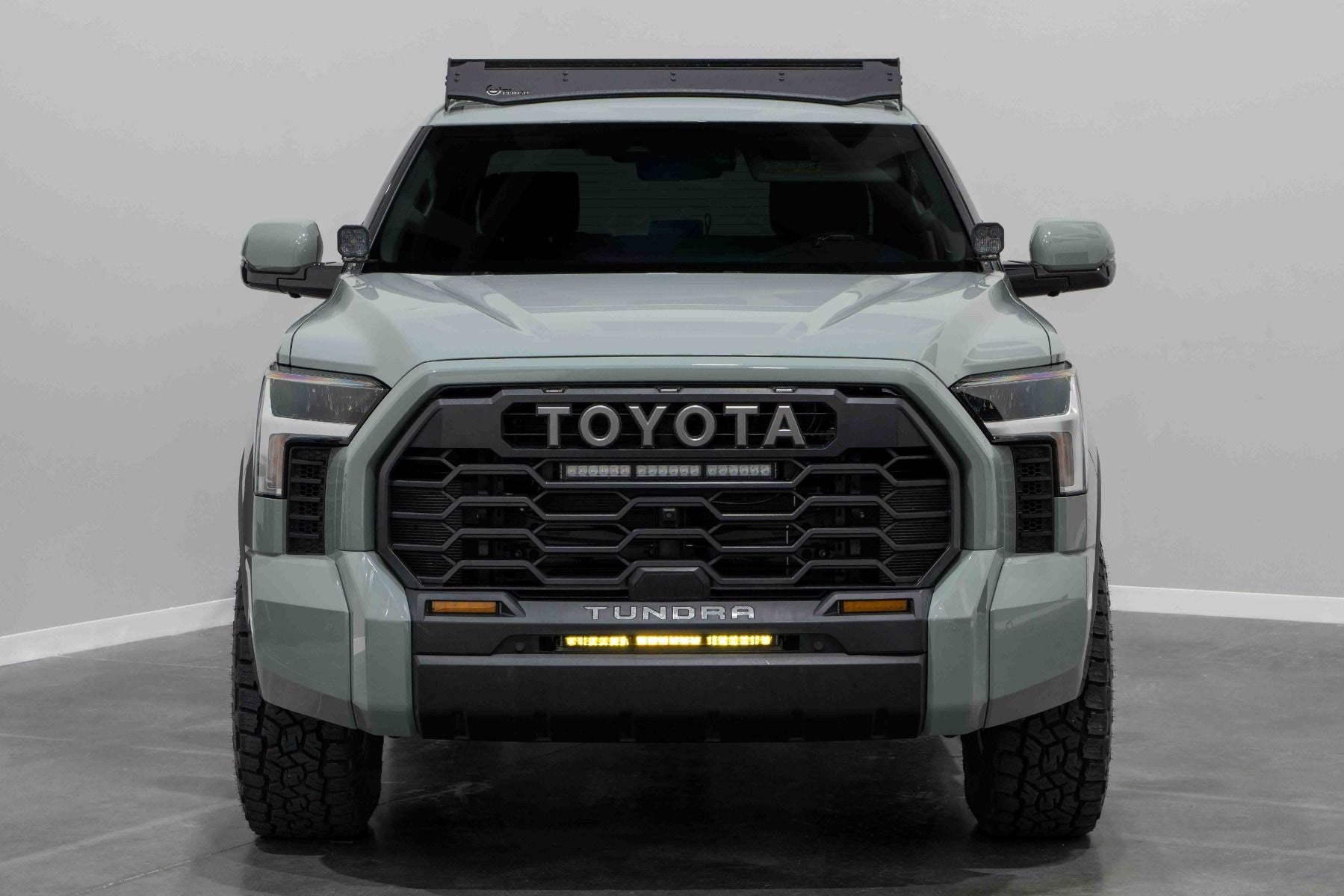

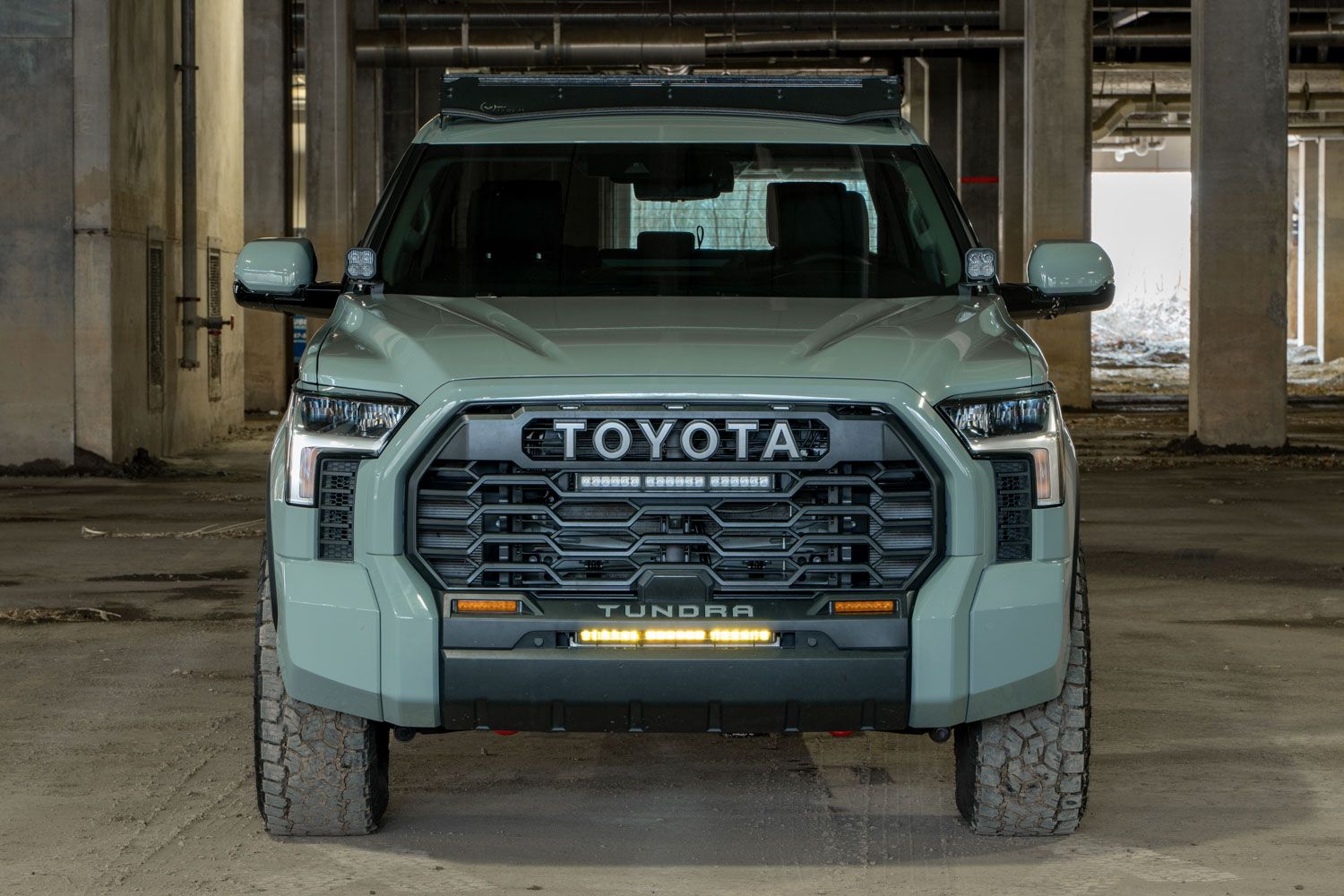

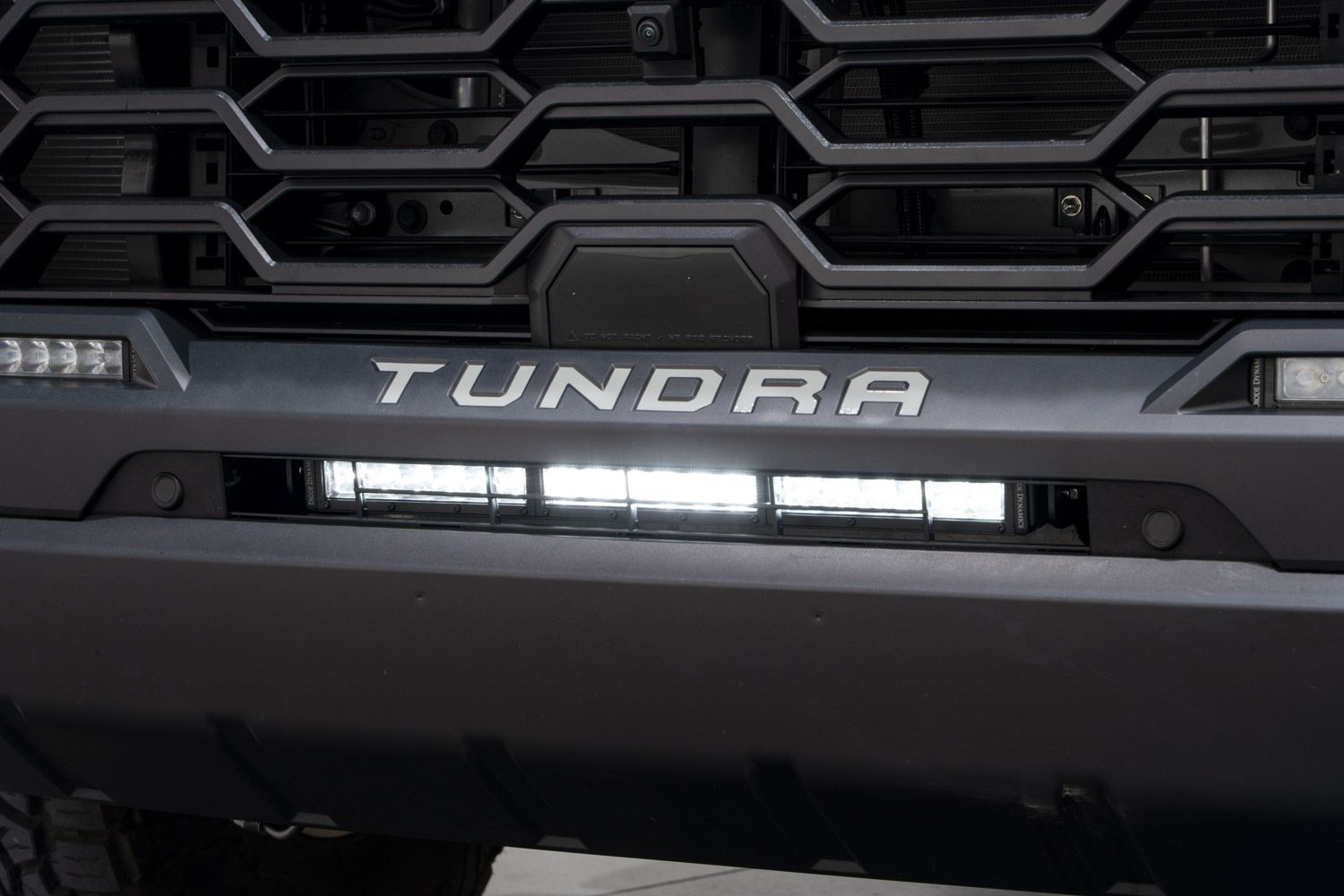

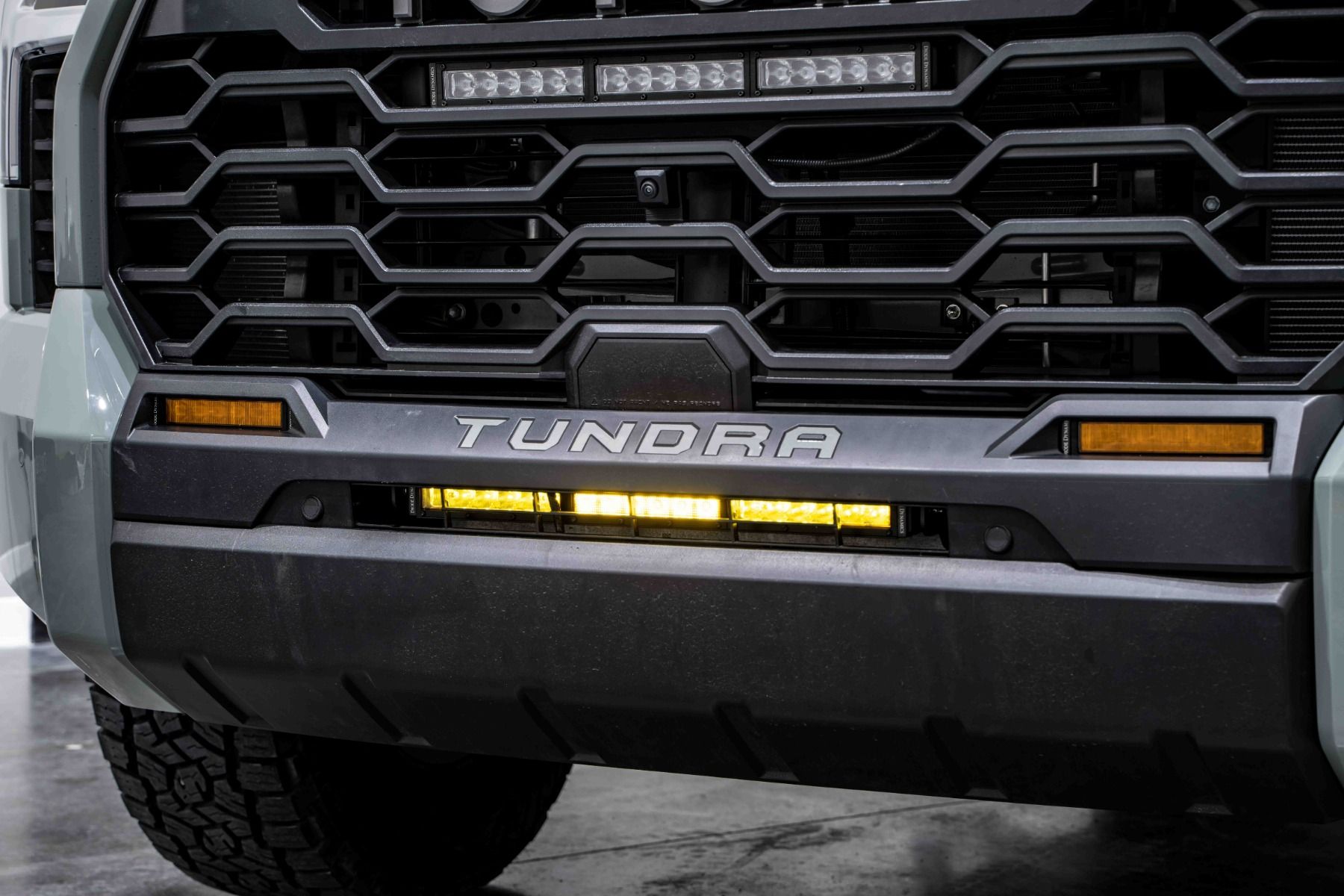

Perfect fitment. The Stealth LED Light Bar Kit for the 2022+ Tundra from Diode Dynamics allows you to easily mount a 18" light bar in the factory lower bumper opening. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required! This kit retains the factory lower grille for a clean, OEM-like appearance.

Designed For Performance. Using optical simulation modeling, Diode Dynamics Stage Series light bars have been designed for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package. Our light bars shine light in a highly-functional and useful beam pattern, much more focused than older LEDs on the market. Click here to learn more: Total Internal Reflection (TIR) Optics | Stage Series Video.

Functional Patterns. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!

The Combo pattern combines both the Driving and Flood optics. It shines light downrange in a focused, rectangular 20Wx8H degree pattern while also illuminating area around it in a full 80Wx50H degree spread. The Stage Series 18" Combo Light Bar features a flood lens in the middle with two driving lenses on the outer edges.

light bar beam patterns


NOTE: This kit cannot be installed alongside the SS5 Grille CrossLink Lightbar Kit for the 2022+ Toyota Tundra.

Make: Toyota

Model: Tundra
Years: 2022+

What's Included

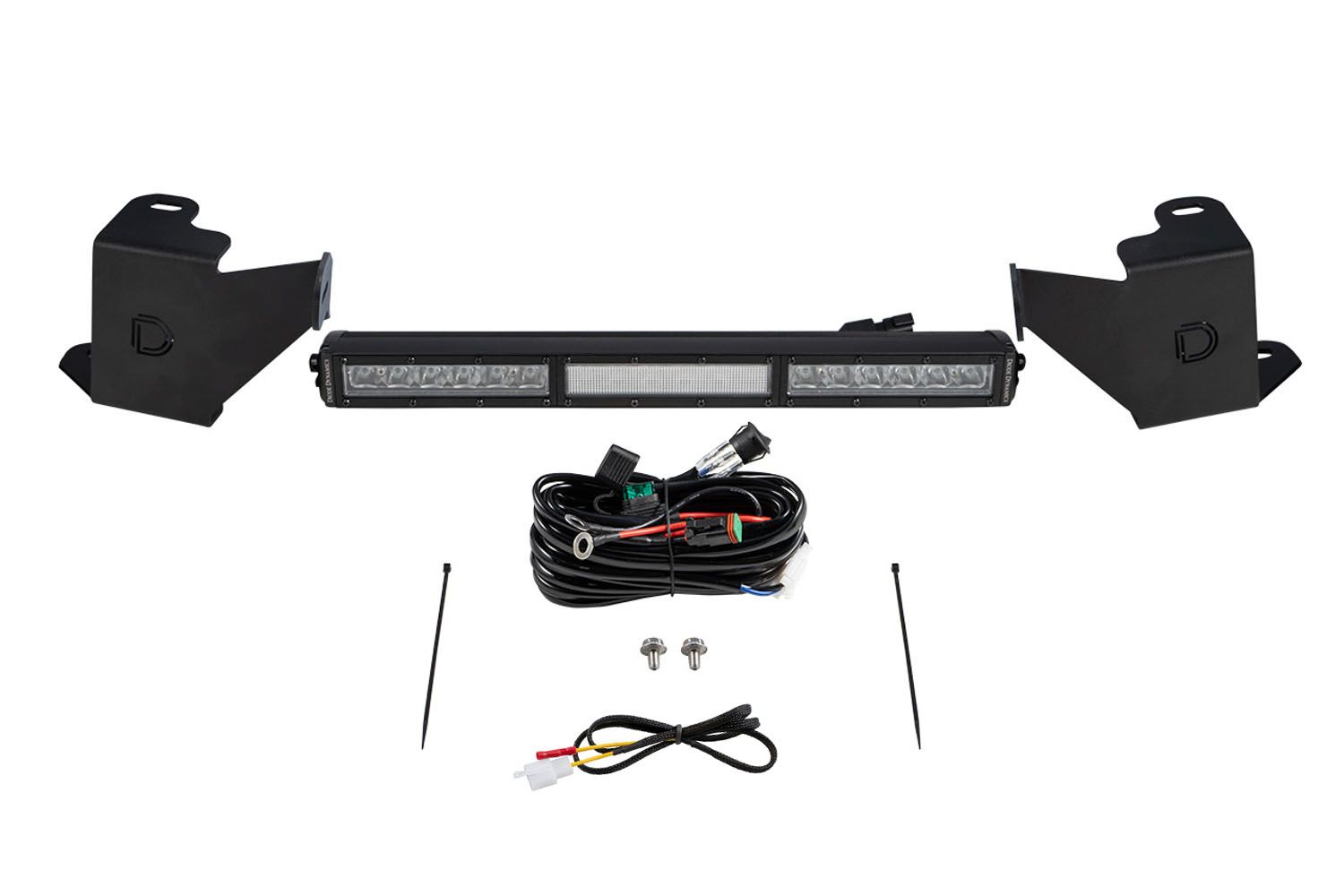

In the Box:
  • One (1) Stealth SS18 Bracket Kit for 2022 Toyota Tundra
  • One (1) SS18 Stage Series 18" Light Bar
  • One (1) Heavy Duty Lightbar Wiring Harness
  • Installation Guide


Beam Angle: Combo (Driving and Flood)
Power (watts): 137.2
Operating Voltage: 9-24V
Current (amps @ 14V): 9.8
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Luxeon Z ES
Connector(s): Deutsch DT Input
Materials: Aluminum PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets
Cooling: Passive, heatsink
Intrusion Ratings: IP68 Waterproof
Product Weight (lb): 9.20
Shipped Weight (lb): 11.3

8 Year Limited Warranty
In addition to our standard 3 Year replacement warranty, this product carries an additional 5 years of protection against manufacturing defect, for a total of 8 years of warranty coverage. Click here to learn more.
