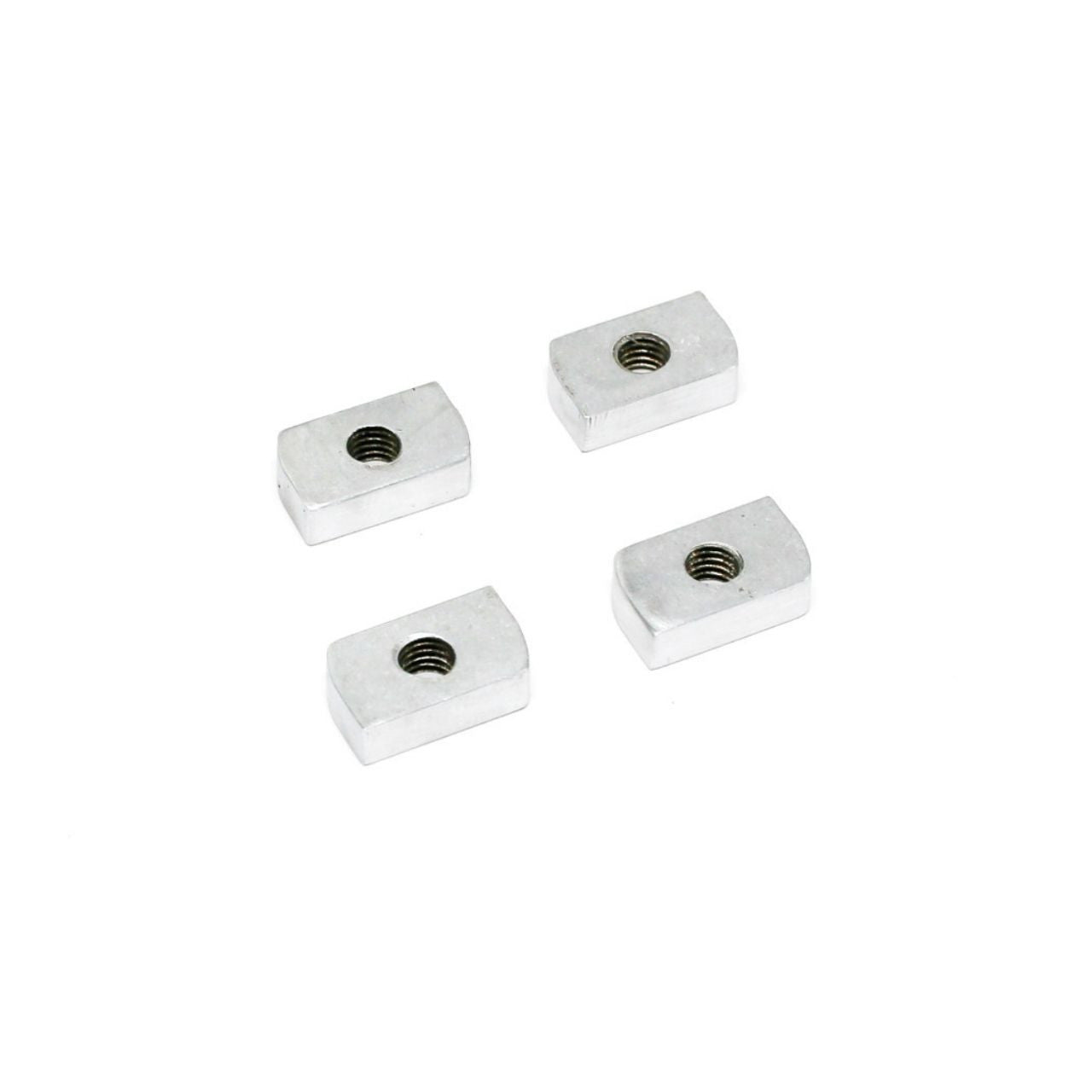

Rail T-Nuts
Rail T-Nuts
Key Features:
- Heavy-Duty Strength: These T-nuts are machined from .250” thick 6061-T6 Aluminum
- Easy Installation: Simply thread the Rail T-Nut onto the provided hardware, insert into the slot of the rail, and tighten to rotate the T-Nut into place.
- Exceptional Quality and Craftsmanship: Rail T-Nuts feature top-notch quality and craftsmanship and are corrosion resistant.
- Versatile and Functional: T-nuts can be installed from the face of your rail, eliminating the need to remove previously installed accessories to install your Rail Tie Downs.
- Compatibility and Fit: Rail T-Nuts allow you to install Rail Tie Downs when you already have a bed rack, tonneau cover, camper shell, or other items installed to your bed rails.
Specifications:
- Includes Four (4) T-nuts, enough to install one pair of Rail Tie Downs
- Application: 2005-2024 Toyota Tacoma w/ OEM Bed Rails
- Application: 2007-2024 Toyota Tundra w/ OEM Bed Rails
- Dimensions: 5/8" x 1" to fit OEM Toyota Bed Rails
- M8-1.25 threads work with provided Rail Tie Down hardware
- Machined from 1/4" thick 6061-T6 Aluminum
- Designed and Manufactured in the USA
Product Overview:
If you already have a bed rack, tonneau cover, or other rail-mounted accessories, it could be a little more challenging to add our Billet Rail Tie Downs, or any other accessory for that matter. Look no further, the solution to mounting Billet Tie Downs and accessories to your Tacoma or Tundra bed rails is here!
Our standard Rail Tie Down mounting plates are beefy! Due to the substantial, full-width size, installation requires you to slide them in from the ends of the rails. This doesn't always work if you already have other items installed on the bed rails, but these Rail T-Nuts can be installed anywhere on your Toyota bed rail without removing a thing!

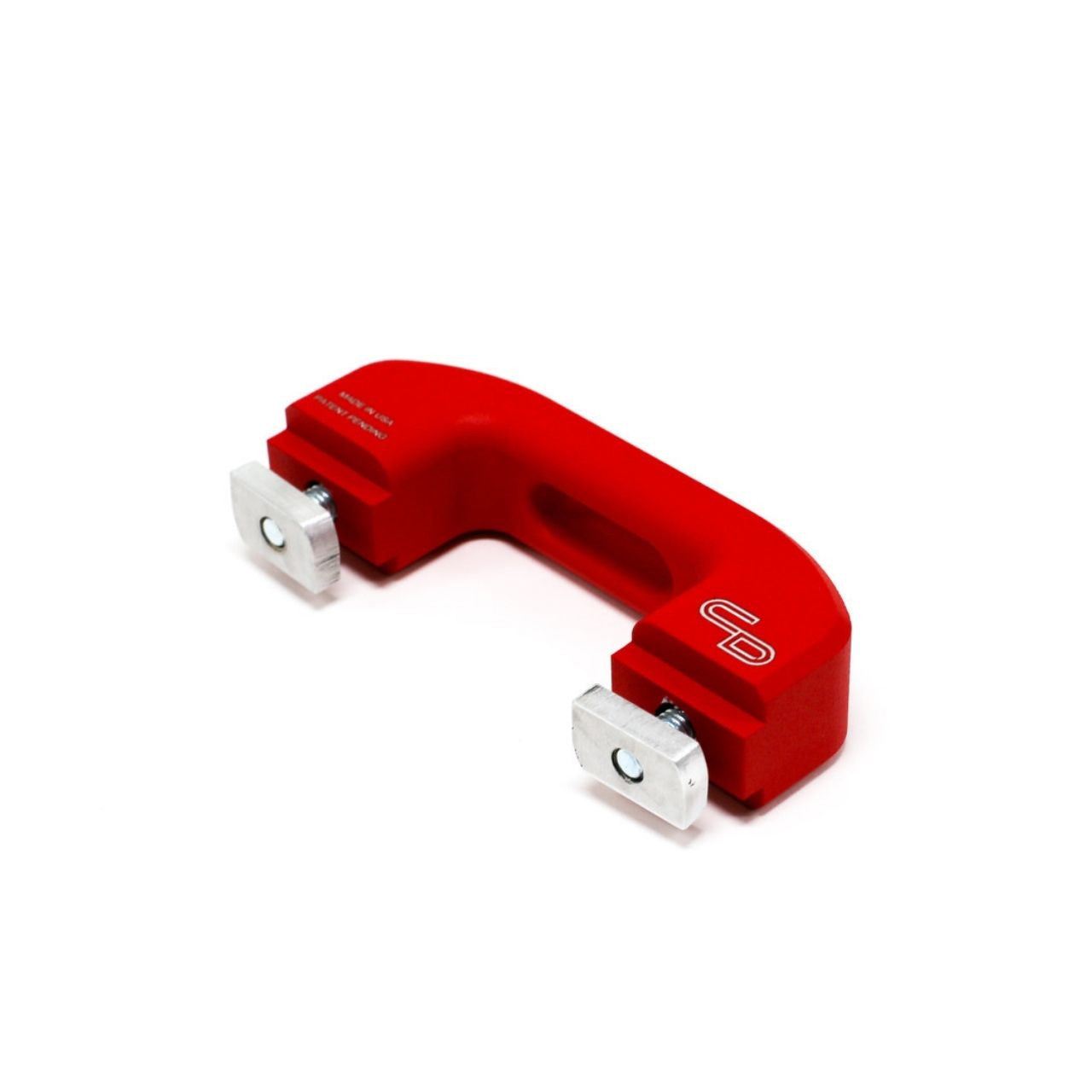

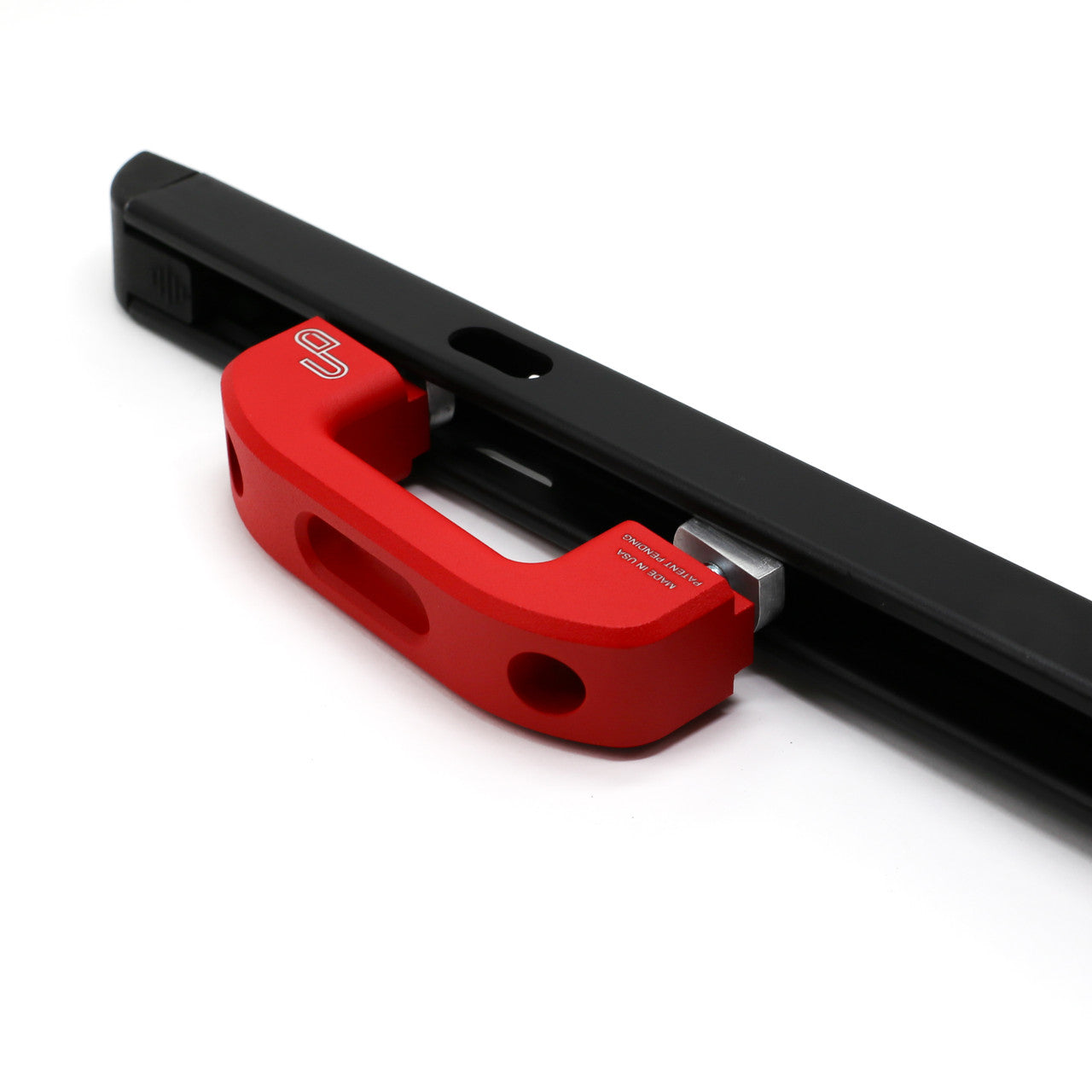

Simply pre-thread the Rail T-Nut loosely onto the bolts, with the rounded corners oriented so they will rotate into place as you tighten the hardware. These will slip right into the slots on your rails, and then lock into place as you tighten the bolts!
Please note that the standard mounting plates that come with our Rail Tie-Downs have a built-in locking feature, which the T-Nuts do not have. Installation and proper use is the responsibility of the truck owner and the hardware should always be checked for tightness before use! With that said, we are proud to offer a clean and simple solution to a common customer request!
