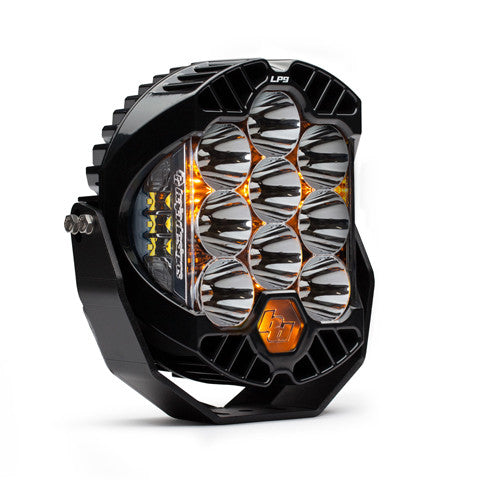

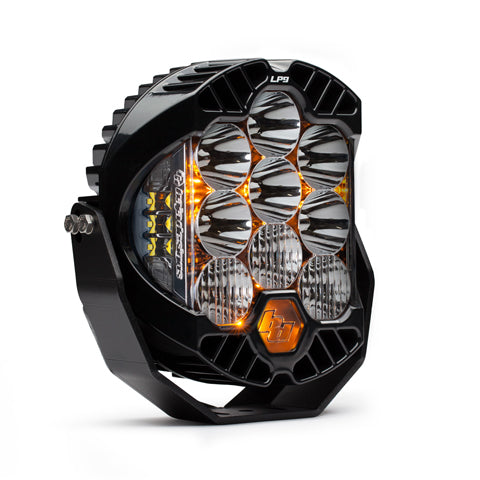

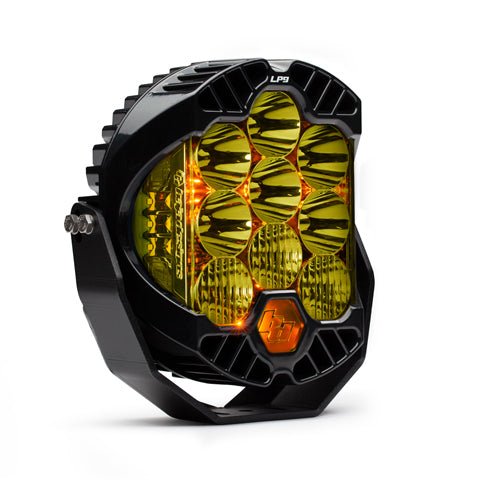

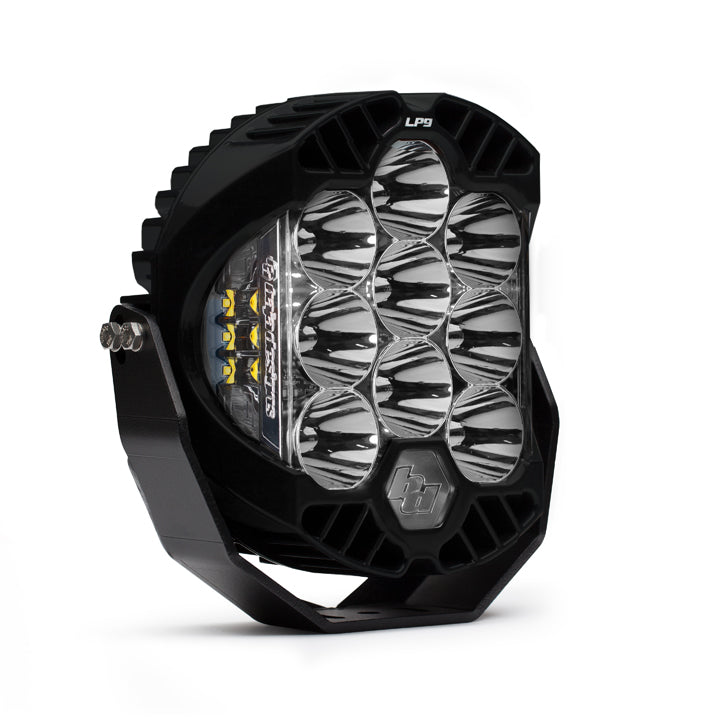

LP9 Automotive Off-Road LED Lights
The LP9 Baja Designs off-road light is the ultimate solution for enhancing nighttime visibility and safety. Evolving from our renowned 8-inch La Paz HID light, the LP9 Pro incorporates cutting-edge technology for superior performance.
This light features nine forward-projecting next-generation LEDs and three Integrated Peripheral Technology (IPT) LEDs on each side, delivering a wide 200-degree spread of illumination. With three distinct models available, the LP9 Pro excels in near and mid-field lighting, providing intense brightness in zones 1-3 and extending into zone 4 for spot lighting at higher speeds.

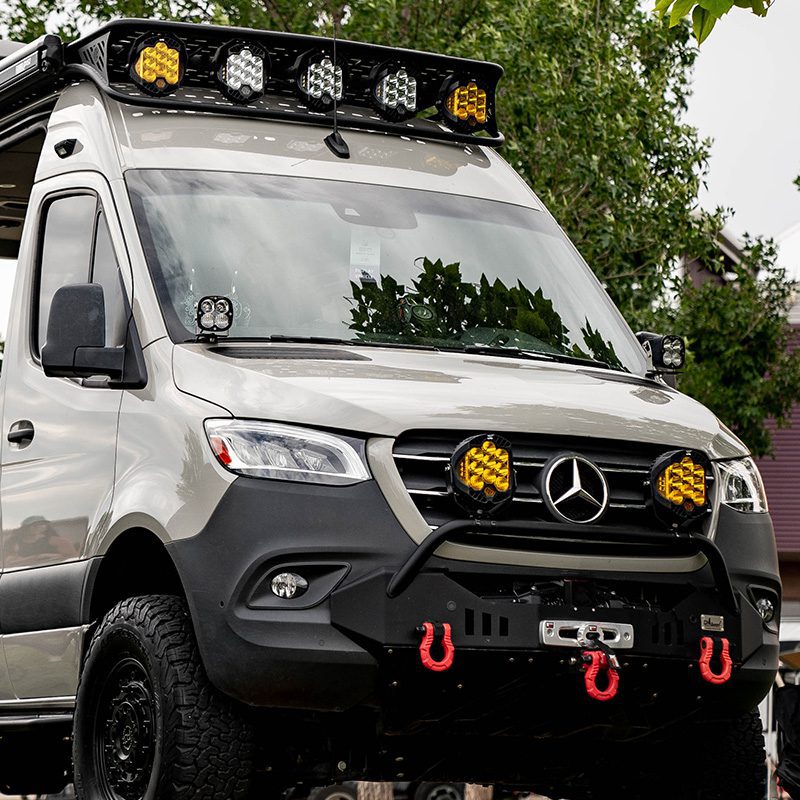

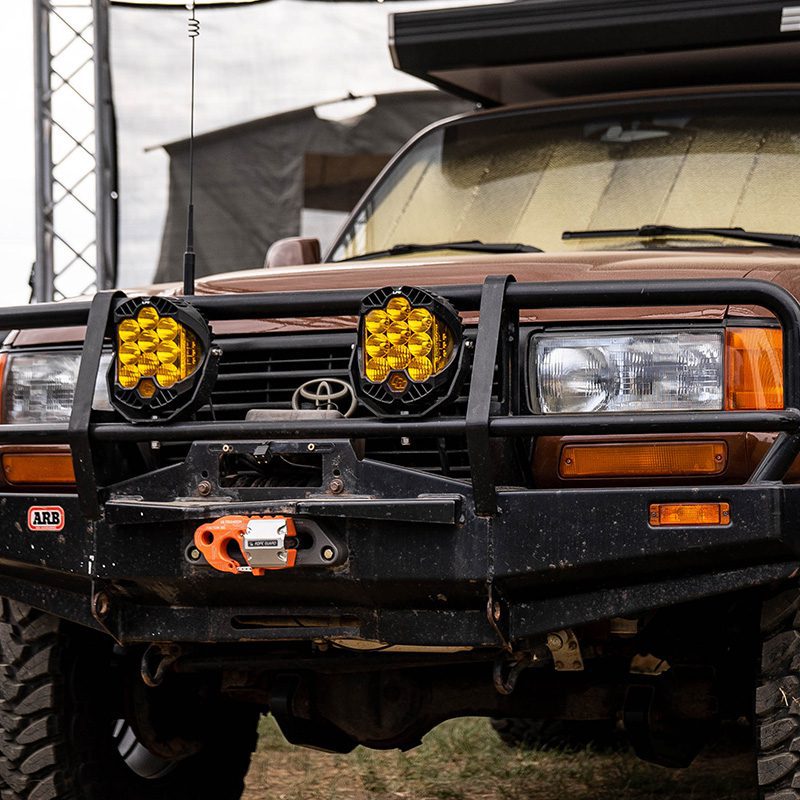

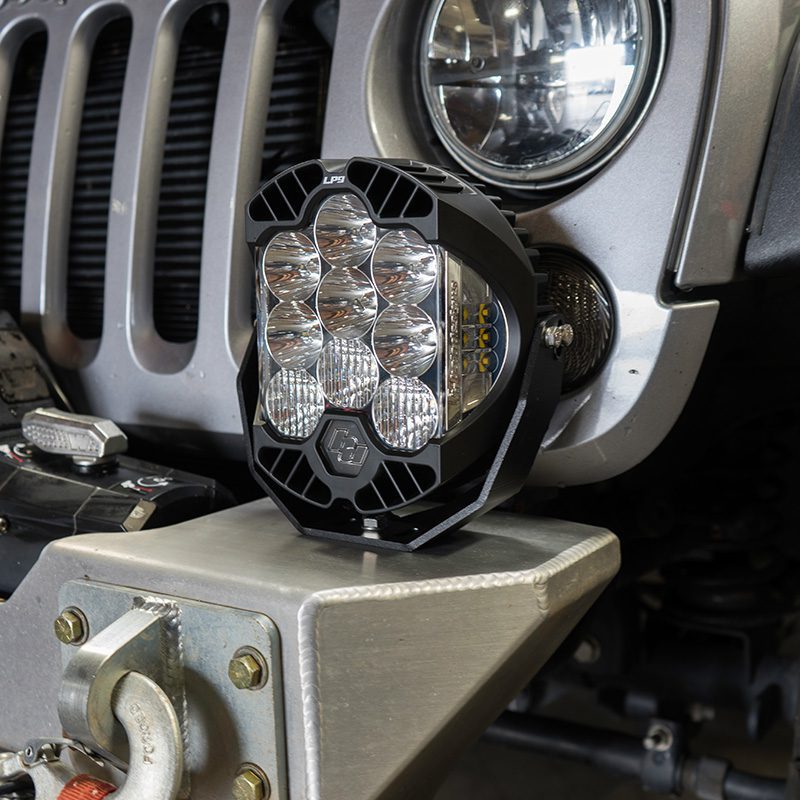

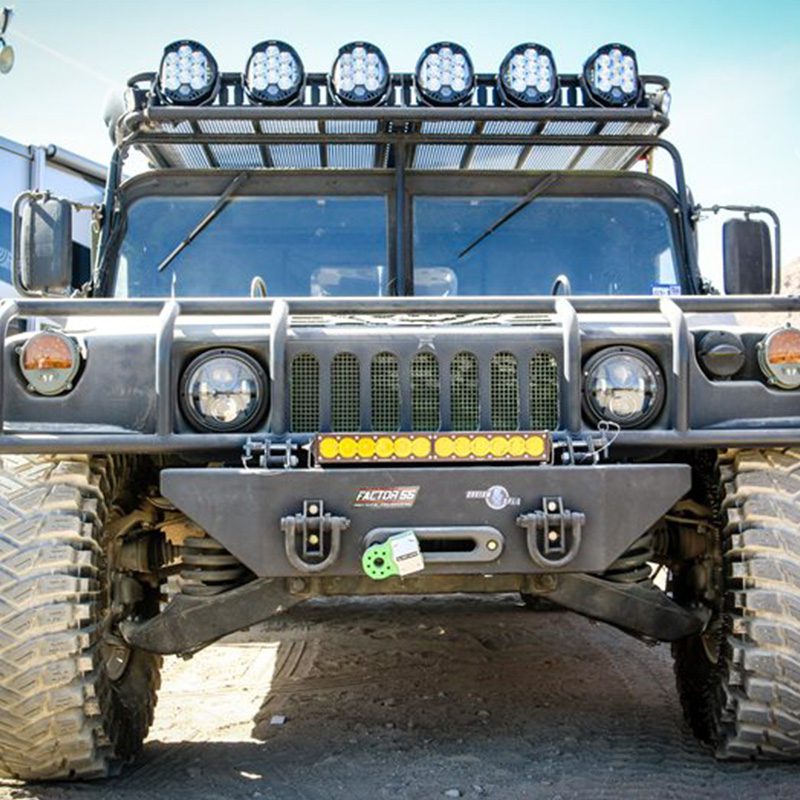

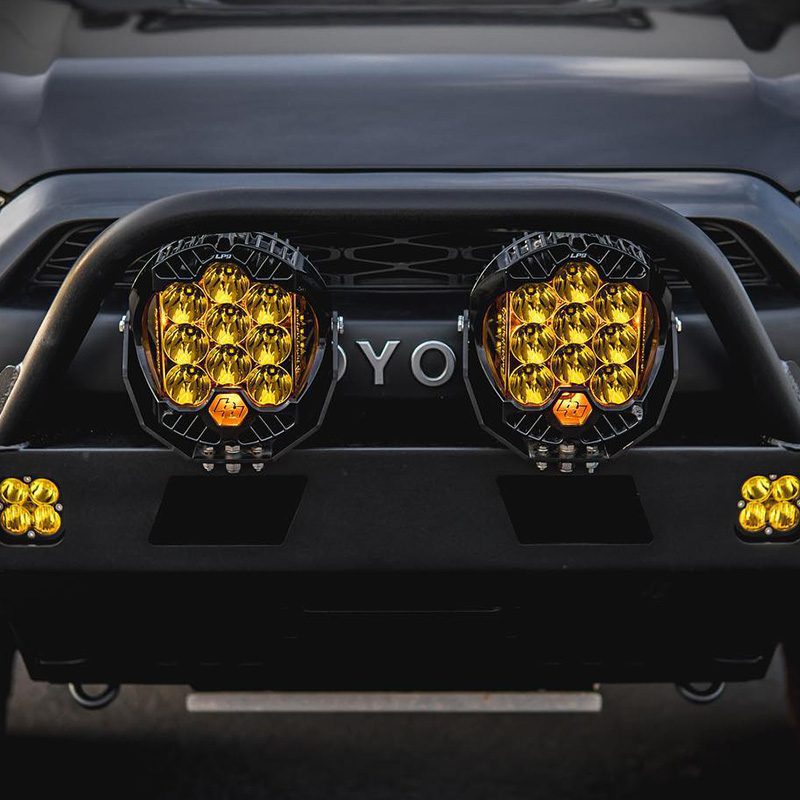

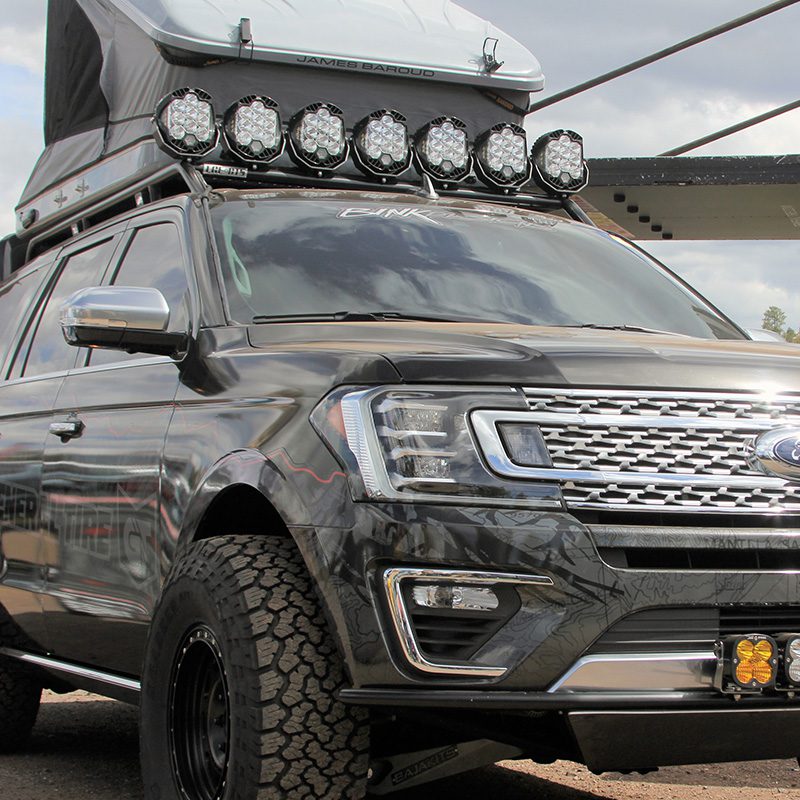

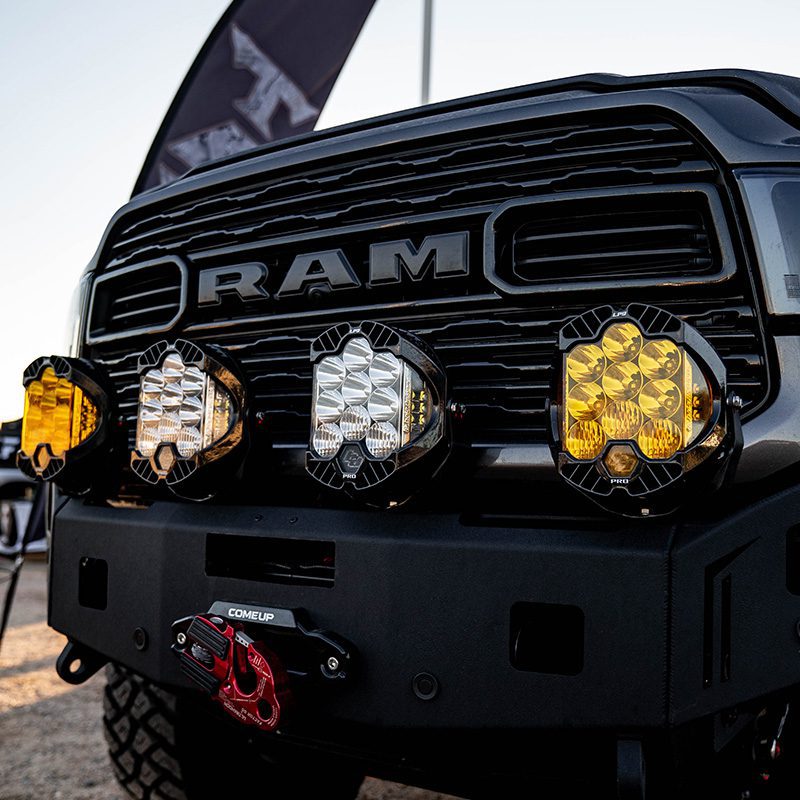

Mount the LP9 Pro on your front grille to complement your headlights or attach it to a Baja light bar on your roof for extended range projection. Regardless of placement, the LP9 Pro ensures you’ll spot dips, rocks, wildlife, and other obstacles well before they become a hazard.
These high-wattage auxiliary lights are mainly designed for near-field and midfield use — except for the LP9 Racer Edition, which has a longer visibility field to assist those going at top speed. Our design team has developed three LP9 LED light models to help see what’s ahead:
LP9 Pro
The King of lights, the LP9 Pro utilizes a collection nine forward projecting next-generation LEDs, plus three Integrated Peripheral Technology (IPT) LEDs per side to provide 200-degrees spread of light. The LP9 Pro is the light of choice when looking for near and mid field lighting providing intense illumination in zones 1-3 while pushing into zone 4 spot for when the speeds increase. Added features include the availability of amber, red, blue or green backlight and Hi/Low functionality.
LP9 Sport
Get lit with the LP9 Sport. Perfect for enthusiasts on a budget that want a high-power full-size light without the added features. The LP9 Sport offers the same beam pattern as the LP9 Pro, a 200-degree spread of light while illuminating zones 1-3, a simple easy to use on/off and no backlight for those that are looking at no-nonsense performance without the Pro price. While offering less forward lighting, the LP9 Sport offers more sidelight.
LP9 Racer
The LP9 Racer is designed for the demands of high-speed driving. While still producing a 200-degrees spread of light, the high power of the LP9 Racer Edition produces a much tighter pattern into zones 4 and 5 providing higher visibility when the speed climbs towards triple digits. Available with amber backlight, and Hi/Low functionality.
LP Series Features
LP Series Direct Ducted Cooling
Direct Ducted Cooling (DDC) – With so much power, a cooling system was an integral part of making the LP series perform at the highest lever. Direct Ducted Cooling, or DDC has been designed in all of the LP series lights for exceptional heat dispersion. This acts as channels, allowing air to travel from the front of the housing to the rear heat sinks keeping the lights from overheating while in use.
Integrated Peripheral Technology (IPT) – One of the features that makes the LP series the best on the trail is Integrated Peripheral Technology, or IPT for short. The IPTs allows the LP series to provide an incredible 200-degree spread of usable light, combining forward and cornering light in an all-in-one package.
Color Backlight Options – Our LP Pro series models offer color backlight options. Choose from amber, red, green, or blue giving enthusiasts the choice to customize their vehicles for shows, photo shoots, or anywhere they want to bring attention.
uService Lens Replacement – Keeping the LP series running at the highest level means having a lens that is free of damage. All LP series lights have been designed with Baja Designs uService technology. Changing a damaged lens and customizing your light pattern is made easy as unscrewing the housing bolts in the back and installing a new lens. All this can be done in your garage or on the trail without the fear of voiding your Lifetime limited warranty.
Baja Designs LP Series Unique Design
Unique Design – The unique Baja Designs futuristic styling through 3D light face with flat and sloping surfaces blended to the case offers the LP9, LP6 and LP4 a characteristic unlike any other light on the market today.
LP9 Features
Detailed Specs
Sport
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes Beam
Lighting Quantity 9
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type LP9 Sport LED Light Pod
Secondary Amperage Rating (A) 1.520
Secondary Brightness (Lumens) 2302
Secondary Light Quantity 6 LEDs
Secondary Lighting Technology LED
Secondary Lighting Type Integrated Peripheral Technology (IPT)
Secondary Wattage (W) 21
Terminal Connector DT06-4S Deutsch
Terminal Type Mating Connector
Universal or Specific Universal
Wattage (W) 88.320
Wiring Harness Included No
Amperage Rating (A) 6.400
Average Rated Life (hr.) 49,930
Beam Pattern Spot
Bezel Material Powder Coat Cast Aluminum
Brightness (Lumens) 9421
Description Spot; Clear
Housing Color Black
Housing Material Powder Coat Cast Aluminum
Standards & Compliance
Patent No. 5,504,603
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Dimensions
Depth (in.) 3.250
Height (in.) 8
Length (in.) 8
Weight (lbs.) 6.500
Pro
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes High Beam/Low Beam/Day-Time Running Backlighting
Lighting Quantity 9
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type LP9 Pro LED Light Pod
Secondary Amperage Rating (A) 1.520
Secondary Brightness (Lumens) 2302
Secondary Light Quantity 6 LEDs
Secondary Lighting Technology LED
Secondary Lighting Type Integrated Peripheral Technology (IPT)
Secondary Wattage (W) 21
Terminal Connector DT06-4S Deutsch
Terminal Type Mating Connector
Universal or Specific Universal
Wattage (W) 124.200
Wiring Harness Included No
Amperage Rating (A) 9
Average Rated Life (hr.) 49,930
Backlight Amperage Rating (A) 0.200
Backlight Wattage (W) 2.800
Beam Pattern Spot
Bezel Material Powder Coat Cast Aluminum
Brightness (Lumens) 12547
Description Spot; Clear
Housing Color Black
Housing Material Powder Coat Cast Aluminum
Standards & Compliance
Patent No. 5,504,603
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Dimensions
Depth (in.) 3.250
Height (in.) 8
Length (in.) 8
Weight (lbs.) 6.500
Racer
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Patent No. 5,504,603
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Dimensions
Depth (in.) 3.250
Height (in.) 8
Length (in.) 8
Weight (lbs.) 6.500
Specifications
Amperage Rating (A) 9.600
Average Rated Life (hr.) 49,930
Backlight Amperage Rating (A) 0.200
Backlight Wattage (W) 2.800
Beam Pattern Racer Edition Spot
Bezel Material Powder Coat Cast Aluminum
Brightness (Lumens) 8374
Description Racer Edition Spot; Clear
Housing Color Black
Housing Material Powder Coat Cast Aluminum
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes High Beam/Low Beam/Day-Time Running Backlighting
Lighting Quantity 9
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type LP9 Racer Edition LED Light Pod
Secondary Amperage Rating (A) 1.520
Secondary Brightness (Lumens) 2302
Secondary Light Quantity 6 LEDs
Secondary Lighting Technology LED
Secondary Lighting Type Integrated Peripheral Technology (IPT)
Secondary Wattage (W) 21
Terminal Connector DT06-4S Deutsch
Terminal Type Mating Connector
Universal or Specific Universal
Wattage (W) 132.480
Wiring Harness Included No
