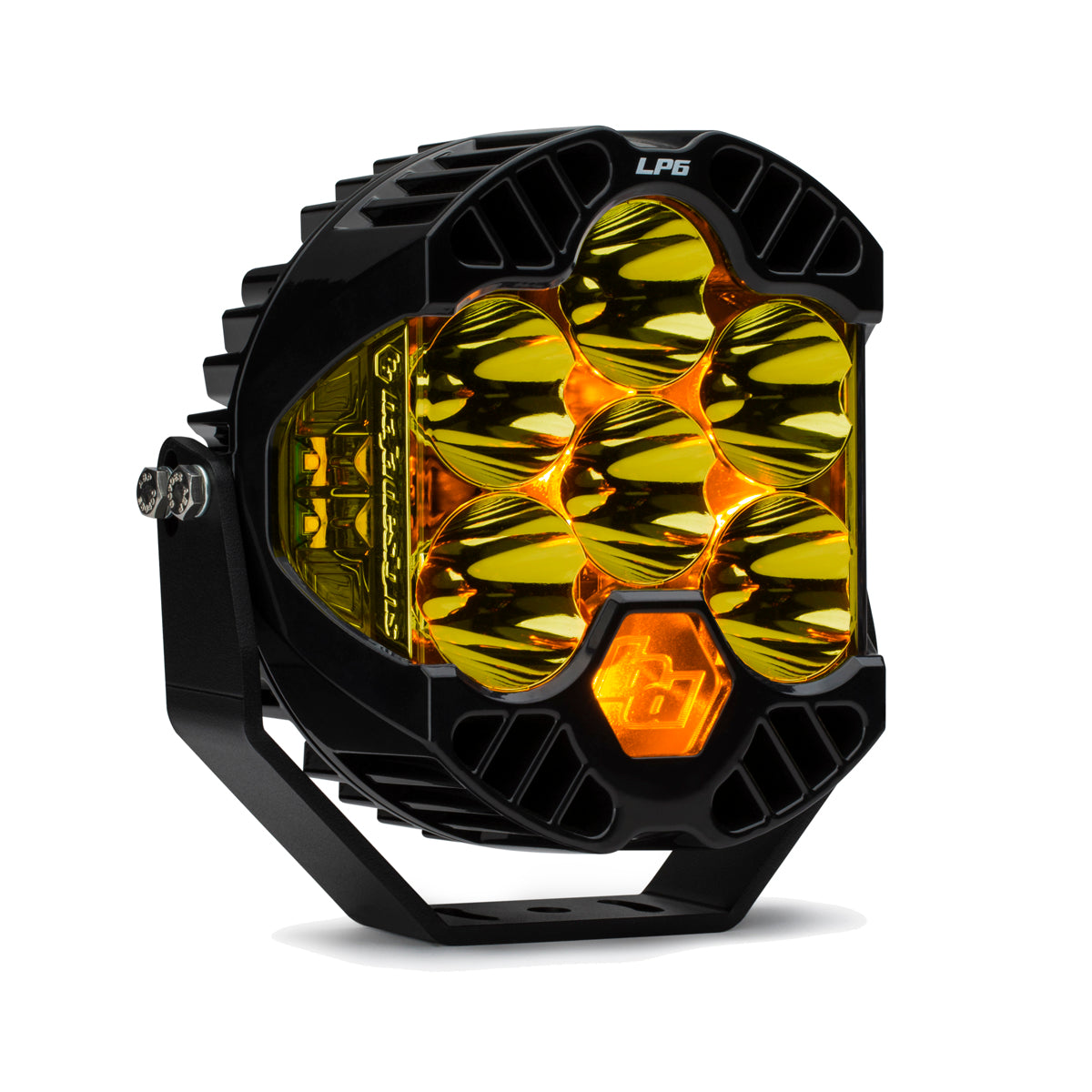

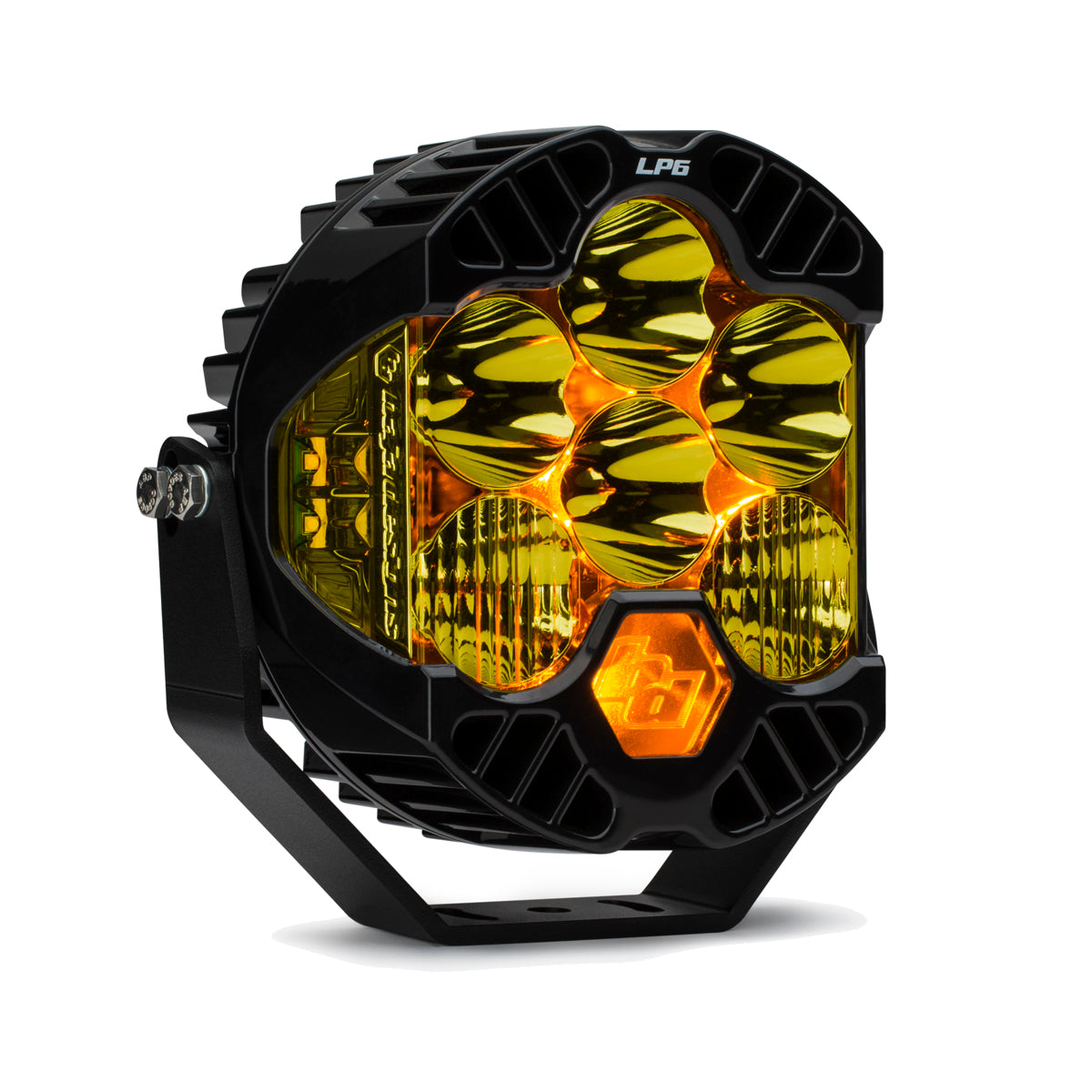

LP6 Pro LED Auxiliary Light Pod - Universal

The LP6 Pro stands as a 6-inch powerhouse, delivering a total of 11,225 lumens and a 200-degree spread of usable LED light through our dedicated Integrated Peripheral Technology (IPT). For optimal performance, the LP6 integrates Direct Ducted Cooling (DDC) technology, allowing efficient air circulation over the rear heat sinks. Featuring colored daytime running light, low power, and high-power modes, the LP6 effortlessly caters to all your lighting needs.

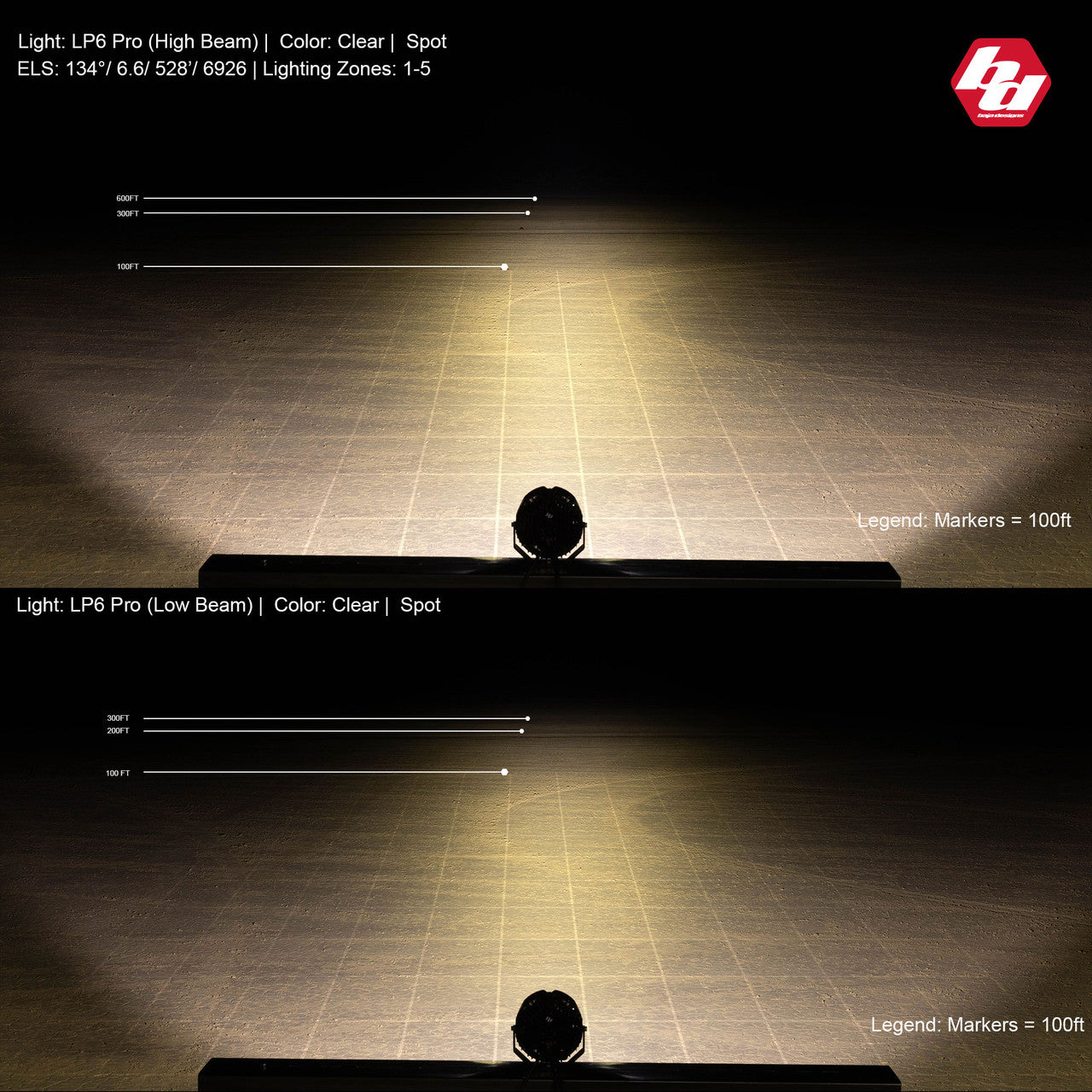

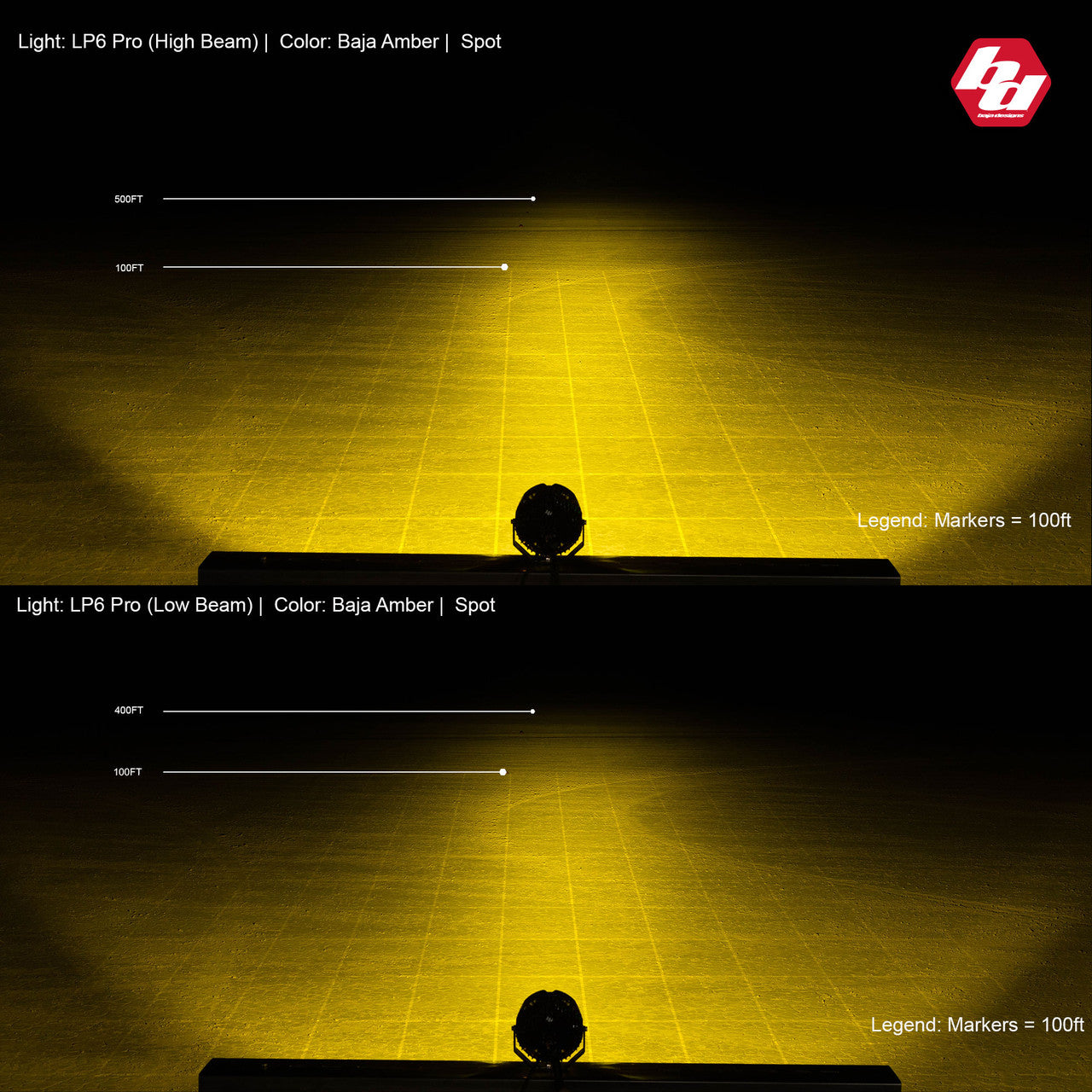

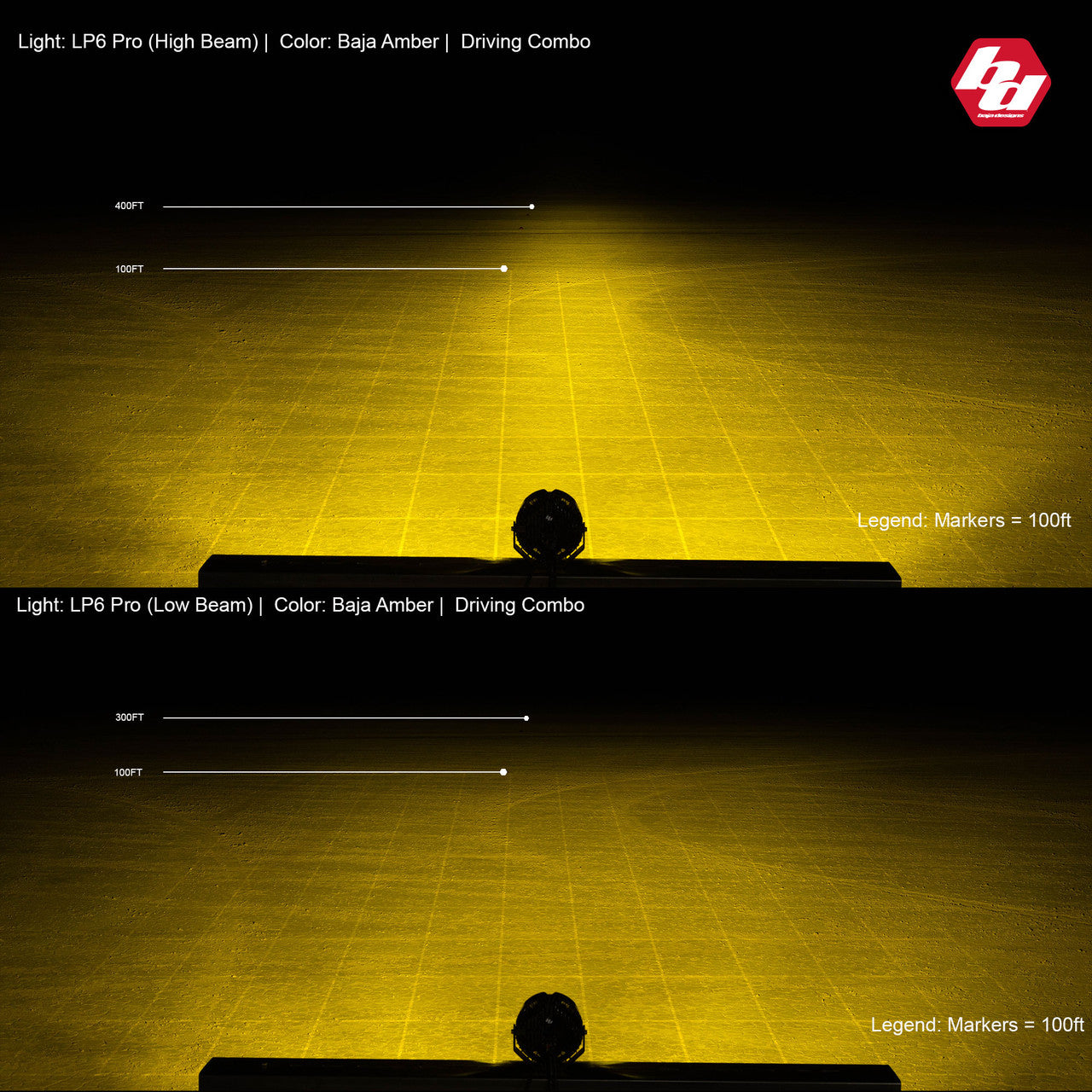

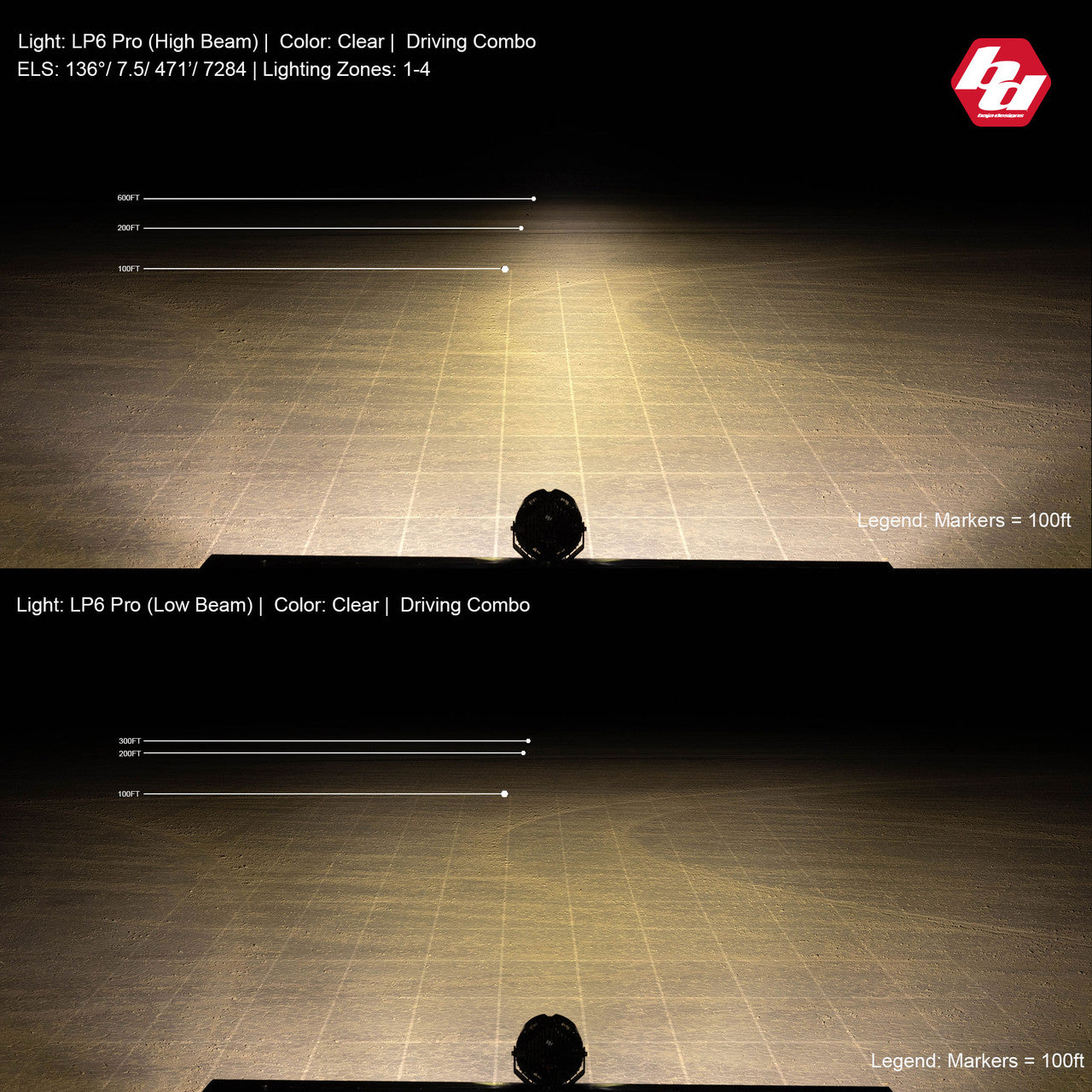

Available in various patterns, the LP6 Pro suits diverse preferences. The Driving/Combo pattern offers maximum trail coverage with a blend of driving (42 degrees) and spot (8 degrees) optics for both near-field and distance applications. The Spot pattern, with its longer and narrower 8-degree beam focus, illuminates further down the trail or road, ideal for use with additional wide cornering or driving/combo auxiliary lights in Lighting Zones 4 & 5.

With additional red, blue, or green backlight options alongside the original amber, the LP6 Pro allows enthusiasts to customize their vehicle for shows, photo shoots, or anywhere attention is desired.

Disclaimer: Baja Designs LP series lights with red, blue, or green backlights are intended for exhibition use only. Avoid usage on public roads to prevent confusion with law enforcement or emergency vehicles. The owner/driver is responsible for adhering to all highway equipment laws and safety regulations.

Satisfaction Guarantee – 30-Day Money Back Guarantee

Limited Lifetime Warranty – Complete Purchase Protection

uService – Replaceable Lenses And Optics

ClearView – All The Light, Right Where You Need It

MoistureBlock – Waterproof, Rain Proof, Submersible

CopperDrive – Safely Driving LEDs at 100%

5000K Daylight – Less Driver Fatigue, Natural Color

Installation

Disclaimer

Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care. Buyer acknowledges that some products may only be used when off-roading, and Buyer will comply with all vehicle and road safety guidelines. Buyer is solely responsible for (and will indemnify and hold Bestop harmless for) any claims, losses, damages, fines, fees, costs, or other amounts arising out of Buyer’s non-compliance with these provisions.

Baja Designs California Proposition 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Detailed Specs

Specifications
Lens Color    Clear
Lens Material    Hardcoated Polycarbonate
Light Quantity    1
Lighting Modes    High Beam/Low Beam/Day-Time Running Backlighting
Lighting Quantity    6
Lighting Technology    LED
Lighting Type    Forward Projecting
Mounting Hardware Included    Yes
Mounting Hardware Material    Stainless Steel
Overvoltage Protection    Built-In
Product Type    LP6 Pro LED Light Pod
Secondary Amperage Rating (A)    1.000
Secondary Brightness (Lumens)    1972
Secondary Light Quantity    4 LEDs
Secondary Lighting Technology    LED
Secondary Lighting Type    Integrated Peripheral Technology (IPT)
Secondary Wattage (W)    15
Terminal Connector    DT06-4S Deutsch
Terminal Type    Mating Connector
Universal or Specific    Universal
Wattage (W)    103.500
Wiring Harness Included    No
Amperage Rating (A)    7.500
Average Rated Life (hr.)    49,930
Backlight Amperage Rating (A)    0.300
Backlight Wattage (W)    4.140
Beam Pattern    Spot
Bezel Material    Powder Coat Cast Aluminum
Brightness (Lumens)    11225
Description    Spot; Clear
Housing Color    Black
Housing Material    Powder Coat Cast Aluminum
Standards & Compliance
Standards/Compliance (Durability)    Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance)    IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance)    IP69K (Waterproof up to 9ft & Pressure Washable)
Dimensions
Depth (in.)    3.200
Height (in.)    6.500
Length (in.)    6.500
Weight (lbs.)    4.200
