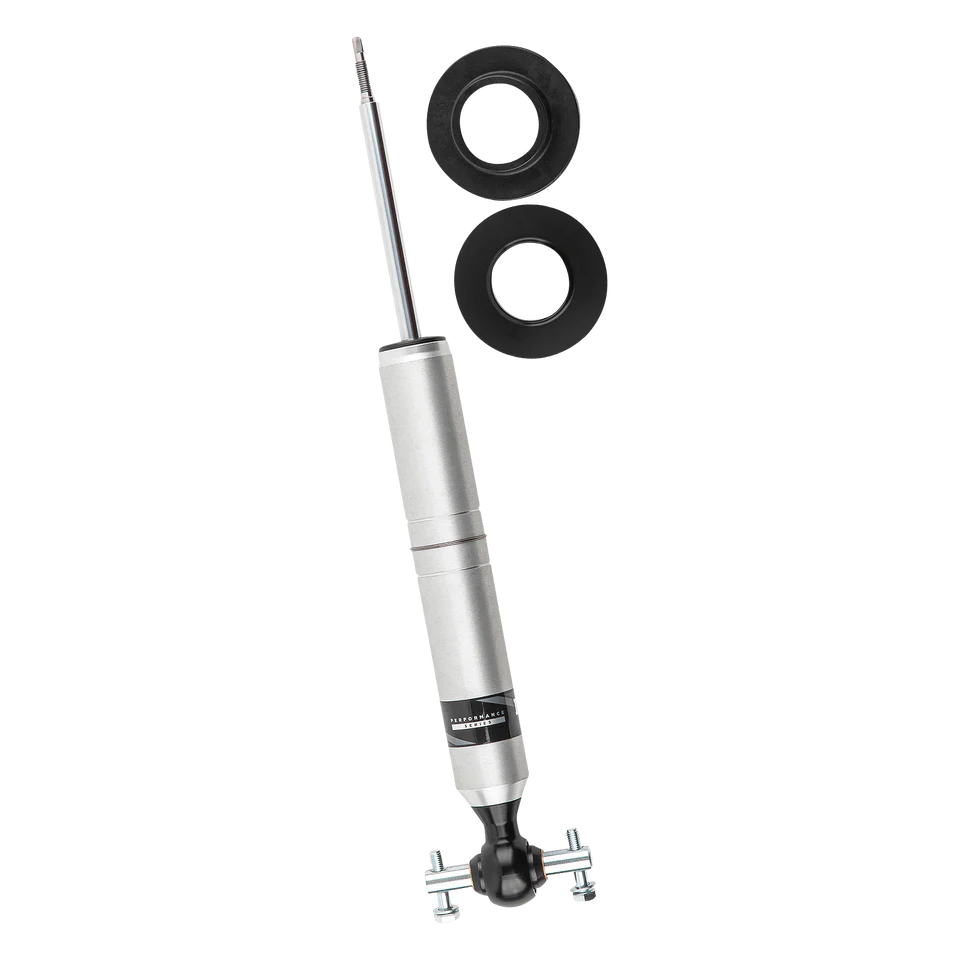

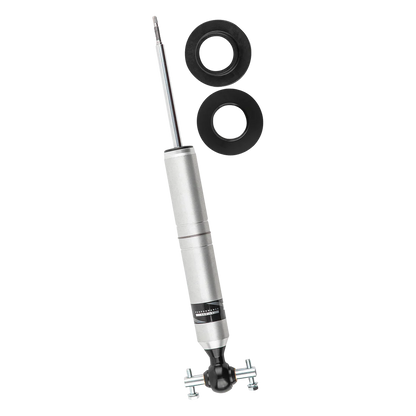

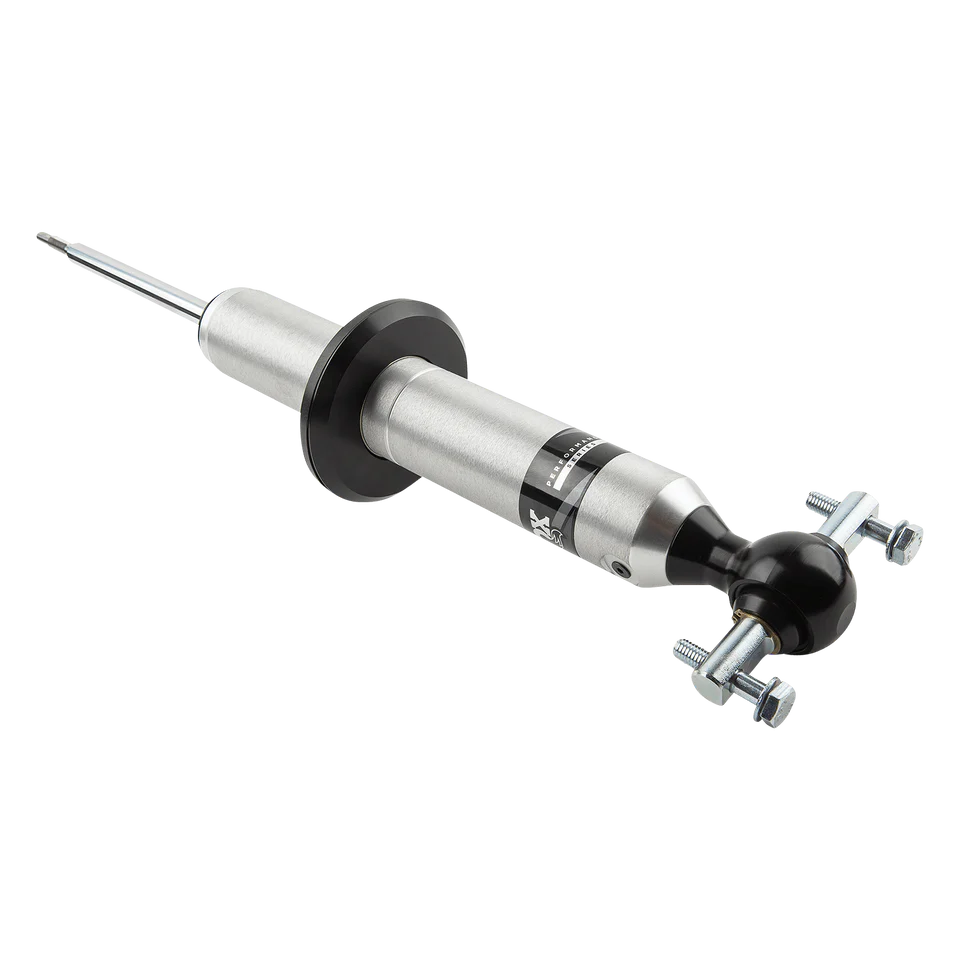

Fox 2.0 Performance Series Shocks (Front) | 3rd Gen Tacoma

Description

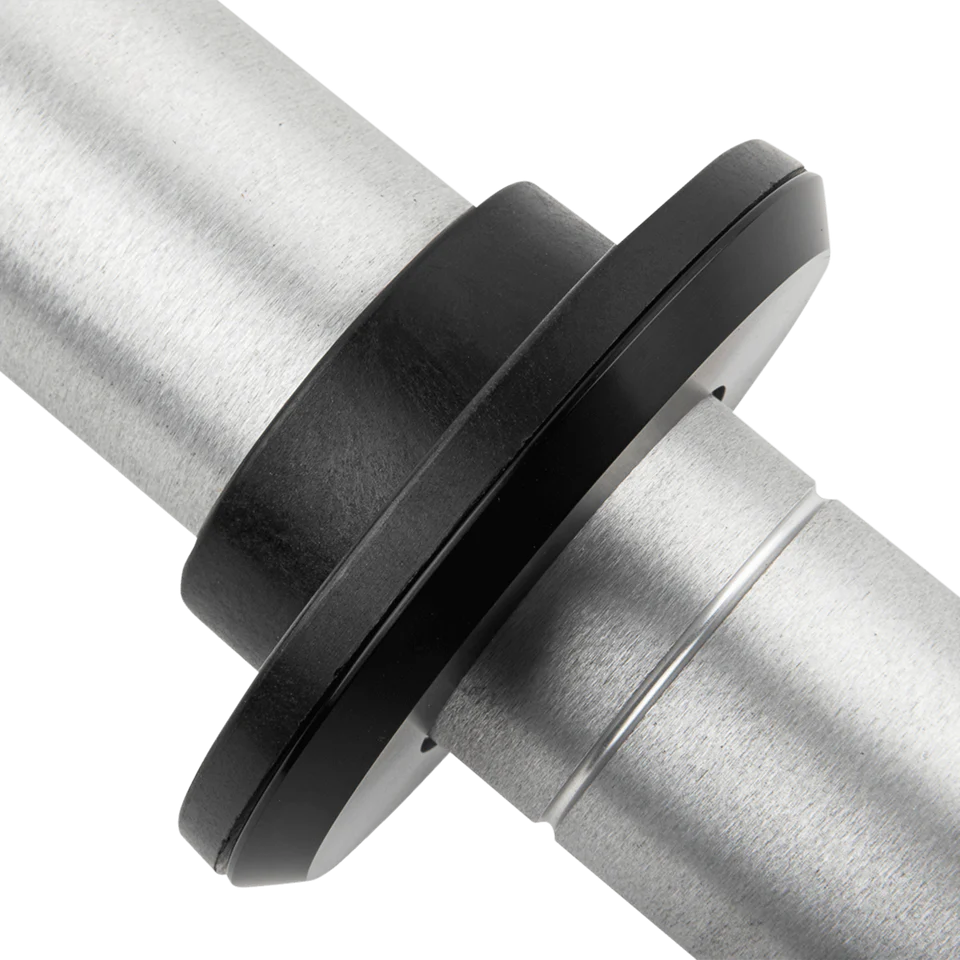

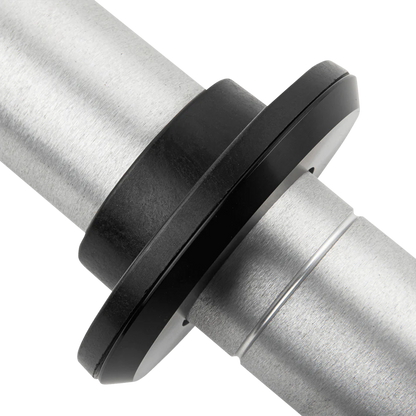

Fox Performance Series 2.0 Coil-Over Snap Ring IFP shock is a bolt-on solution, loaded with a long list of features that set it apart. This includes a new custom-molded spring seat, allowing you to reuse your stock spring and mounting hardware, while providing excellent on- and off-road performance at an affordable price point. The precision, impact-extruded aluminum body is lightweight and rust resistant.

Inside the shock is an internal nitrogen-charged gas reservoir, contained by an internal floating piston (IFP) which separates the charged gas from the shock oil. The IFP eliminates oil from mixing with the nitrogen as is possible with the stock twin tube shocks,  allowing maximum performance from the factory-tuned precision valving. Three predetermined preload settings allow a choice of 0”, 1” or 2” of lift.

The easy-to-install Performance Series 2.0 Coil-Over Snap Ring IFP provides a comfortable on-road ride and predictable off-road handling in even the toughest conditions.

Sold as a single shock.

Specs

FEATURES

Includes New Spring Seat While Reusing Stock Spring And Mounting Hardware; Performance Tuned For Vehicle Specific Application; Aluminum Body Dissipates Heat Faster Than Steel; IFP Separates Oil From High-Pressure Nitrogen Gas

SERIES

Performance

TRAVEL

4.79

FRONT LIFT HEIGHT

0-1

BODY

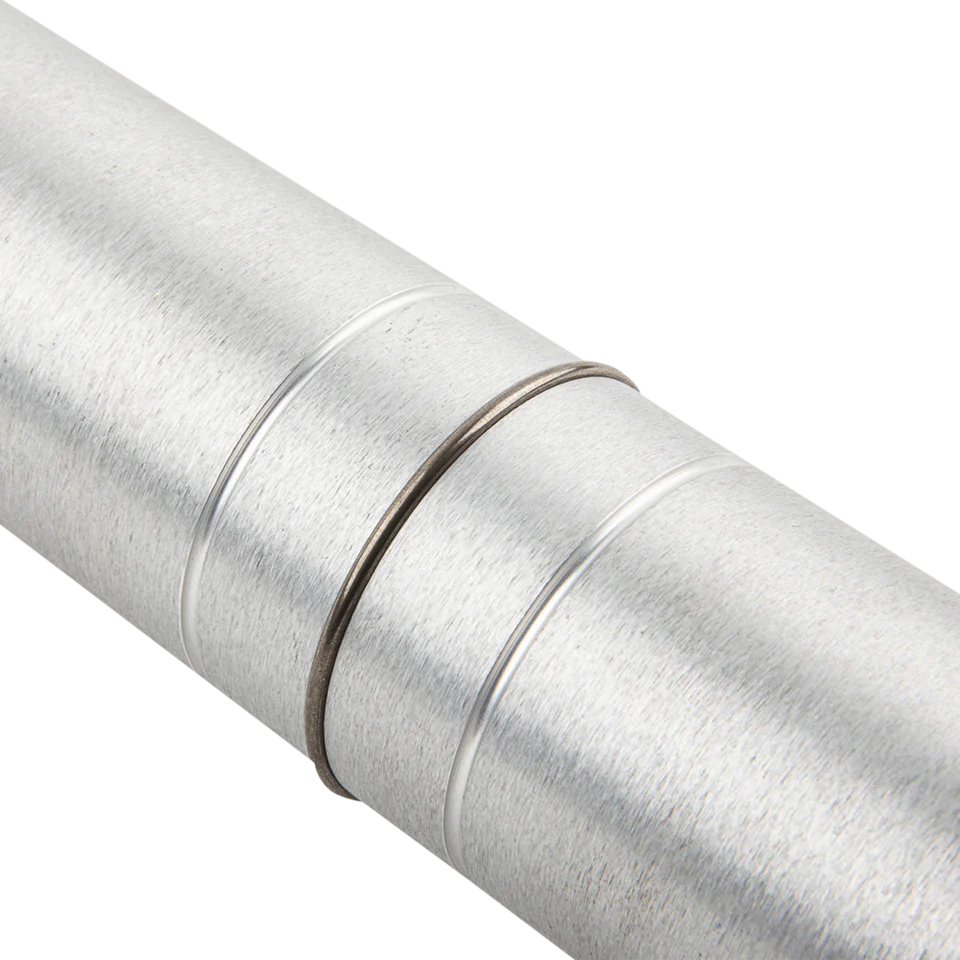

2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time

BODY PLATING

Clear-anodized for a durable finish

COMPONENTS

Black-anodized, CNC-machined 6061-T6 billet aluminum

SHAFT

5/8" hard chrome plated heat-treated alloy steel

PISTON

Race-developed high-flow piston design

VALVING

Application specific valving to maximize performance

SEALS

Redundant sealing pack system main seal, wiper seal, scraper seal

BEARINGS

Large diameter, heavy-duty spherical

EXTENDED LENGTH

22.09

COMPRESSED LENGTH

17.3

TOP MOUNT

Stem Top

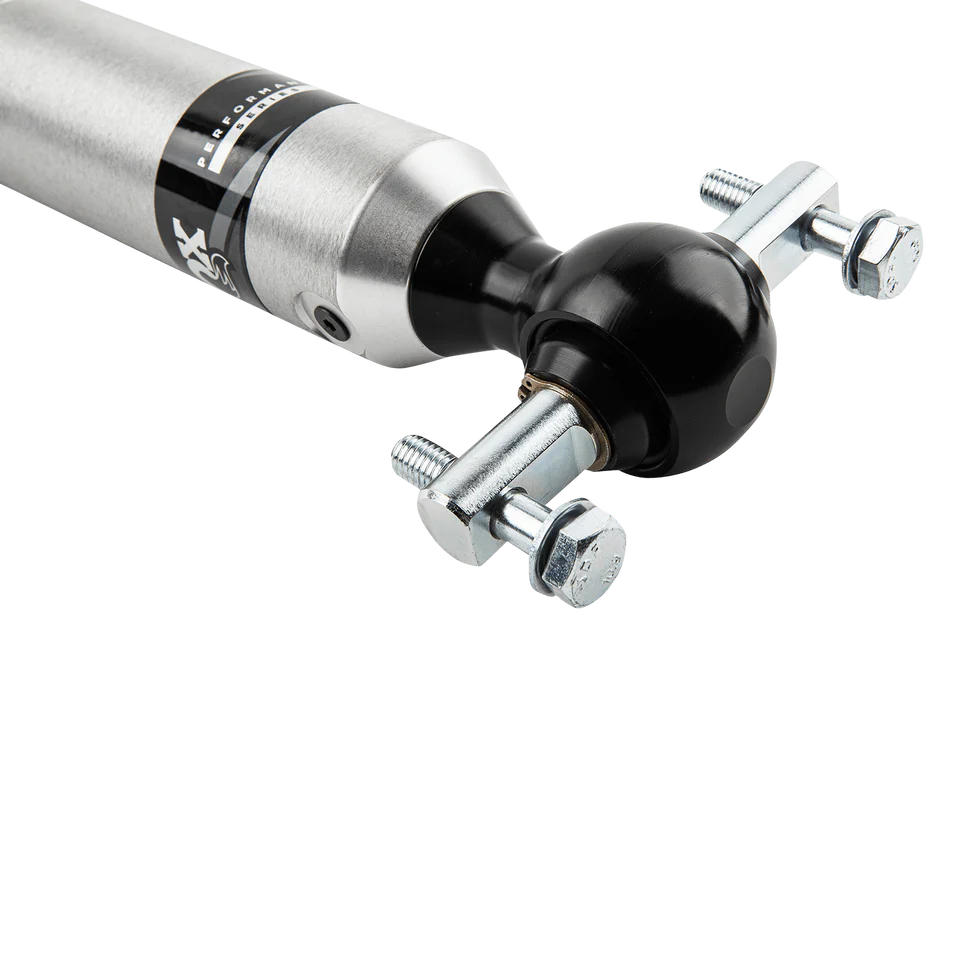

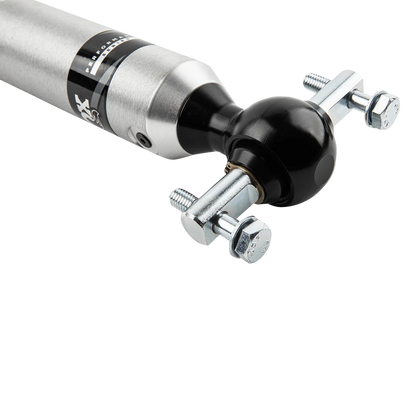

BOTTOM MOUNT

Eyelet

FITMENT NOTES

Fits 6 lug version only | Spring not included | Reuses stock mounting hardware | Not compatible with TRD Pro Springs
