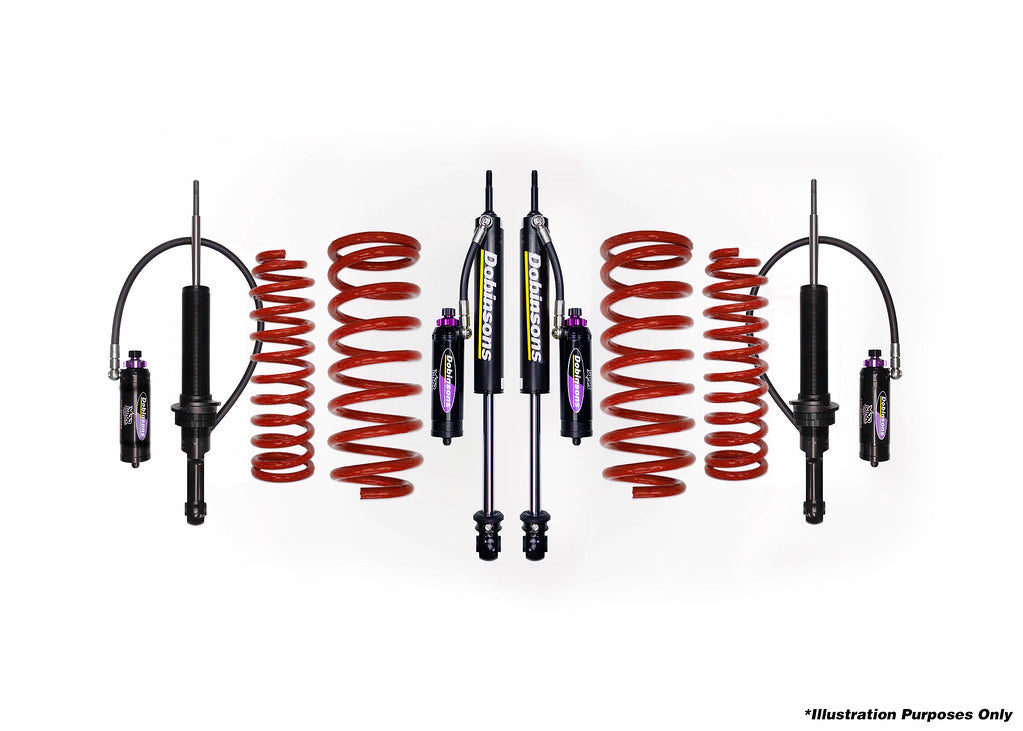

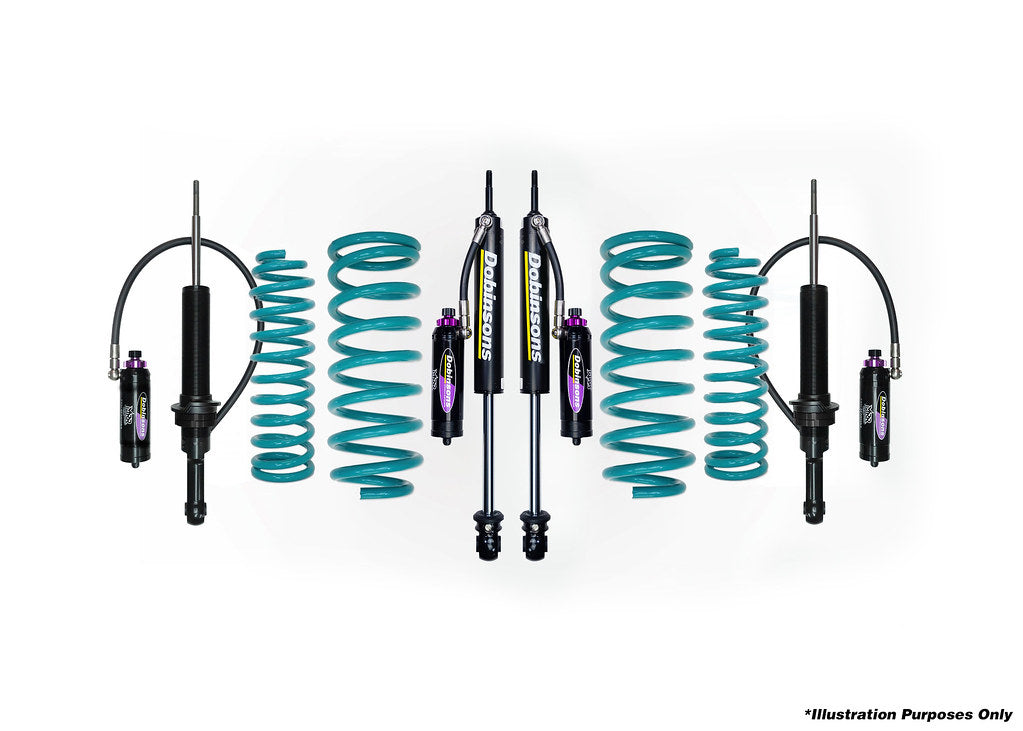

Dobinsons 3" MRR 3-Way Adjustable Lift for 2024+ Tacoma

****Coil seat for MRA59-A490 should be set at 251mm (9.9") from the strut bushing eye to top of coil isolator****

• Front Coil Spring Specs:
  • C59-820 (50mm - 2") 0-110lb Load
  • C59-822 (50mm- 2") 110-220lb Load
• Rear Coil Spring Specs:
  • C59-869V (30mm - 1.25") Stock Load
  • C59-817V (30mm - 1.25") 175-330lb Load
  • C59-819V (30mm - 1.25") 440-660lb Load
  • C59-821V (30mm - 1.25") 880-1210lb Load

3-way Adjustable shocks provide maximum adjustability to provide the perfect ride quality for you.

10 Stage High Speed Compression - For aggressive, high speed off roading through ruts and holes.

20 Stage Low Speed Compression - For creepy crawling and cornering

15 Stage Rebound - Control your coils, prevent bucking

60mm CNC Machined High Flow Billet Aluminium Race Piston

2.6" Precision Honed Shock Body

3mm Thick Heavy Duty DOM Seamless 66mm O.D. shock Body Precision Honed to +/- 0.04mm

Upgraded 3 Stage FKM-HNBR Sealing System

TSUGAMITM CNC machined components for precise tolerances

ParkerTM Braided High Pressure Hoses

5140 HV900 Hard Chrome Plated, Heat treated 18mm Micro-Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA

T6 6061 Height Adjustable Spring Seat

Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction, low-wear performance

60mm Full 6063 aluminum remote reservoir

Lightweight CNC Machined Low Friction floating piston

High Quality O.E.M. Grade Natural Rubber Bushings

Single Piece Lower Leg

EDP Surface Protection

Direct Bolt-On Design

CNC TIG Precision Welded Body End Mounts

Fully Rebuildable Design
