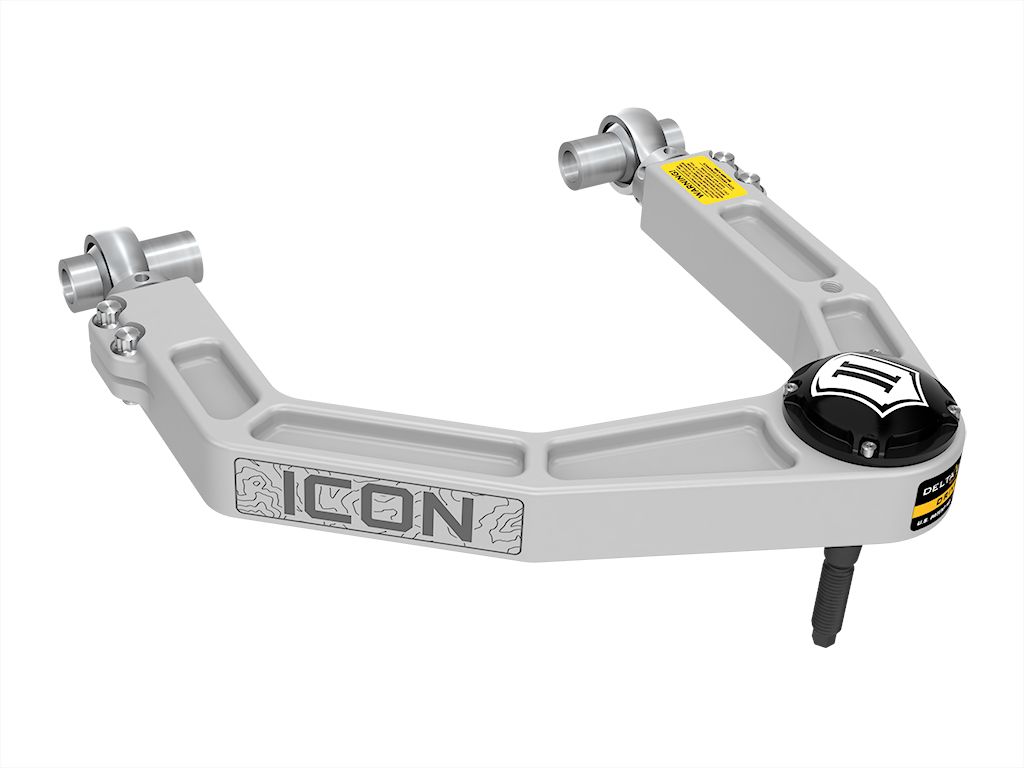

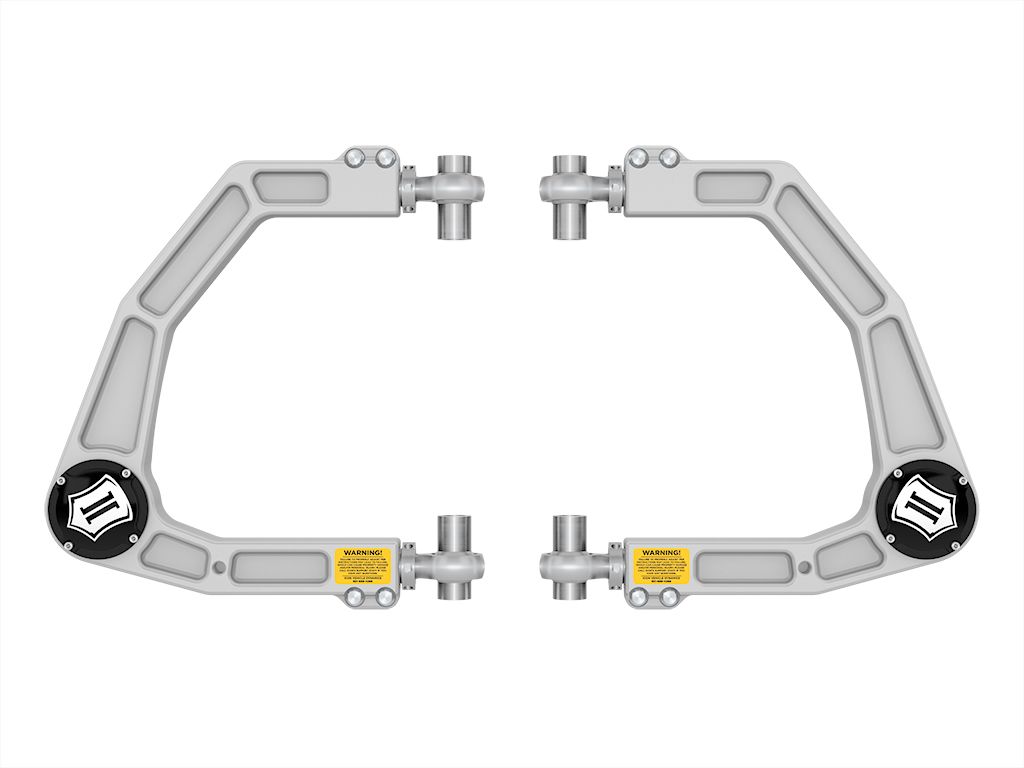

This Icon Vehicle Dynamics 58561DJ billet aluminum upper control arm kit for the Toyota Tundra is a superior suspension upgrade. The control arms are constructed from CNC machined 6061 aluminum and then finished in a matte anodization process for maximum strength and corrosion resistance. Featuring quality PTFE-lined end rods and machined adjuster sleeves that allow for on vehicle alignment, adjustment, precision caster and camber tuning. A major benefit of Icon upper control arms is the potential for increased wheel travel when paired with extended travel coilovers.

Delta Joint Difference- This control arm kit uses the unique and patented Delta Joint, a heavy duty high angle ball joint that combines the durability of a ball joint with the performance of a traditional uniball. Allowing for greatly increased articulation with little bind while also protecting from the elements. The Delta Joint features a zinc plated housing, providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. A metal on metal construction and a greasable design increase the longevity of the Delta Joint while at the same time allowing for noise free operation.

Top Features and Benefits

• CNC Machined 6061 Billet Aluminum
• Matte anodized finish for durability
• Allows for on-vehicle camber and caster adjustment
• Delta Joint combines the durability of a ball joint with the performance of a uni-ball, improved articulation and protection from the elements
• Better suspension performance in on and off-road condition
• Allows for additional wheel travel
• PTFE-Line FK Rod Ends
• O-Ring sealed Delta Joint cover cap to protect from the elements
• 5 year limited warranty

Installation

Important Notes

• Factory Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys | 17" x 8.5" with 5.75" Backspace / 25mm Offset
• Recommended Aftermarket Tires: 35" x 12.50"
• TECH NOTE: Compatible with 2022-2023 Tundra without TRD Sport Package equipped with 0-3.5” of front lift over stock
• TECH NOTE: Compatible with 2022-2023 Tundra with TRD Sport Package equipped with 0-4.5” of front lift over stock
• TECH NOTE: Compatible with 2022-2023 Tundra TRD Pro equipped with 0-2.5” of front lift over stock
• TECH NOTE: Compatible with 2023 Sequoia equipped with 0-4.5” of front lift over stock
