Diode Dynamics

Diode Dynamics 2014-2024 4Runner Behind the Grille Light Bar Kit

Diode Dynamics 2014-2024 4Runner Behind the Grille Light Bar Kit

Regular price $320.00
Regular price Sale price $320.00
Sale Sold out
Shipping calculated at checkout.

Features

  • Direct fitment on the 2014-2019 Toyota 4Runner and 2014-2023 Toyota 4Runner TRD Pro.

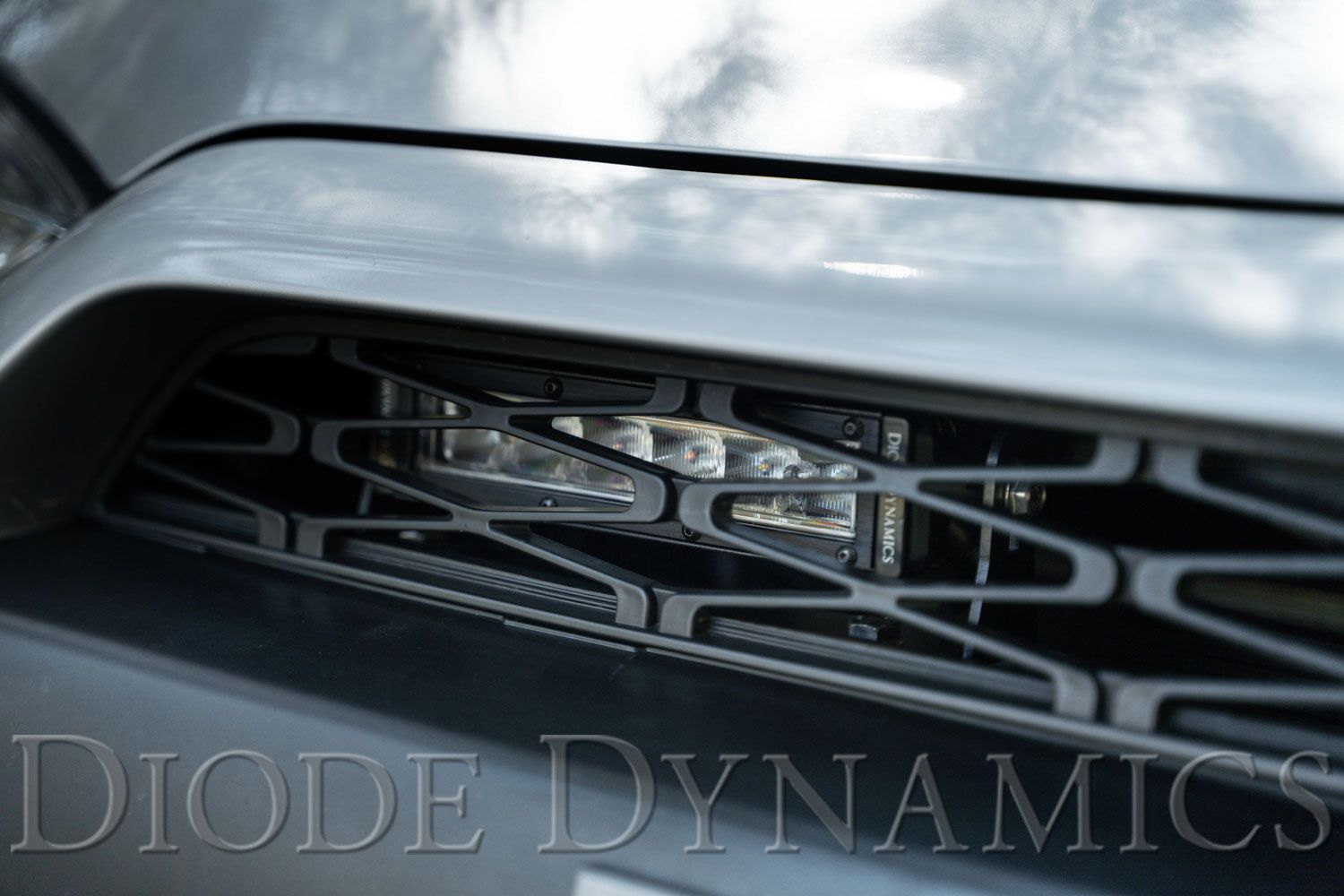

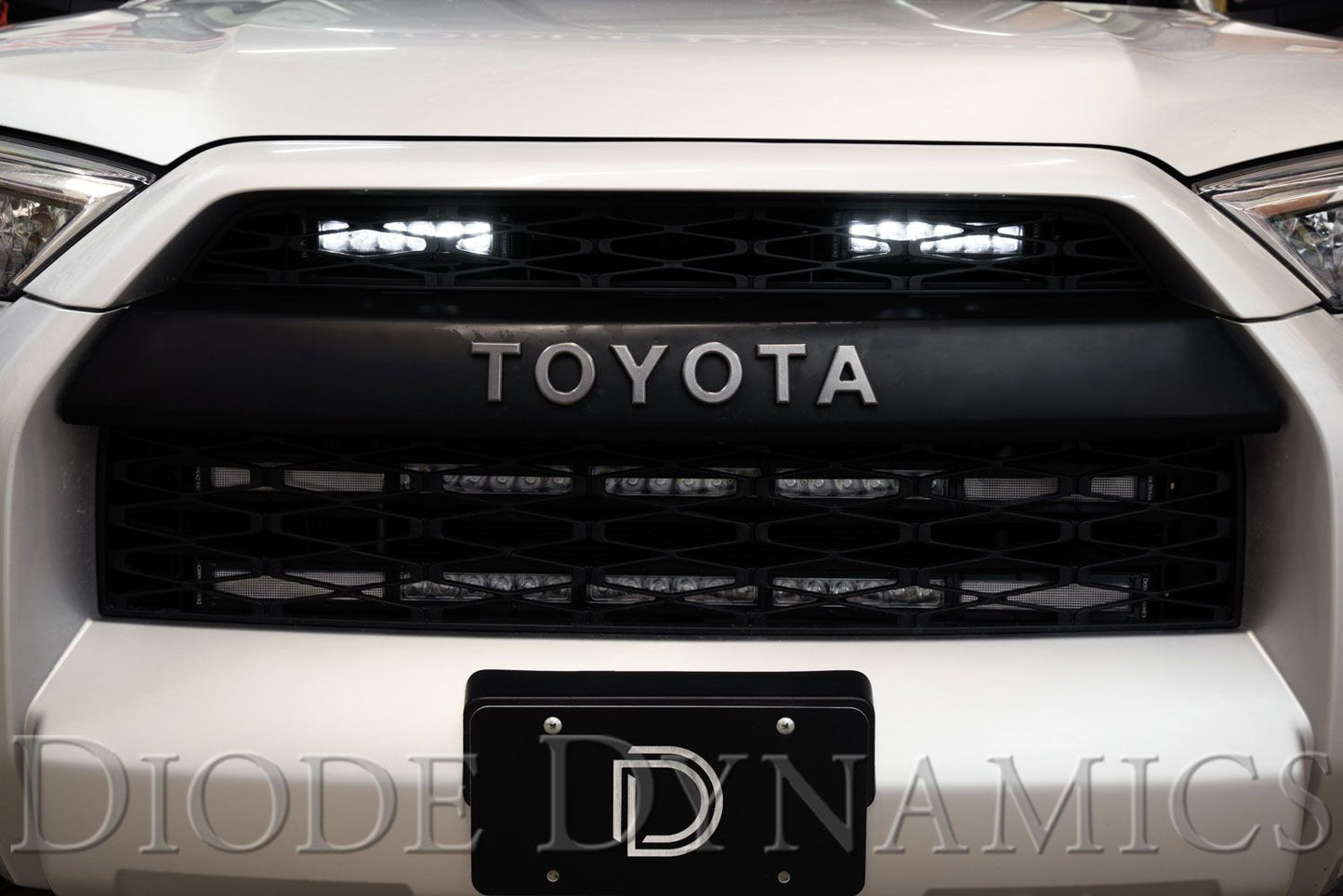

  • Allows you to mount two 6” light bars in the upper grille opening.
  • Street legal output as Driving Lights.
  • Utilizes existing mounting points for easy installation - no cutting or drilling required.

Overview

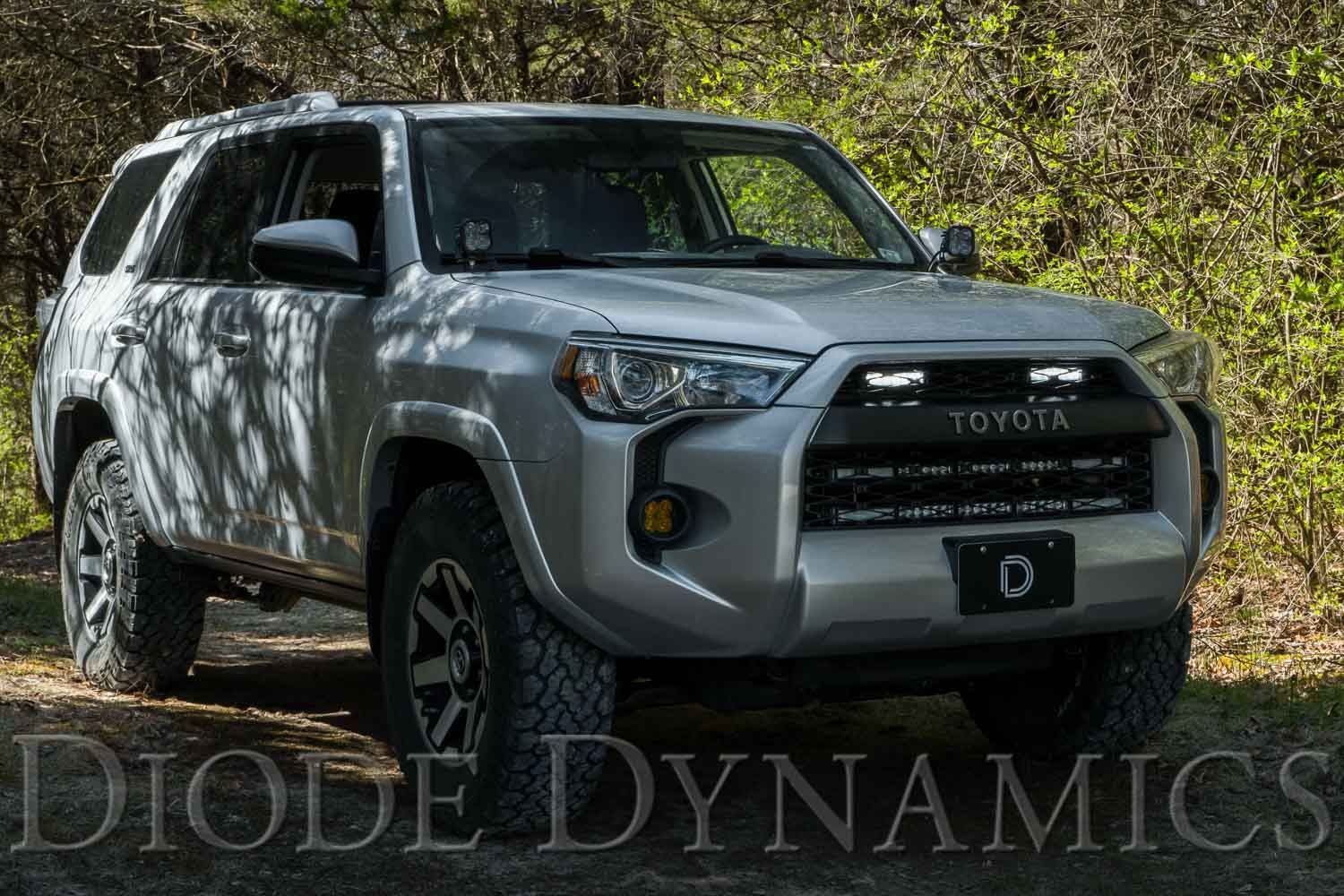

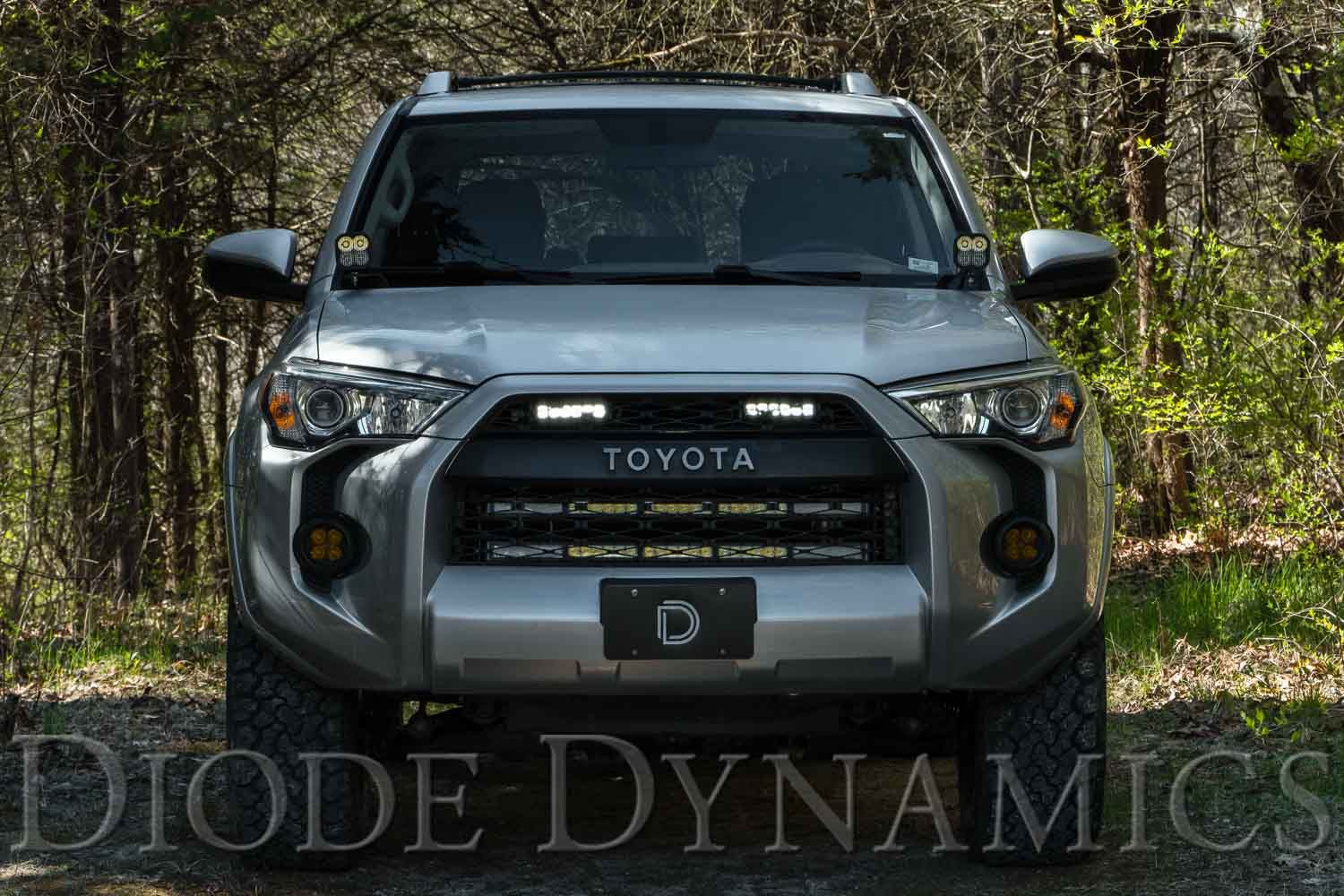

Perfect Fitment. The SAE/DOT LED Lightbar Kit for the 2014-2023 Toyota 4Runner from Diode Dynamics allows you to mount a pair of SS6 Stage Series 6" Light Bars in the upper grille opening. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required!

Street Legal Output. This kit isn't just for off road! It is legal for on-road use as driving lights (Please check your local laws and regulations for aiming, installation, and applicability). With the included plug-and-play wiring harness, you can control the kit through your toggle switch.

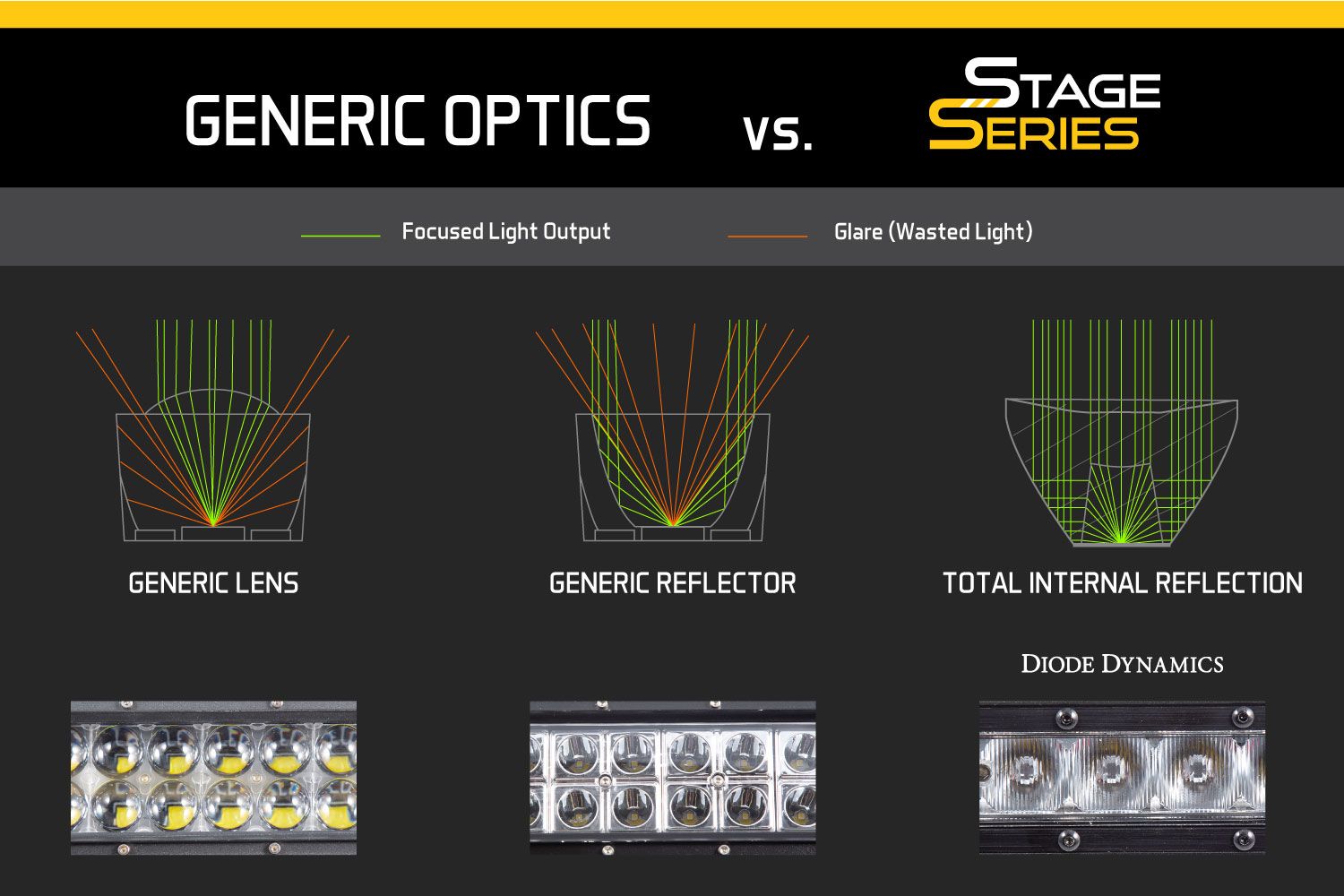

Designed For Performance. Using optical simulation modeling, Diode Dynamics Stage Series light bars have been designed for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package. Our light bars shine light in a highly-functional and useful beam pattern, much more focused than older LEDs on the market. Click here to learn more: Total Internal Reflection (TIR) Optics | Stage Series Video.

Functional Patterns. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!

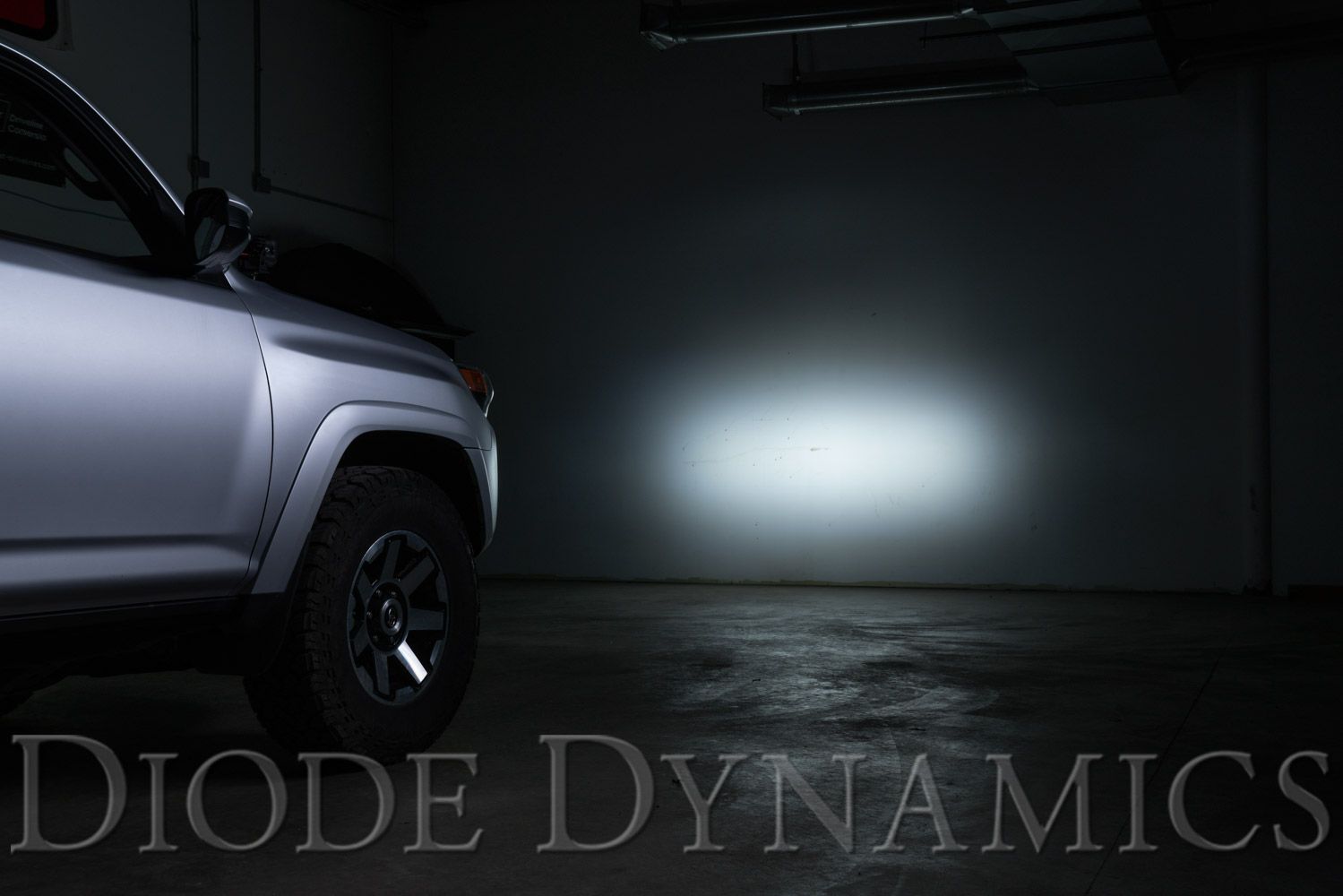

The Driving pattern was designed to supplement your high beams. Rather than a simple "spot" pattern, the Stage Series Driving pattern has a rectangular 20Wx8H degree pattern that is far more useful for directing light downrange at high speeds.

The Wide pattern provides an extremely wide field of view, without wasting any light in the sky above and provides a 100Wx8H degree spread of light. It was designed to supplement your fog lights and is perfect for driving in inclement weather.

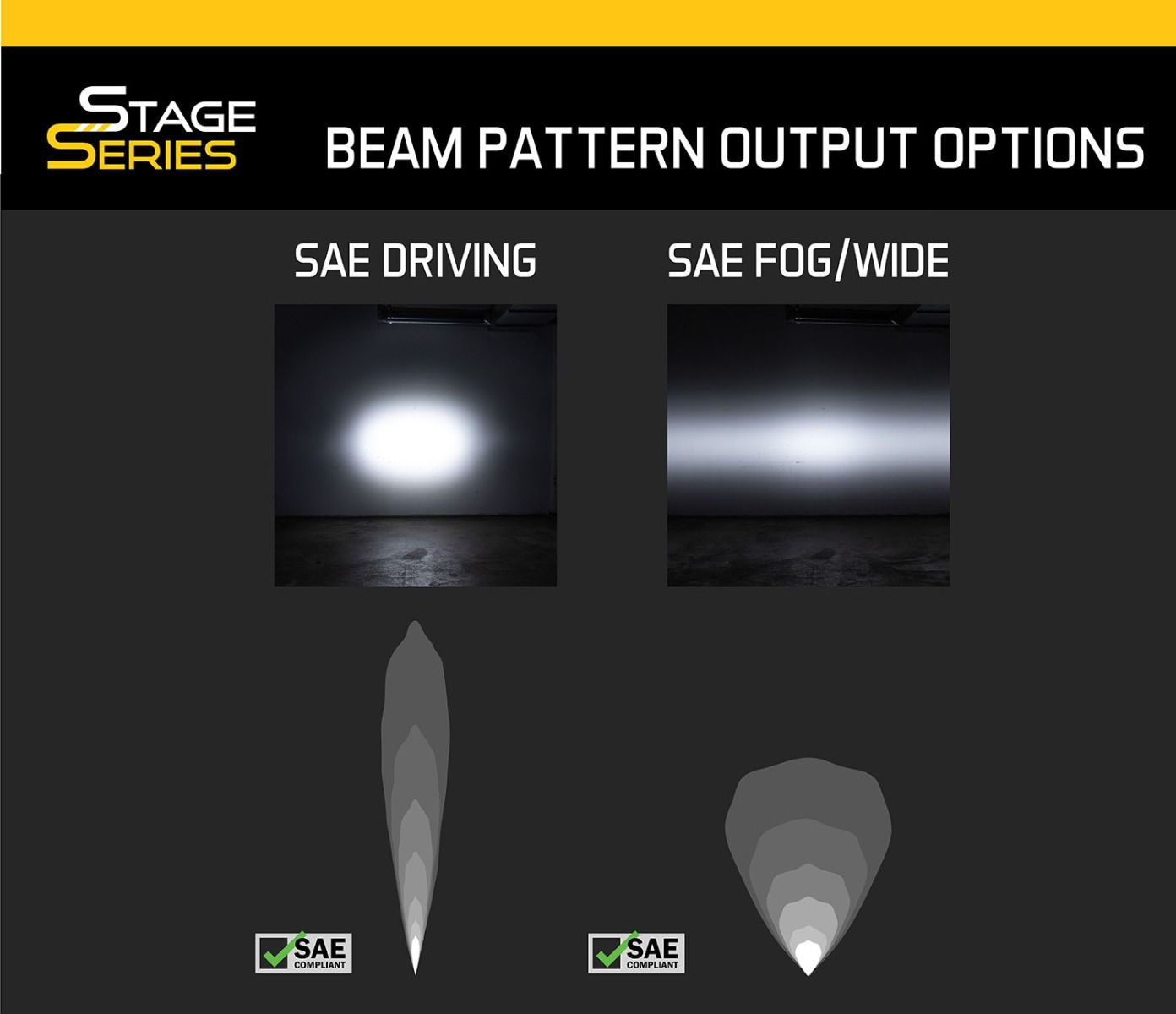

light bar beam patterns

Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike every other LED distributor, we assemble and engineer products ourselves in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations. Please contact us if you'd like to discuss your lighting project!

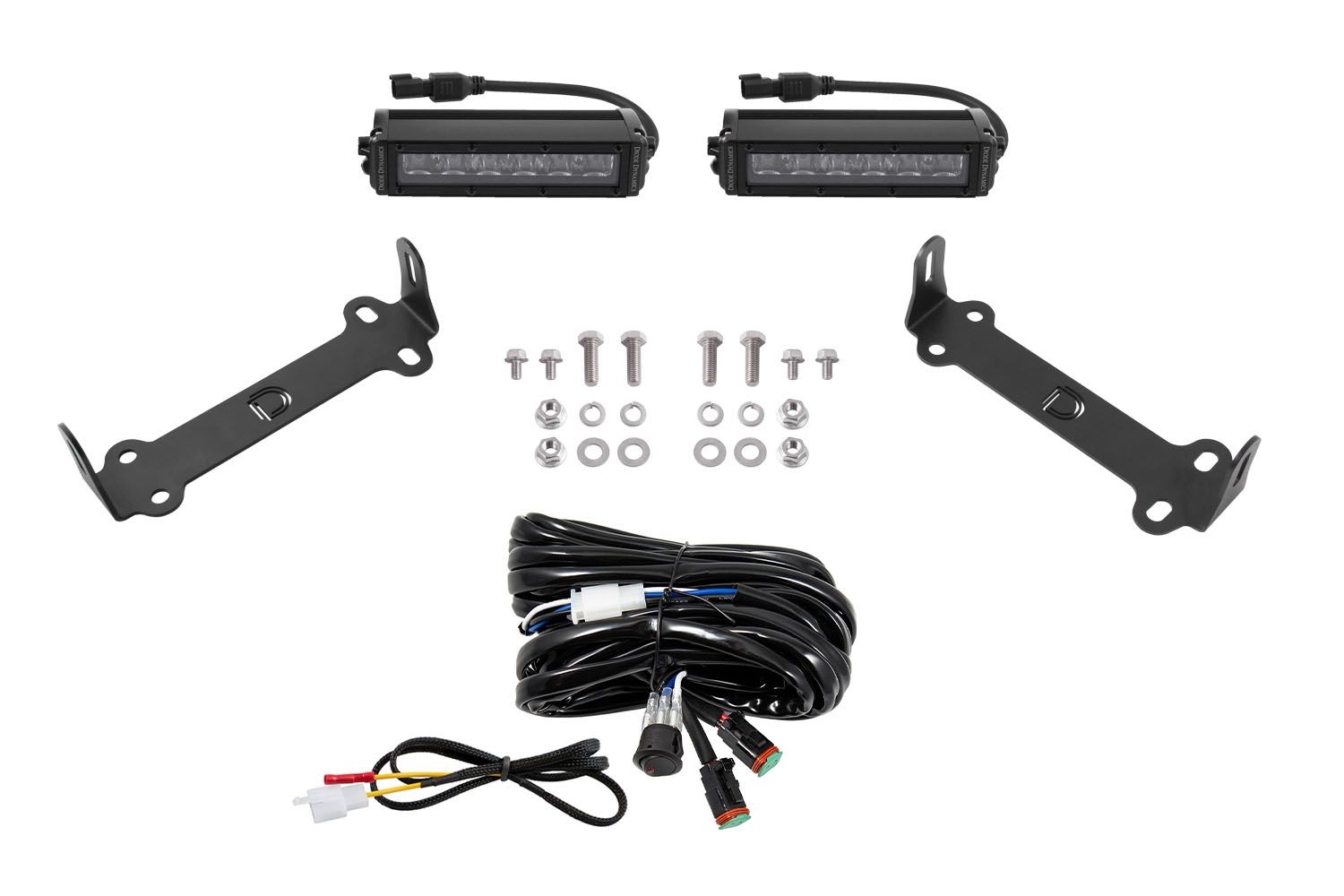

What's Included

In the Box:
  • Two (2) application-specific SS6 brackets for installation on the 2014-2023 Toyota 4Runner
  • Two (2) SS6 Stage Series lightbars
  • One (1) heavy-duty dual output 2-pin offroad wiring harness
  • One (1) aux switch adapter wire
  • Mounting hardware and guide

Warranty: 8 year warranty

100% Satisfaction Guarantee

Fitment

NOTE: Compatible with all 2014-2019 trims, but only compatible with 2020-2023 TRD Pro trim package.


Make: Toyota

Model: 4Runner

Years: 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023

Electrical Compatibility: No electrical issues (tested and confirmed)


Installation Instructions

Specifications

LENS COLOR/OPTICS

PEAK BEAM INTENSITY
(CANDELA)

ILLUMINANCE
(LUX @ 10M)
MEASURED OUTPUT
(LUMENS)
RAW OUTPUT
(LUMENS)
OUTPUT COLOR
White Driving 55,000 cd 550 lux 1,400 lm 2,280 lm 6000K White
White Wide 13,000 cd 130 lux 1,400 lm 2,280 lm 6000K White
Amber Driving 33,000 cd 330 lux 800 lm 1,140 lm 2000K Amber
Amber Wide 7,400 cd 74 lux 800 lm 1,140 lm 2000K Amber

Color Temp (CCT): 2000K, 6000K

Beam Angle: Wide, 100°x8°, Driving, 20°x8°

Power (watts): 26.6

Operating Voltage: 9-24V

Current (amps @ 14V): 1.9

Operating Temperature: -40C to 85C (-40F to 185F)

LED Emitter: Luxeon Z ES

Connector(s): Deutsch DT Input

Materials: Aluminum PCB, Polycarbonate Lens, Aluminum Heatsink

Cooling: Passive, heatsink

Product Dimensions (in): 7x3x1.63 If you would like CAD for your project, please contact us.
