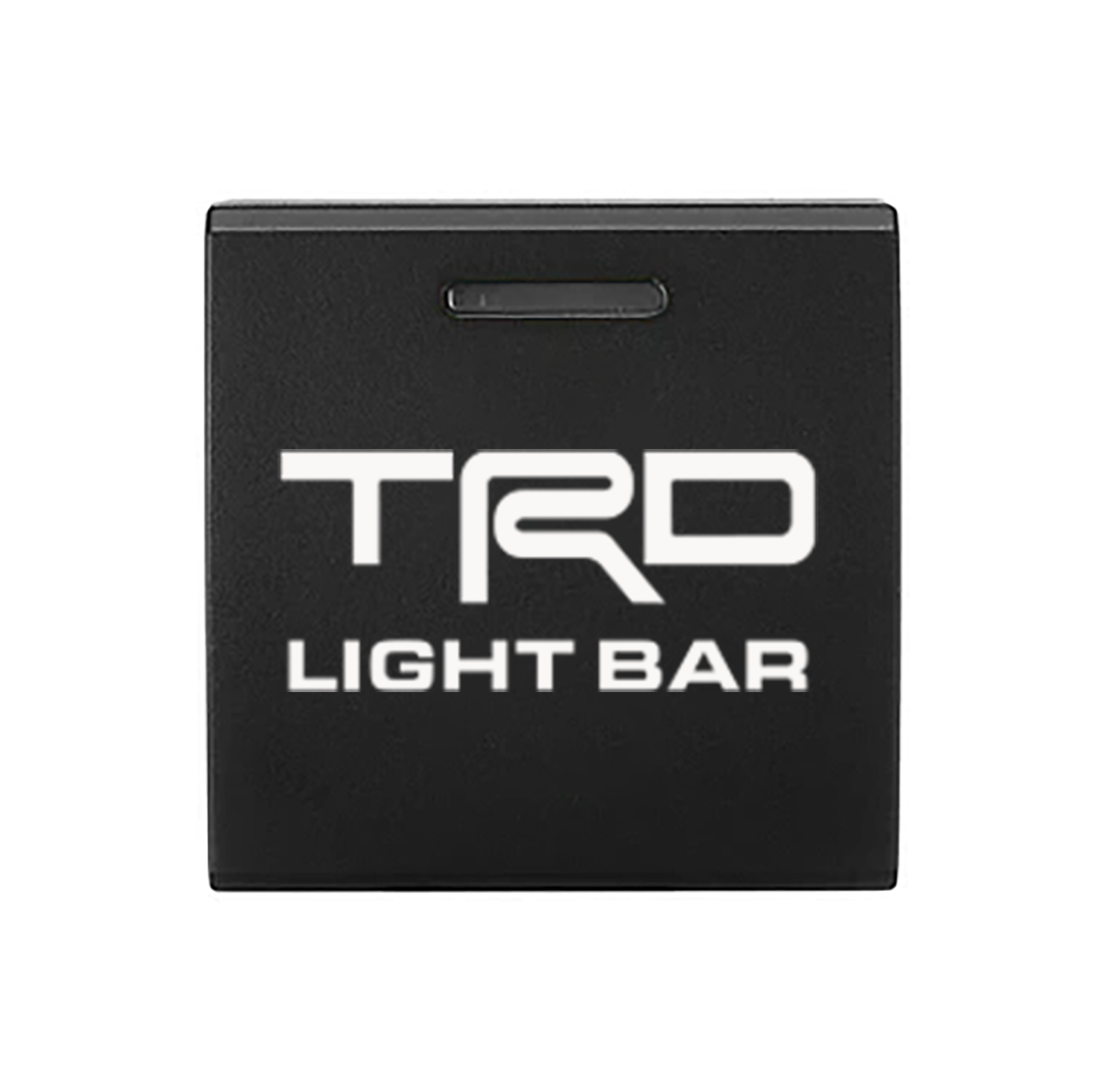

TRD Light Bar Dash Switch

Fits:

2022+ Tundra

2023+Sequoia

2024+ Tacoma

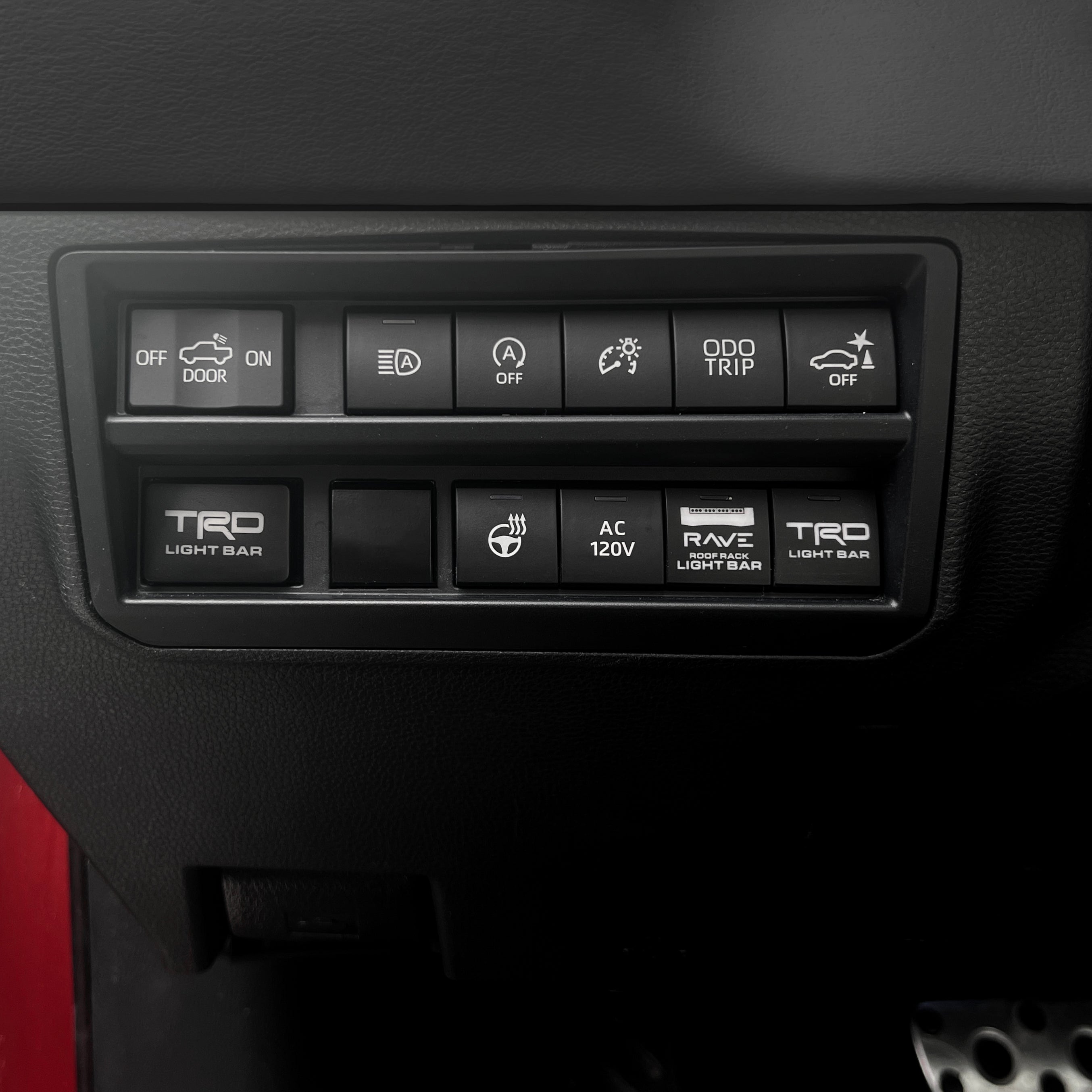

See dash cluster picture for placement. Rectangle option fits in the "B" spot, square option fits in the "A" spots.

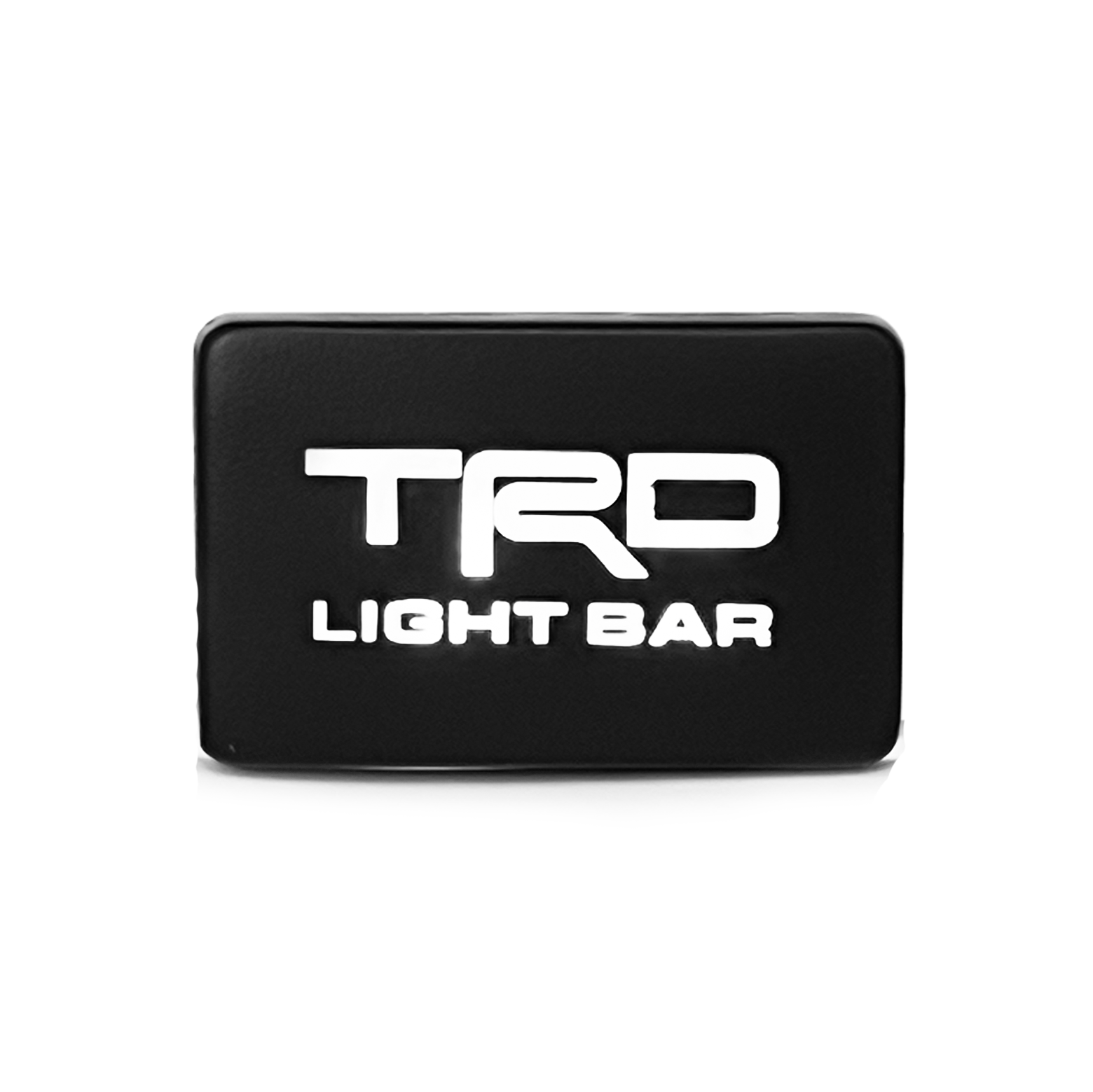

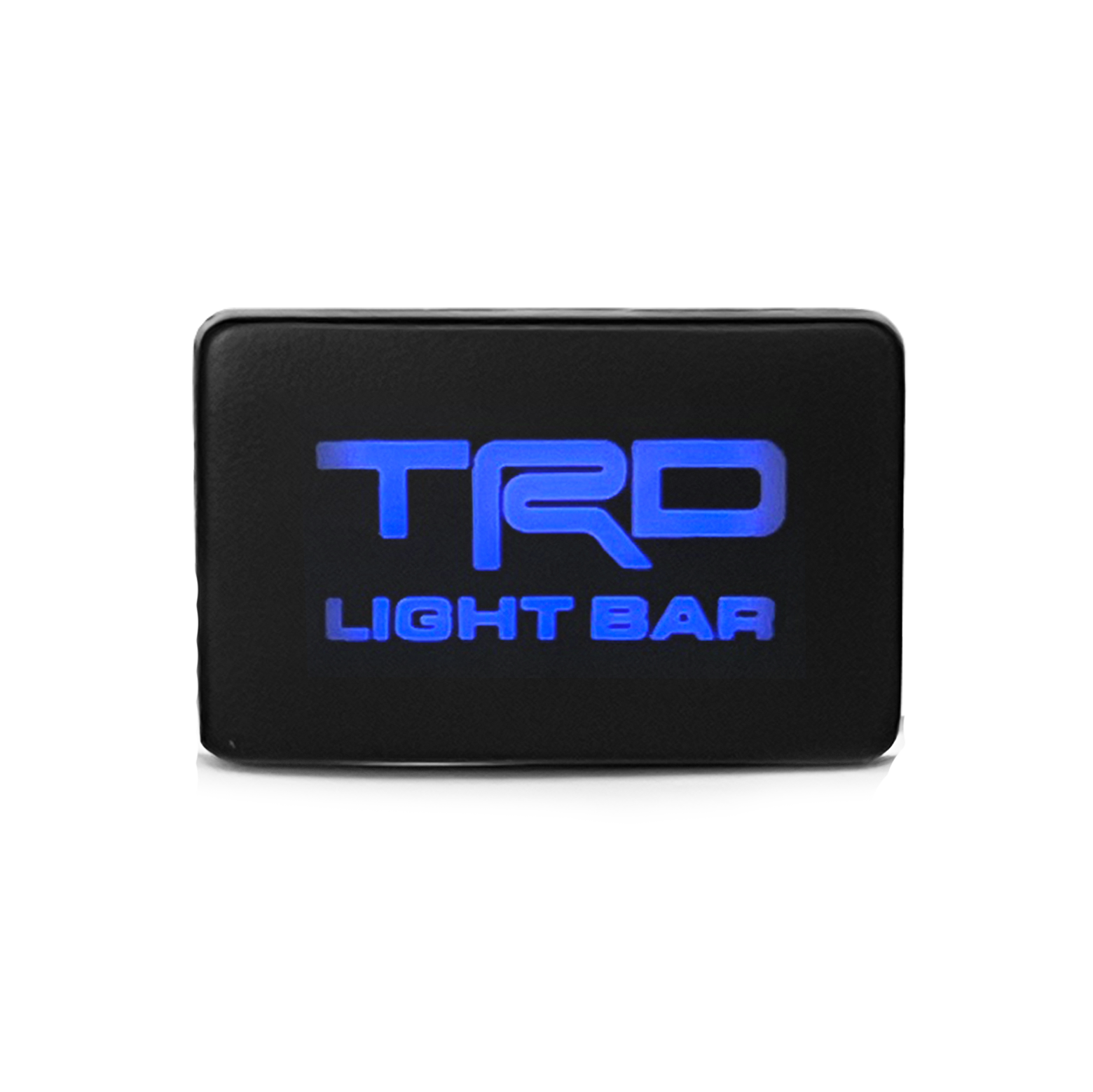

Rectangle Switch includes a 3D printed switch mount adapter.

In Stock. Ready to Ship.

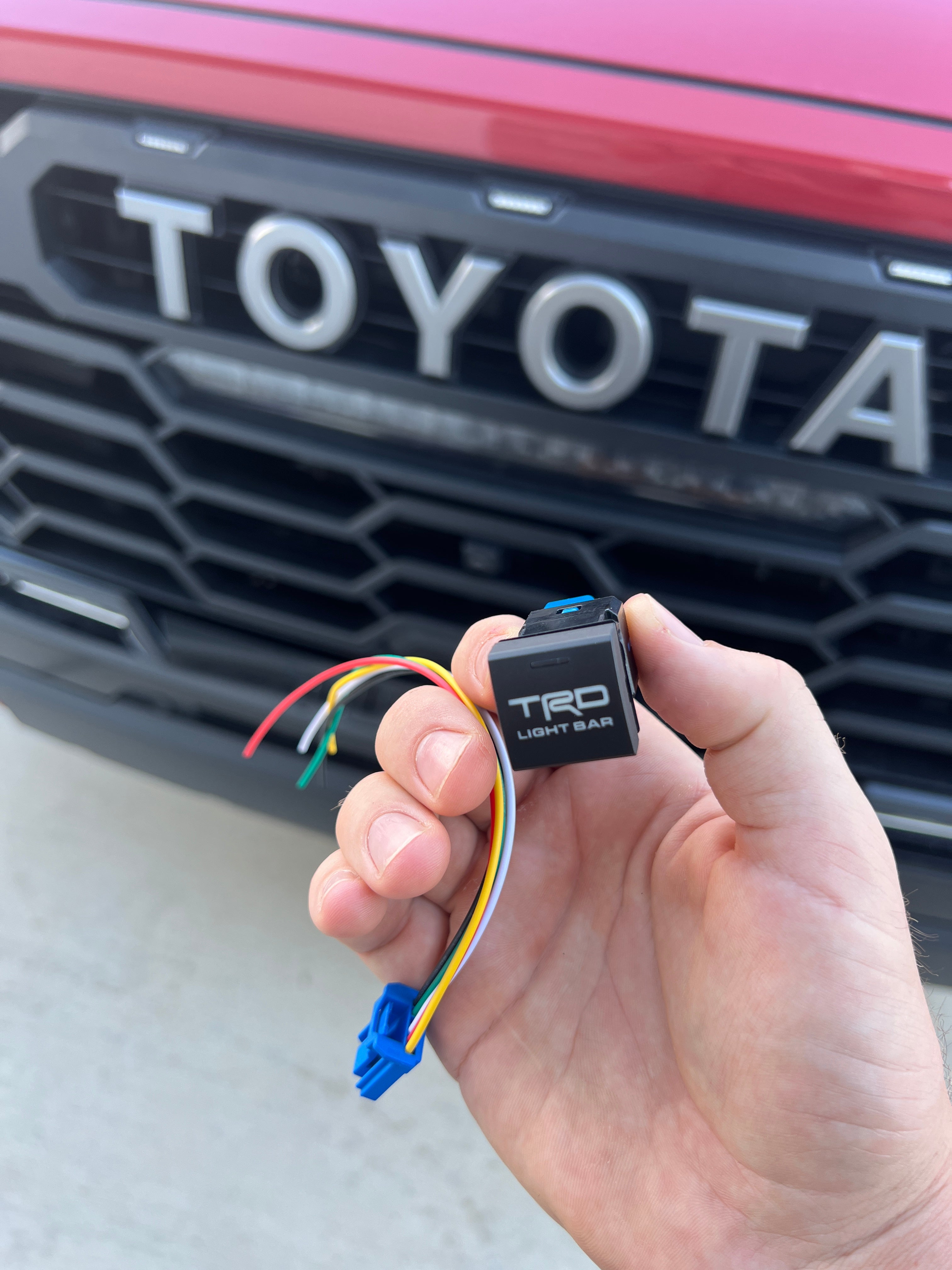

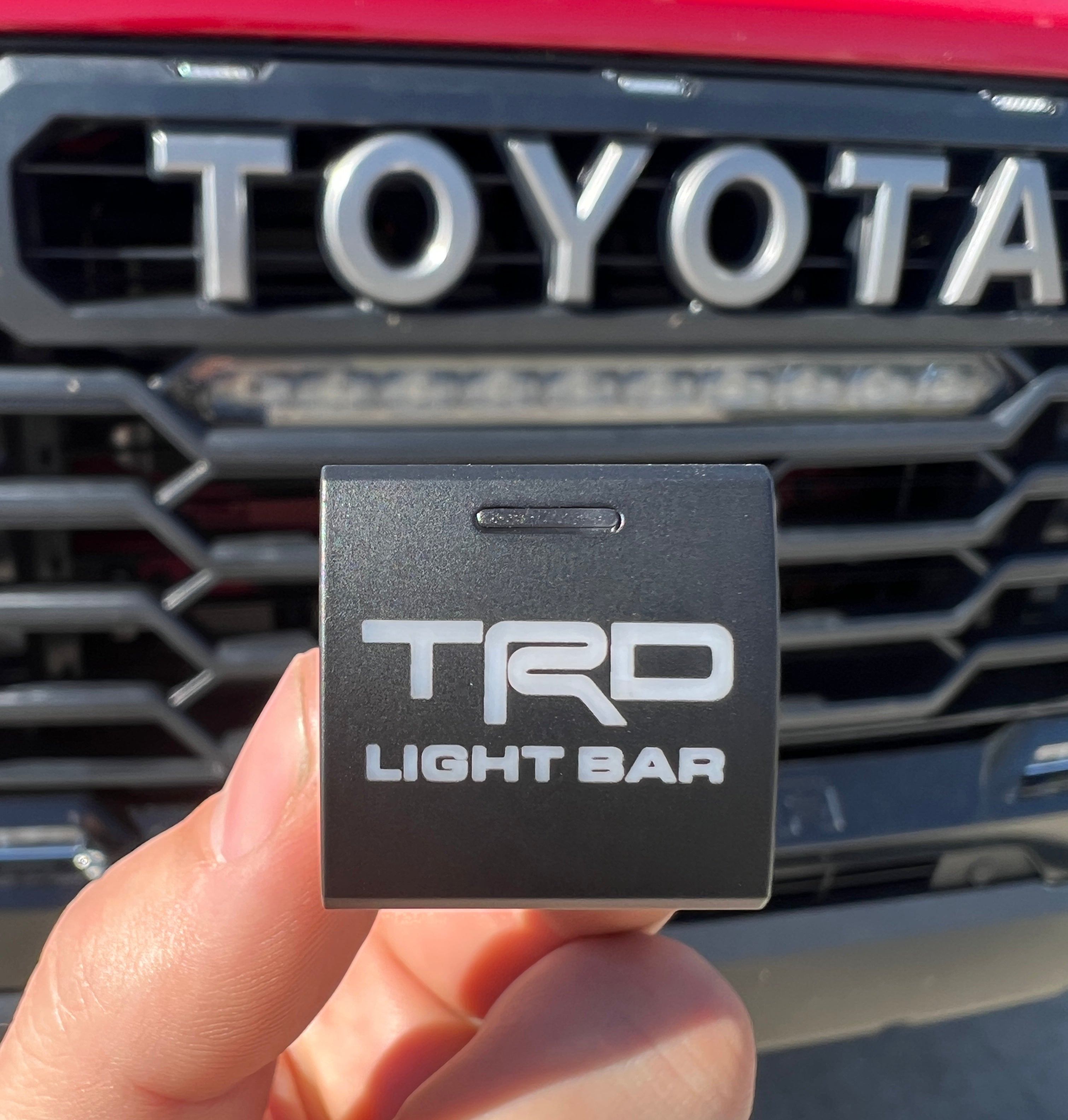

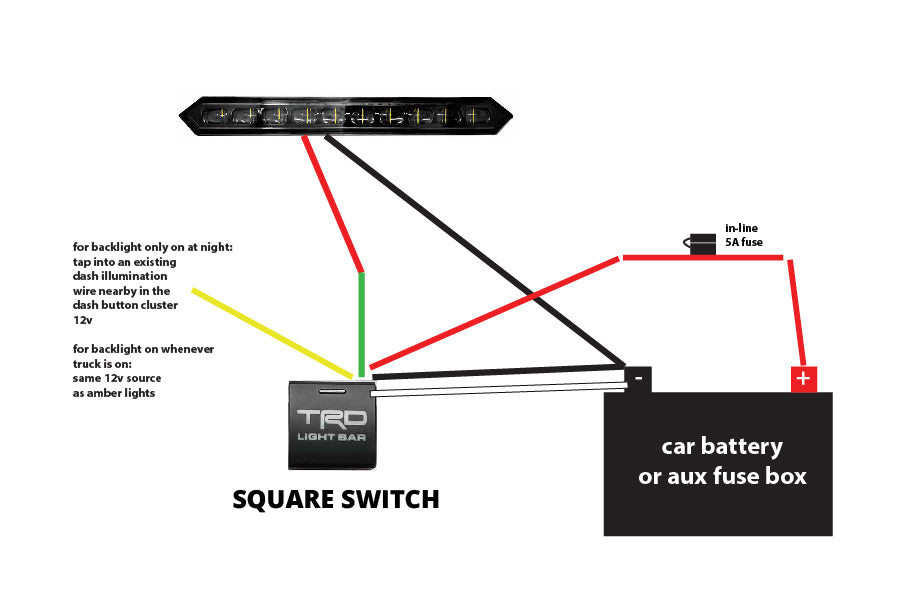

Square Pigtail Wire Guide:

Green: 12V OUT - Sends Power to Light Bar

Yellow: 12V IN - Tap into Dash Light Illumination Circuit

Red: 12V IN - Power Source

Black and White - Ground

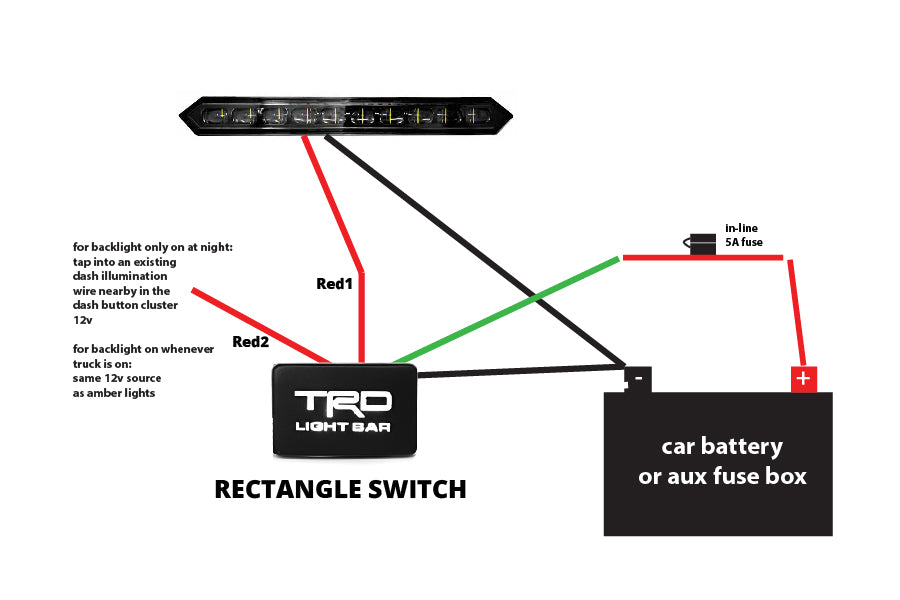

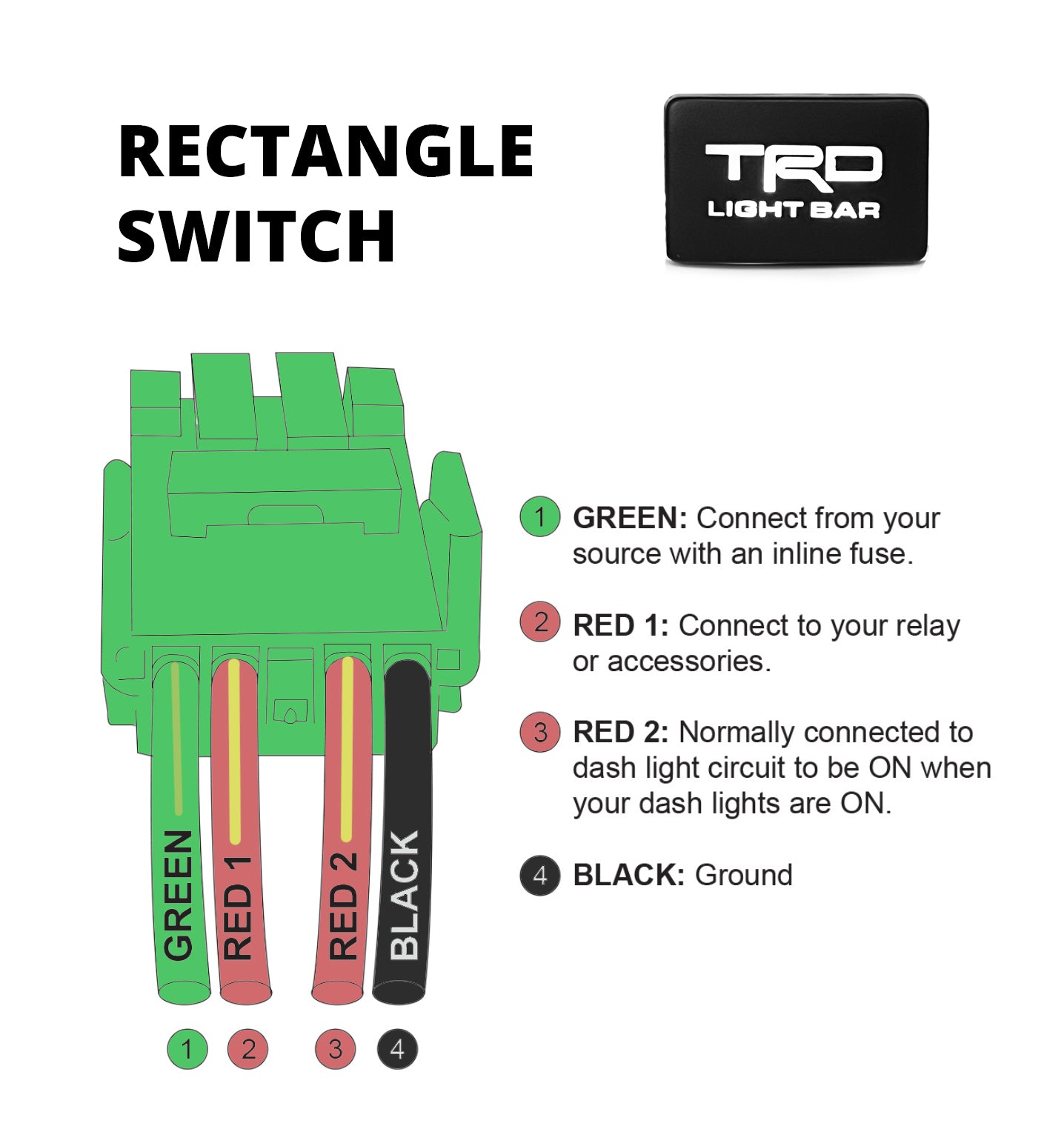

Rectangle Pigtail Wire Guide From Left to Right:

Green: 12V IN - Power Source

Red: 12V IN - Sends Power to Light Bar

Red: 12V IN - Tap into Dash Light Illumination Circuit

Black- Ground
